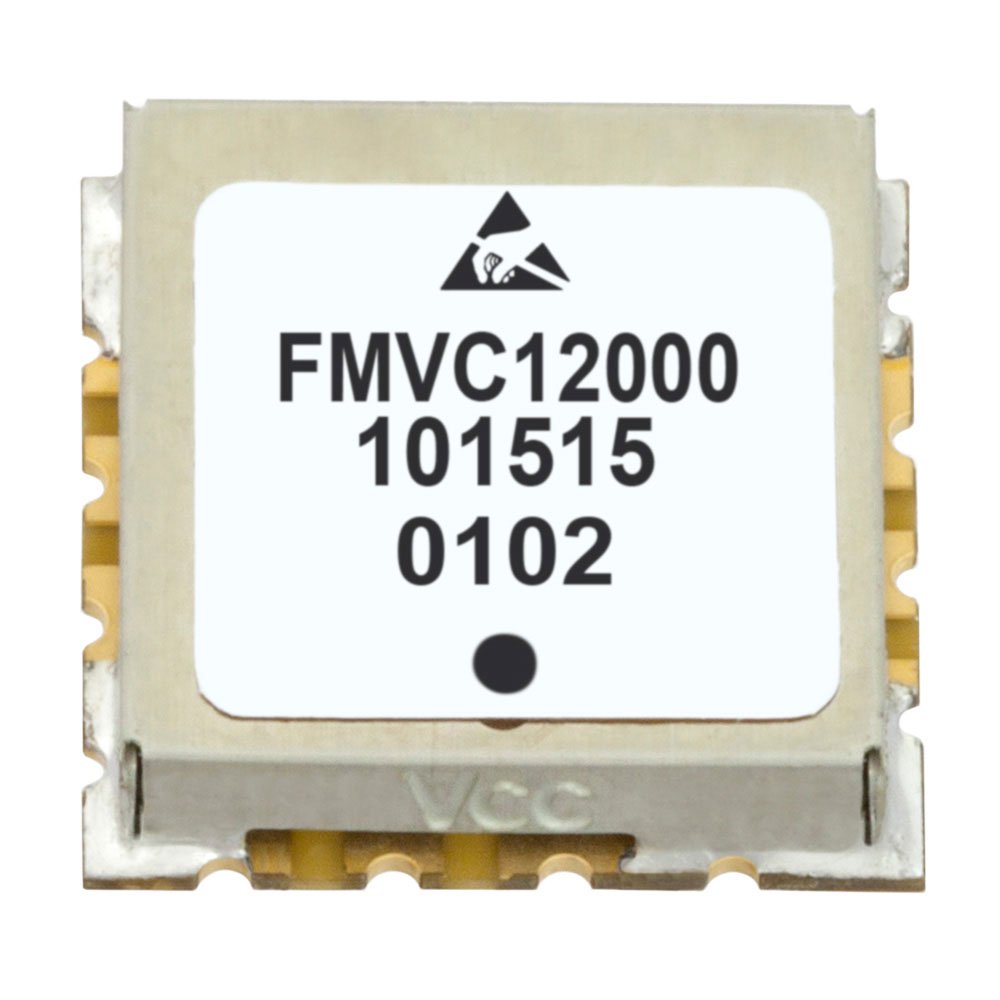

FMVC12000

$47.06

Description：VOLT CONTROL OSC 130MHZ-175MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:d78d7e77a178 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 130MHZ-175MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：130 ~ 175MHz
Frequency - Center：152.5MHz
Voltage - Supply：5V
Tuning Voltage (VDC)：0 V ~ 15 V
2nd Harmonic, Typ (dBc)：-25
Icc Max：22mA
Pushing (MHz/V)：5
Power (dBm)：6.5 -1.5, +1
Phase Noise Typ (dBc/Hz)：-125
Operating Temperature：-40°C ~ 85°C
Package / Case：16-SMD, No Lead
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height：0.126" (3.20mm)

Download product information

FMVC12000

Overview

The FMVC12000 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 130 MHz to 175 MHz and utilizes a 0.5-inch Surface Mount Technology (SMT) package. The component is characterized as a high-reliability, low-noise unit with a specified phase noise performance of -125 dBc/Hz.

Feature Summary

Low noise voltage controlled oscillator design
High reliability construction for demanding applications
Surface mount technology package format

Applications

RF signal generation systems
Communication equipment local oscillators
Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm current availability status. Ensure that the surface mount footprint dimensions and pinout configuration match the target PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a stable VCO output in the 130 MHz to 175 MHz range is required. Consider the -125 dBc/Hz phase noise specification for applications sensitive to spectral purity. Confirm compatibility with the 0.5-inch SMT mounting style during the design phase.

Part Context

This part belongs to the Fairview Microwave VCO series, designed for RF applications requiring precise frequency control. It serves as a core frequency source in systems where low phase noise and reliable operation are critical specifications for signal integrity.
