Product Detailed Parameters
- Description：VOLT CONTROL OSC 200MHZ-400MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：200 ~ 400MHz
- Frequency - Center：300MHz
- Voltage - Supply：15V
- Tuning Voltage (VDC)：0 V ~ 20 V
- 2nd Harmonic, Typ (dBc)：-14
- Icc Max：20mA
- Pushing (MHz/V)：20
- Power (dBm)：11 ±1
- Phase Noise Typ (dBc/Hz)：-106
- Operating Temperature：-40°C ~ 85°C
- Package / Case：4-SMD, Flat Leads
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.252" (6.40mm)
Download product information
Overview

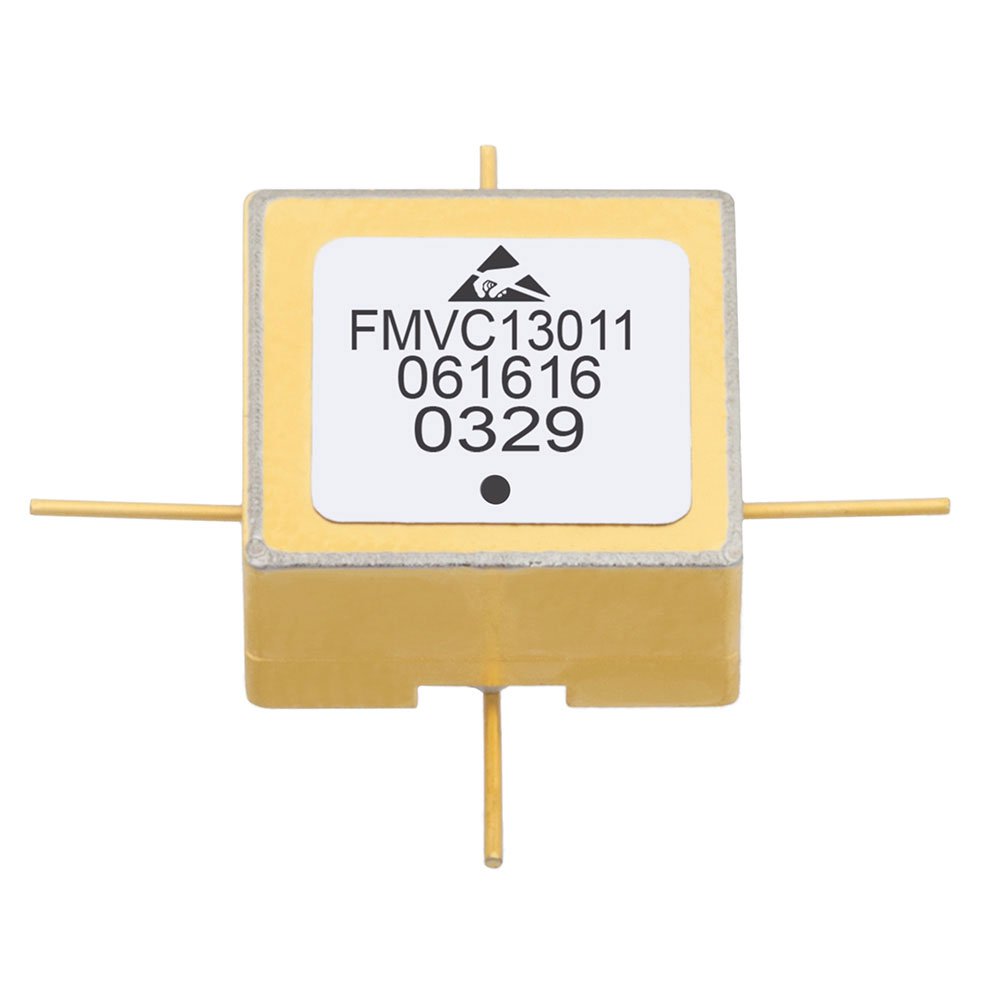

The FMVC13011 is a Voltage Controlled Oscillator manufactured by Fairview Microwave, designed for operation within the 200 MHz to 400 MHz frequency range. This component delivers an output power of 15.849 mW and features a tuning sensitivity between 8 MHz/V and 20 MHz/V. It utilizes a hermetic surface mount package with dimensions of 0.5 inches, ensuring reliable performance in demanding electronic applications requiring stable signal generation.
Feature Summary
- Hermetic surface mount construction for environmental stability
- Voltage-controlled frequency tuning capability
- Stable output power delivery across operating range
Applications
- Frequency synthesis systems
- Signal generation circuits
- Communication equipment local oscillators
Procurement Notes
Verify specific lot codes and manufacturing dates upon order confirmation. Ensure handling procedures comply with hermetic surface mount component standards. Confirm interface compatibility with target circuit board layout prior to procurement. Request updated datasheets directly from Fairview Microwave for latest revision details.
Selection Notes
Select this oscillator when a hermetic SMT solution is required for the 200-400 MHz band. Consider the 15.849 mW output level against system loss budgets. Evaluate the 8-20 MHz/V tuning sensitivity against voltage control loop requirements. Verify thermal management needs for the small form factor.
Part Context
This Voltage Controlled Oscillator belongs to Fairview Microwave's RF module portfolio. It complements other components like the FMMT3011 detector and FMAM5108F amplifier in broader RF system designs. The hermetic packaging distinguishes it from standard commercial grade oscillators, offering enhanced durability for specialized applications.
FAQ
What is the physical package type of the FMVC13011?
The FMVC13011 uses a 0.5 inch hermetic surface mount (SMT) package.
Does the FMVC13011 support frequency tuning via voltage control?
Yes, it is a Voltage Controlled Oscillator with a tuning sensitivity of 8 to 20 MHz/V.
