Product Detailed Parameters

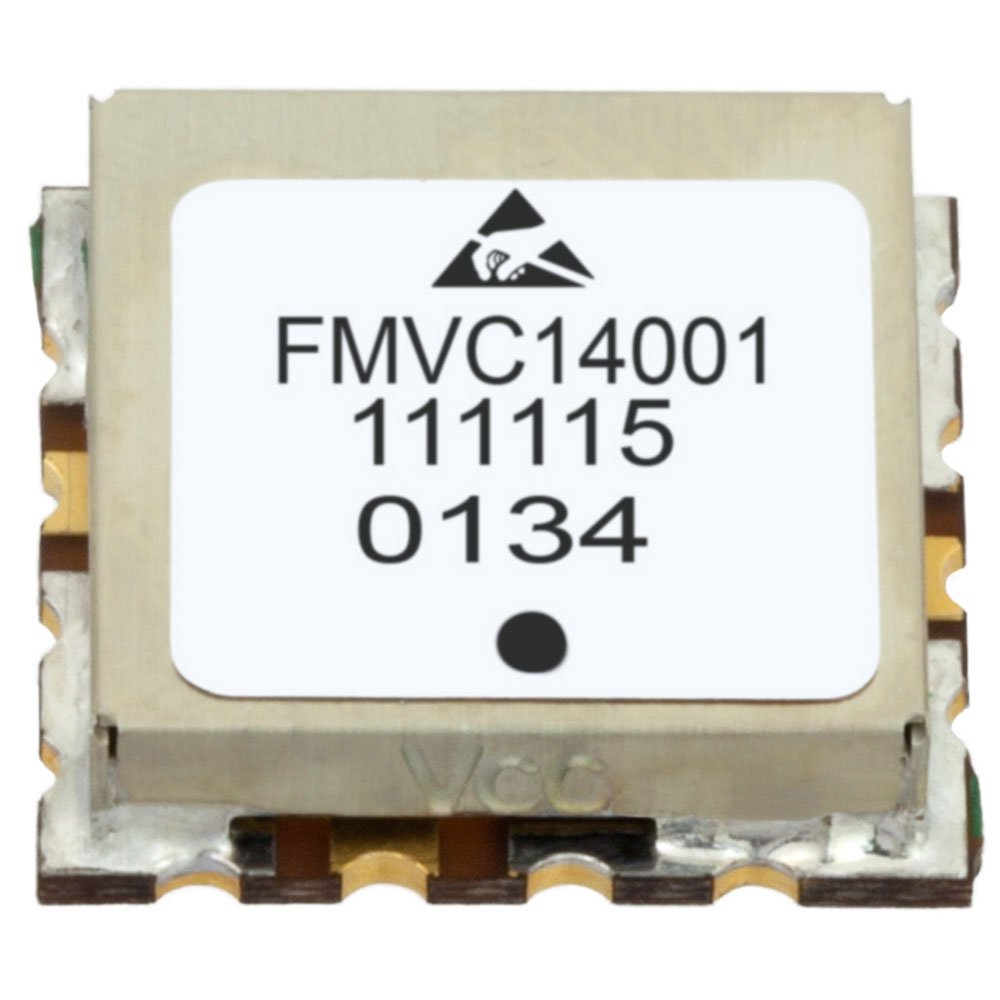

- Description：VOLT CONTROL OSC 950MHZ-1.1GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：0.95 ~ 1.1GHz
- Frequency - Center：1.025GHz
- Voltage - Supply：5V
- Tuning Voltage (VDC)：0 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-18
- Icc Max：18mA
- Pushing (MHz/V)：55
- Power (dBm)：9 ±1
- Phase Noise Typ (dBc/Hz)：-104
- Operating Temperature：-40°C ~ 85°C
- Package / Case：16-SMD, No Lead
- Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
- Height：0.126" (3.20mm)
Download product information
Overview
The FMVC14001 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 950 MHz to 1.1 GHz and features a phase noise specification of -104 dBc/Hz. The component utilizes Surface Mount Technology (SMT) with a compact 0.5-inch form factor. Designed for integration into RF systems, it provides stable signal generation capabilities suitable for applications requiring precise frequency control and low phase noise performance in a small footprint.
Feature Summary
- Voltage controlled oscillator functionality
- Surface mount technology construction
- Low phase noise performance
- Compact 0.5-inch SMT package
Applications
- RF signal generation circuits
- Communication system local oscillators
- Test and measurement equipment
- Wireless infrastructure modules
Procurement Notes
Verify the specific datasheet documentation for the FMVC14001 to confirm exact pinout configurations and electrical tolerances before integration. Ensure that the procurement source provides official manufacturer certification to guarantee component authenticity. Check for any specific handling requirements related to surface mount assembly processes. Confirm availability status through authorized distributors as supply levels may vary.
Selection Notes
Select this VCO when a 950 MHz to 1.1 GHz tuning range is required with -104 dBc/Hz phase noise. The SMT package suits automated assembly lines and space-constrained PCB designs. Evaluate power supply stability needs against the oscillator's sensitivity. Compare thermal management requirements with other available VCO options in the same frequency band.
Part Context
Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FMVC14001 belongs to their VCO oscillator series, designed for reliable signal generation. This product line supports various electronic applications requiring precise frequency control. The company emphasizes quality manufacturing standards across its extensive catalog of RF solutions.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMVC14001. Engineers should consult Fairview Microwave technical support for potential cross-reference recommendations or updated model equivalents if discontinuation occurs.
