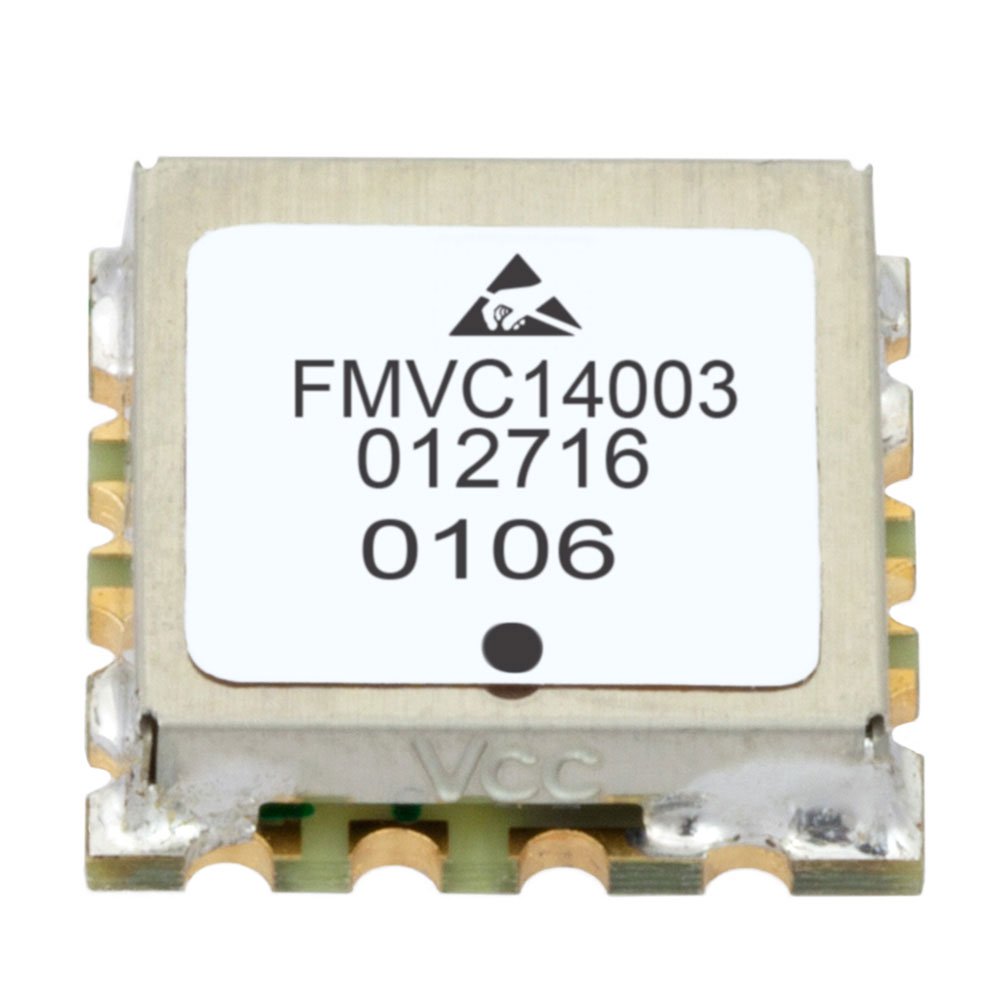

FMVC14003

Overview

The FMVC14003 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave, designed for high-frequency signal generation. It operates within a frequency range of 1.6 GHz to 3.2 GHz, providing a center frequency capability suitable for advanced RF applications. The device delivers an output power of 6.31 mW and features a tuning sensitivity between 40 MHz/V and 160 MHz/V, allowing for precise frequency control via voltage adjustments. Constructed in a compact 0.5-inch Surface Mount Technology (SMT) package, it integrates efficiently into modern circuit boards. This component serves as a critical source for stable oscillation in communication systems requiring wideband coverage.

Feature Summary

• Provides continuous frequency synthesis across the 1.6 GHz to 3.2 GHz band
• Utilizes surface mount technology for compact PCB integration
• Offers adjustable tuning sensitivity for precise frequency modulation

Applications

• Wireless communication transceivers
• Frequency synthesizer modules
• Test and measurement equipment local oscillators

Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturing specifications may evolve. Confirm that the 0.5-inch SMT footprint matches your board layout requirements. Ensure supply chain partners are authorized distributors to guarantee component authenticity. Check for any recent product change notices regarding pinout or electrical characteristics before finalizing designs.

Selection Notes

Select this VCO when a wide tuning range from 1.6 GHz to 3.2 GHz is required in a small form factor. Consider the 6.31 mW output power against your system's noise floor and gain requirements. Evaluate the tuning sensitivity range to ensure compatibility with your control voltage drivers. Compare thermal performance and phase noise specifications against alternative models if strict spectral purity is mandated.

Part Context

This component belongs to Fairview Microwave's portfolio of voltage-controlled oscillators, which are essential active devices for generating tunable RF signals. Unlike fixed-frequency crystals, VCOs allow dynamic frequency adjustment, making them vital for software-defined radio and agile communication systems. The FMVC14003 specifically targets applications needing broad bandwidth coverage in a standardized surface-mount package.
