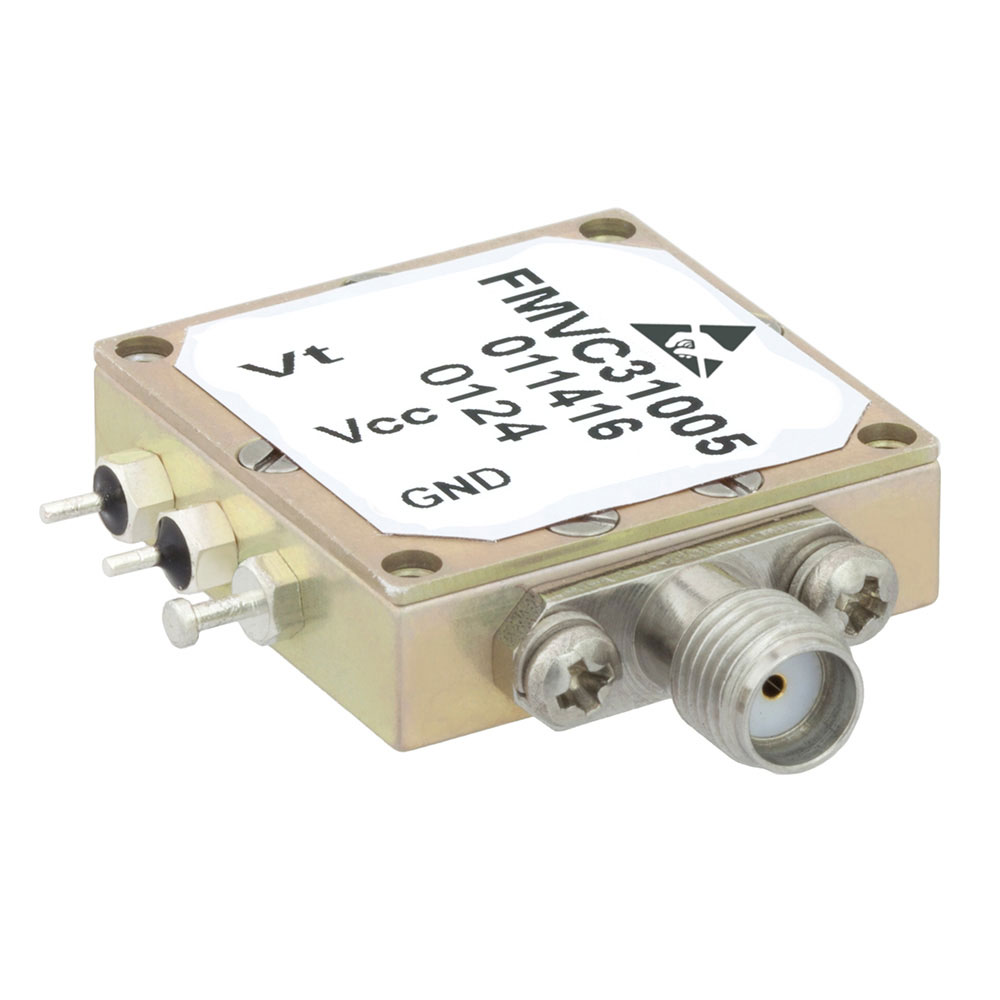

FMVC31005

$404.66

Description：VOLT CONTROL OSC 50MHZ-100MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:f0b3fde8c9c5 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 50MHZ-100MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：50 ~ 100MHz
Frequency - Center：75MHz
Voltage - Supply：15V
Tuning Voltage (VDC)：0.5 V ~ 20 V
2nd Harmonic, Typ (dBc)：-12
Icc Max：22mA
Pushing (MHz/V)：5
Power (dBm)：12 ±2
Phase Noise Typ (dBc/Hz)：-115
Operating Temperature：-40°C ~ 85°C
Package / Case：Module, SMA Connectors
Size / Dimension：0.949" L x 0.949" W (24.10mm x 24.10mm)
Height：0.285" (7.24mm)

Download product information

FMVC31005

Overview

The FMVC31005 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 50 MHz to 100 MHz and features an SMA connector interface. The component exhibits a phase noise specification of -115 dBc/Hz, indicating high spectral purity for signal generation applications.

Feature Summary

Voltage controlled oscillator design
SMA connector interface
High spectral purity performance

Applications

Signal generation systems
Frequency synthesis circuits
RF test equipment

Procurement Notes

Verify the specific SMA connector gender and polarity requirements against system interface specifications. Confirm that the operating temperature range aligns with environmental conditions. Ensure power supply voltage levels match the datasheet recommendations for stable oscillation.

Selection Notes

Select this VCO when a fixed frequency range between 50 MHz and 100 MHz is required. Consider the phase noise specification for applications sensitive to signal integrity. Evaluate the SMA interface compatibility with existing board layouts and interconnects.

Part Context

Fairview Microwave provides on-demand RF and microwave components. This VCO belongs to their line of signal generation devices, supporting various electronic testing and communication system architectures requiring precise frequency control.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for direct equivalents or functional replacements within the same frequency band.
