Product Detailed Parameters
- Description：VOLT CONTROL OSC 230MHZ-290MHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：230 ~ 290MHz
- Frequency - Center：260MHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-8.5
- Icc Max：15mA (Typ)
- Pushing (MHz/V)：22
- Power (dBm)：2 ±2
- Phase Noise Typ (dBc/Hz)：-107
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.583" (14.81mm)
Download product information
Overview

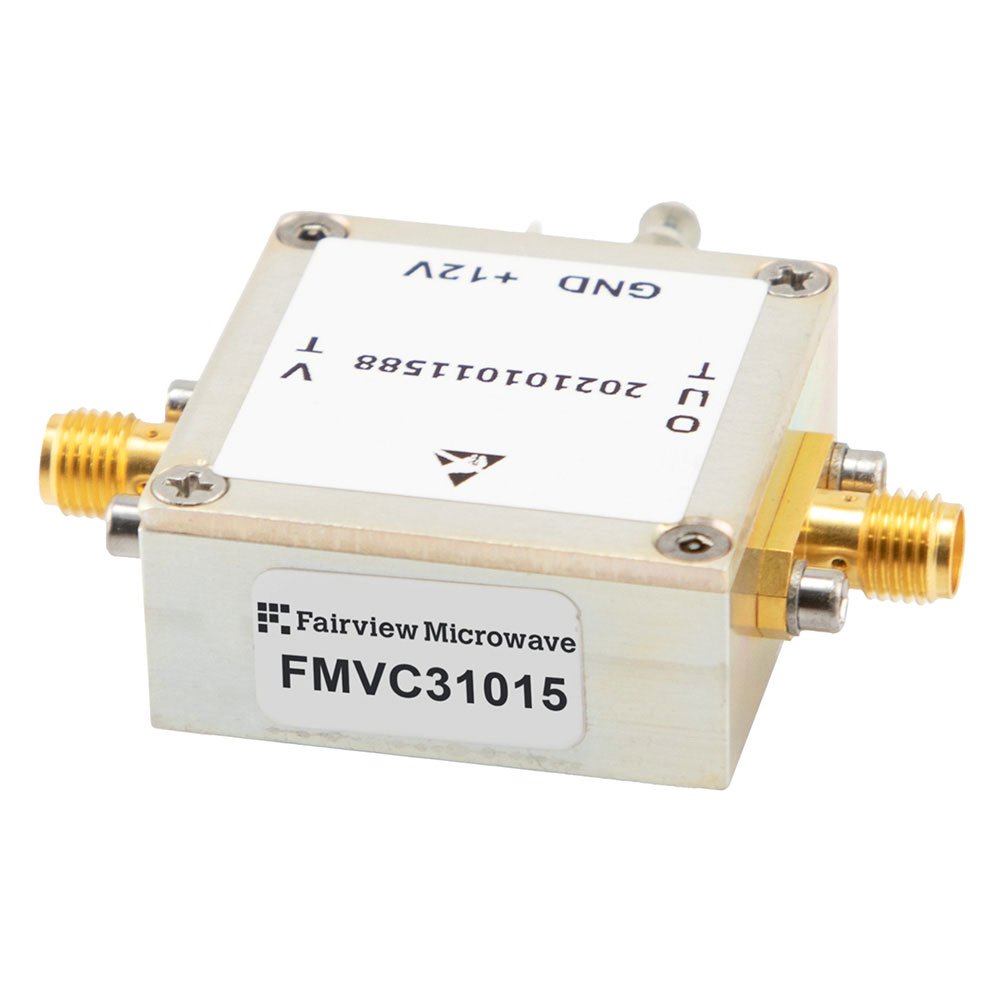

The FMVC31015 is a voltage-controlled oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 230 MHz to 290 MHz, providing a center frequency of 260 MHz. The device delivers an output power of +2 dBm and exhibits a phase noise of -107 dBc/Hz. Frequency tuning is achieved via a voltage range of 0.5 V to 4.5 V. The component utilizes SMA connectors for interface connections.
Feature Summary
- Voltage-controlled operation with specified tuning voltage range
- Fixed output power level at designated operating frequencies
- Defined phase noise performance characteristics
- SMA connector interface configuration
Applications
- Frequency synthesis systems requiring stable local oscillators
- Communication equipment needing precise frequency generation
- Test and measurement instrumentation applications
- Radio frequency signal source modules
Procurement Notes
Verify the specific datasheet version and electrical test conditions prior to integration. Confirm that the tuning voltage requirements align with available control circuitry. Ensure SMA connector compatibility with system interconnects. Review thermal management needs for continuous operation at specified output power levels.
Selection Notes
Select this component when a fixed frequency range between 230 MHz and 290 MHz is required. Consider the +2 dBm output power capability for direct drive applications. Evaluate the -107 dBc/Hz phase noise against system sensitivity requirements. Verify that the 0.5 V to 4.5 V tuning range matches the available control voltage supply.
Part Context
This voltage-controlled oscillator belongs to Fairview Microwave's RF module portfolio. It serves as a core frequency generation element in wireless communication architectures. The design supports applications requiring stable, tunable signals within the UHF band. Integration typically involves connecting the tuning port to a control voltage source.
Replacement Considerations
No public confirmed substitute part numbers are available in official documentation.
FAQ
What is the tuning voltage range for the FMVC31015?
The tuning voltage range is 0.5 V to 4.5 V.
What is the output power specification?
The output power is +2 dBm.
Does the FMVC31015 use SMA connectors?
Yes, the component features SMA connectors for its interfaces.
