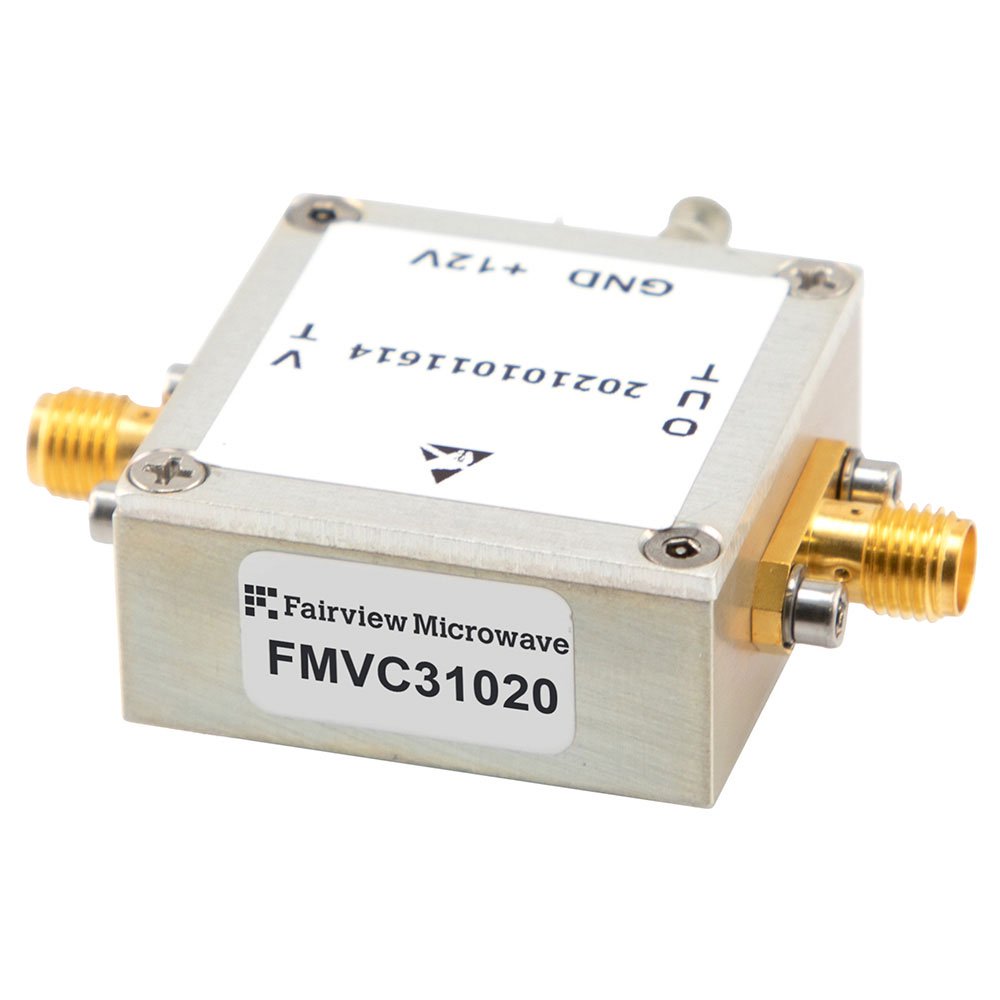

FMVC31020

$497.48

Description：VOLT CONTROL OSC 1.07GHZ-1.21GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:98a38057d508 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：VOLT CONTROL OSC 1.07GHZ-1.21GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：1.07 ~ 1.21GHz
Frequency - Center：1.14GHz
Voltage - Supply：12V
Tuning Voltage (VDC)：0.5 V ~ 4.5 V
2nd Harmonic, Typ (dBc)：-16
Icc Max：20mA (Typ)
Pushing (MHz/V)：37
Power (dBm)：1.5 ±2.5
Phase Noise Typ (dBc/Hz)：-109
Operating Temperature：-40°C ~ 85°C
Package / Case：Module, SMA Connectors
Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
Height：0.583" (14.81mm)

Download product information

FMVC31020

Overview

The FMVC31020 is a voltage-controlled oscillator manufactured by Fairview Microwave. It operates within a frequency range of 1070 MHz to 1210 MHz. The device provides an output power of +1.5 dBm and exhibits a phase noise specification of -109 dBc/Hz. It supports a tuning voltage range from 0.5V to 4.5V. The component utilizes SMA connectors for signal interface.

Feature Summary

Voltage-controlled operation with specified tuning range
Integrated phase noise performance at designated frequencies
SMA connector interface for RF signal transmission

Applications

RF signal generation circuits
Frequency synthesis systems
Communication equipment local oscillators

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm electrical parameters and mechanical dimensions. Ensure compatibility with system voltage requirements and connector types before integration. Cross-reference official specifications for environmental ratings and operational limits.

Selection Notes

Consider the required frequency stability and phase noise performance for the target application. Evaluate the tuning linearity and control voltage sensitivity. Assess thermal management requirements based on the output power level and operating environment constraints.

Part Context

This component belongs to the Fairview Microwave VCO Oscillators category. It is designed for applications requiring stable frequency generation within the L-band spectrum. The product integrates active components with passive elements to achieve specified RF performance characteristics.
