Product Detailed Parameters
- Description：VOLT CONTROL OSC 1.435GHZ-1.65GH
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：1.435 ~ 1.65GHz
- Frequency - Center：1.5425GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 5 V
- 2nd Harmonic, Typ (dBc)：-7
- Icc Max：15mA (Typ)
- Pushing (MHz/V)：80
- Power (dBm)：7 ±2
- Phase Noise Typ (dBc/Hz)：-90
- Operating Temperature：-40°C ~ 70°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.583" (14.81mm)
Download product information
Overview

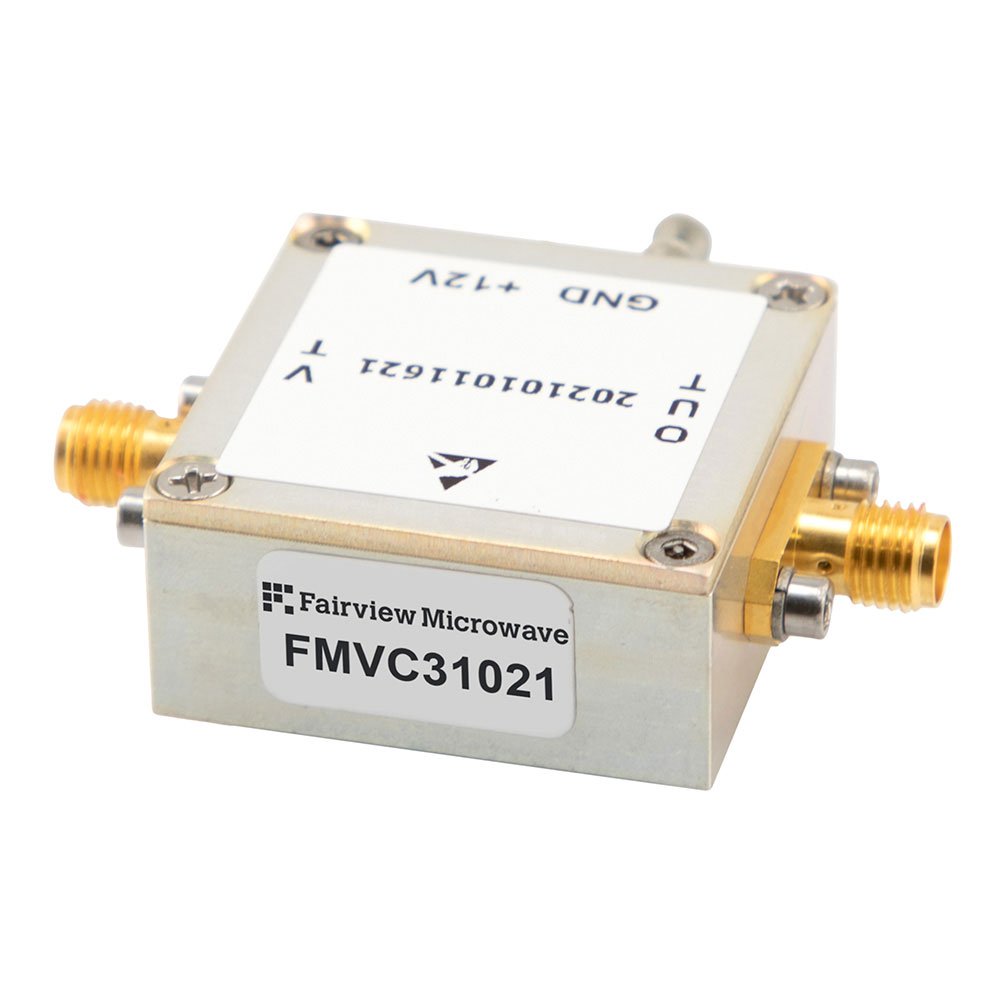

The FMVC31021 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 1.435 GHz to 1.65 GHz. The device utilizes a tuning voltage range from 0.5 V to 5.0 V. It provides an output power of 7 dBm. The unit features low phase noise characteristics, specified at 90 dBc/Hz. The component is designed for reliable performance in RF applications requiring precise frequency control.
Feature Summary
- Voltage controlled operation across the 1.435 GHz to 1.65 GHz band
- Low phase noise specification for signal purity
- Standard SMA connector interface
- Wide tuning voltage range from 0.5 V to 5.0 V
Applications
- Frequency synthesis systems
- Wireless communication transceivers
- Test and measurement equipment
- Signal generation modules
Procurement Notes
Verify the specific datasheet version for the FMVC31021 to confirm pinout configurations and mechanical dimensions prior to integration. Ensure that the supply voltage and tuning voltage limits are strictly adhered to during circuit design. Cross-reference the manufacturer's official documentation for any updates regarding RoHS compliance or material declarations. Confirm compatibility with the intended PCB layout and thermal management requirements.
Selection Notes
Select the FMVC31021 when a stable oscillator source is required between 1.435 GHz and 1.65 GHz. Consider this component for designs needing a 7 dBm output level with minimal phase noise degradation. Evaluate the 0.5 V to 5.0 V tuning range against the available control voltage headroom in the system. Ensure the SMA interface aligns with the existing interconnect infrastructure.
Part Context
Fairview Microwave specializes in high-quality RF and microwave components, including connectors, cables, and active modules. The FMVC31021 belongs to their VCO oscillator product category. This series supports various wireless and test applications requiring precise frequency agility. The manufacturer emphasizes reliability and consistent performance across their active component lineup.
