Product Detailed Parameters
- Description：VOLT CONTROL OSC 1.55GHZ-1.85GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：1.55 ~ 1.85GHz
- Frequency - Center：1.7GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.25 V ~ 4.75 V
- 2nd Harmonic, Typ (dBc)：-20
- Icc Max：15mA (Typ)
- Pushing (MHz/V)：85
- Power (dBm)：1.5 ±3.5
- Phase Noise Typ (dBc/Hz)：-99
- Operating Temperature：-40°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.583" (14.81mm)
Download product information
Overview

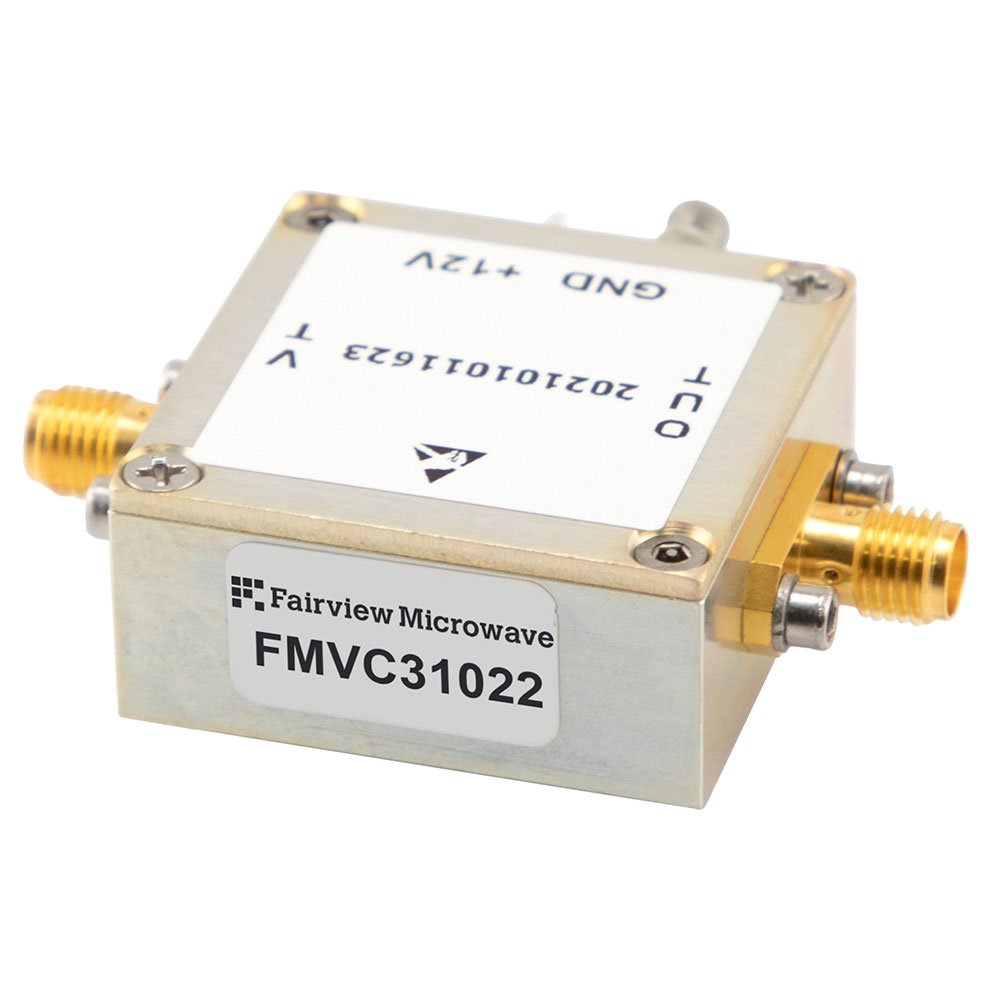

The FMVC31022 is a Voltage Controlled Oscillator manufactured by Fairview Microwave. It operates within a frequency range of 1.55 GHz to 1.85 GHz. The output power ranges from -2 dBm to 5 dBm. Tuning sensitivity is specified at 85 MHz/V.
Feature Summary
- Voltage controlled oscillator design
- Frequency range of 1.55 to 1.85 GHz
- Output power between -2 and 5 dBm
- Tuning sensitivity of 85 MHz/V
Applications
- RF signal generation
- Communication systems
- Test and measurement equipment
Procurement Notes
Verify the specific part number FMVC31022 with the manufacturer or authorized distributors to confirm current availability and lead times. Ensure that the voltage control characteristics and frequency range meet the specific requirements of the intended application before procurement.
Selection Notes
Select this component when a VCO with a 1.55-1.85 GHz range is required. Consider the output power level of -2 to 5 dBm and the tuning sensitivity of 85 MHz/V for system integration. Verify compatibility with existing circuit designs and voltage supply requirements.
Part Context
Fairview Microwave produces RF components including cable assemblies and oscillators. The FMVC31022 belongs to their VCO product line, providing tunable frequency generation capabilities for various electronic applications.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Fairview Microwave or authorized distributors for potential equivalent components if this part is unavailable.
FAQ
What is the operating frequency range of the FMVC31022?
The FMVC31022 operates in the frequency range of 1.55 GHz to 1.85 GHz.
What is the tuning sensitivity of the FMVC31022?
The tuning sensitivity is specified as 85 MHz/V.
