Product Detailed Parameters
- Description：VOLT CONTROL OSC 2.165GHZ-2.36GH
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：2.165 ~ 2.36GHz
- Frequency - Center：2.2625GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 10 V
- 2nd Harmonic, Typ (dBc)：-10
- Icc Max：25mA (Typ)
- Pushing (MHz/V)：56
- Power (dBm)：5 ±3
- Phase Noise Typ (dBc/Hz)：-99
- Operating Temperature：-40°C ~ 80°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.583" (14.81mm)
Download product information
Overview

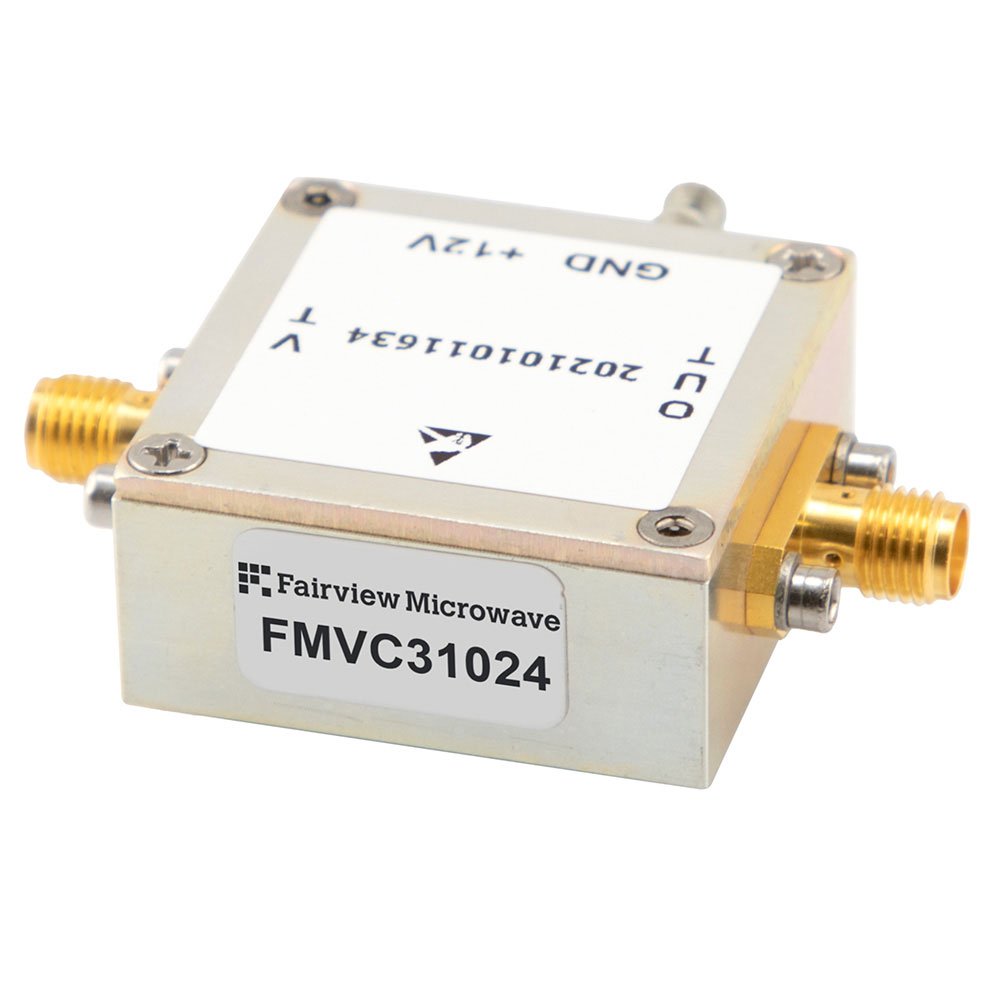

The FMVC31024 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 2.165 GHz to 2.36 GHz, with a center frequency specification of 2.2625 GHz. The device utilizes a tuning voltage range from 0.5 V to 10 V. It provides an output power of +5 dBm and exhibits a typical second harmonic level of -10 dBc. The component features phase noise performance of -99 dBc/Hz.
Feature Summary
- Voltage-controlled operation across a defined microwave frequency band
- Integrated output stage delivering specified RF power levels
- Tuning capability via analog voltage input signal
Applications
- Microwave signal generation systems
- Frequency synthesis circuits
- Communication equipment local oscillators
Procurement Notes
Verify the specific datasheet version for the FMVC31024 to confirm electrical tolerances and pinout configurations before integration. Ensure that the supply chain source provides authentic components from Fairview Microwave to guarantee performance reliability. Cross-reference the tuning voltage requirements with the system control interface to ensure compatibility.
Selection Notes
Select this VCO when a stable output in the 2.165 GHz to 2.36 GHz range is required. Consider the +5 dBm output power and -99 dBc/Hz phase noise specifications against system sensitivity requirements. Evaluate the 0.5 V to 10 V tuning range compatibility with available control voltages in the design architecture.
Part Context
Fairview Microwave specializes in high-quality RF, microwave, and mmWave components. The FMVC31024 belongs to their VCO oscillator product category, designed for applications requiring precise frequency control. This component supports various wireless and test measurement applications where reliable signal generation is critical.
Replacement Considerations
No public substitute part numbers are documented for the FMVC31024. Designers should verify if alternative VCOs meet the identical frequency, power, and phase noise specifications if sourcing becomes unavailable.
