FMVC31025

Overview

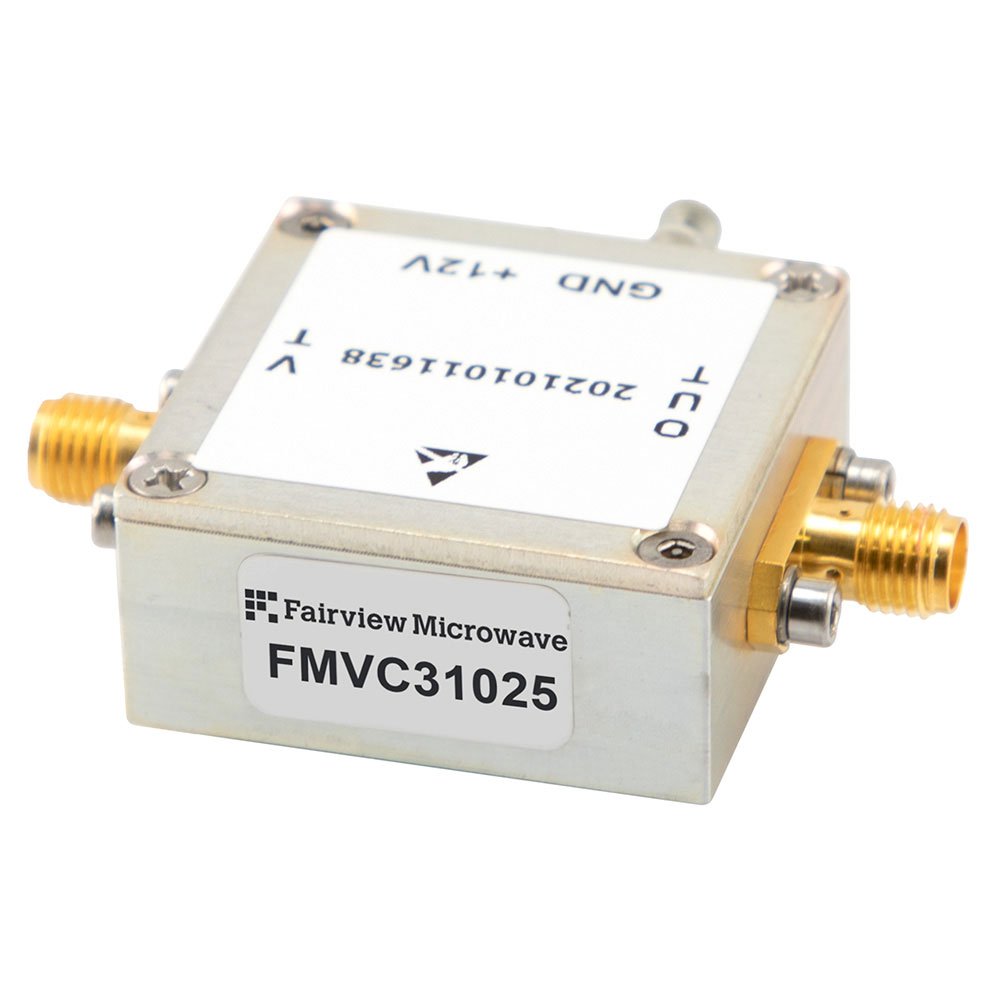

The FMVC31025 is a voltage-controlled oscillator (VCO) manufactured by Fairview Microwave. It operates within a frequency range of 2300 MHz to 2450 MHz and delivers an output power of +3 dBm. The device features a phase noise specification of -101 dBc/Hz. It utilizes a tuning voltage range of 0.5 V to 4.5 V for frequency adjustment. The component is equipped with SMA connectors for interface connectivity.

Feature Summary

• Provides stable microwave signal generation across the specified frequency band
• Features low phase noise characteristics for signal purity
• Supports electronic frequency tuning via variable voltage input

Applications

• Microwave communication systems
• Signal generation circuits
• Frequency synthesis applications

Procurement Notes

Verify the specific connector type and mounting requirements against system specifications before procurement. Confirm that the operating temperature range and supply voltage align with the target application environment. Ensure compatibility with the control circuitry required to manage the 0.5 V to 4.5 V tuning range effectively.

Selection Notes

Select this component when a compact VCO solution is needed for the 2.3 GHz to 2.45 GHz range. Consider the +3 dBm output power and -101 dBc/Hz phase noise as key performance indicators. Evaluate the SMA interface compatibility and the linear tuning voltage requirement for integration into the design.

Part Context

This voltage-controlled oscillator is part of Fairview Microwave's portfolio of RF and microwave components. It serves as a critical active element for generating tunable signals in high-frequency applications, complementing passive components like couplers and cables offered by the manufacturer.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Engineers should verify pinout, electrical parameters, and mechanical dimensions when considering alternative VCO models from other manufacturers.
