FMVC31026

Overview

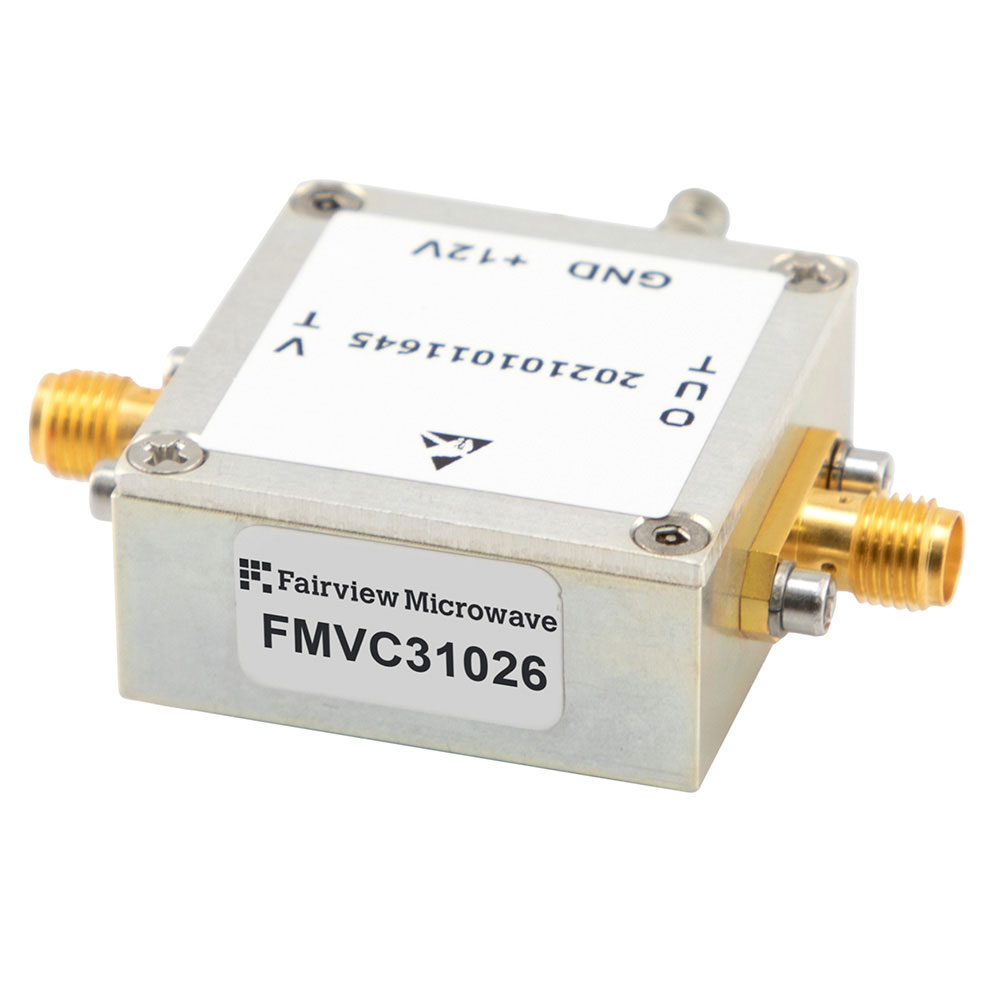

The FMVC31026 is a voltage-controlled oscillator manufactured by Fairview Microwave. It operates within a frequency range of 2.4 GHz to 2.8 GHz. The output power ranges from 6 dBm to 13 dBm. The tuning sensitivity is specified as 80 MHz/V. The device requires a tuning voltage range between 1 V and 11 V for operation.

Feature Summary

• Voltage-controlled frequency generation
• Wide tuning voltage input capability
• High tuning sensitivity specification

Applications

• Frequency synthesis systems
• Signal generation modules
• Communication transceivers

Procurement Notes

Verify the specific datasheet version for the FMVC31026 to confirm pinout configurations and electrical tolerances. Ensure that the supply voltage and tuning voltage limits align with system requirements before integration. Cross-reference the manufacturer's official documentation for any updates regarding RoHS compliance or environmental operating conditions.

Selection Notes

Select this component when a stable output in the 2.4 GHz to 2.8 GHz band is required. Consider the 80 MHz/V tuning sensitivity for control loop design. Evaluate the 6 dBm to 13 dBm output power against downstream amplifier needs. Confirm compatibility with the 1 V to 11 V tuning voltage interface.

Part Context

This voltage-controlled oscillator belongs to Fairview Microwave's active RF component portfolio. It serves as a core frequency source for systems requiring precise electronic frequency adjustment. The device integrates oscillation circuitry into a compact form factor suitable for embedded RF applications.

Replacement Considerations

No public substitute part numbers are confirmed in the provided data.
