Product Detailed Parameters

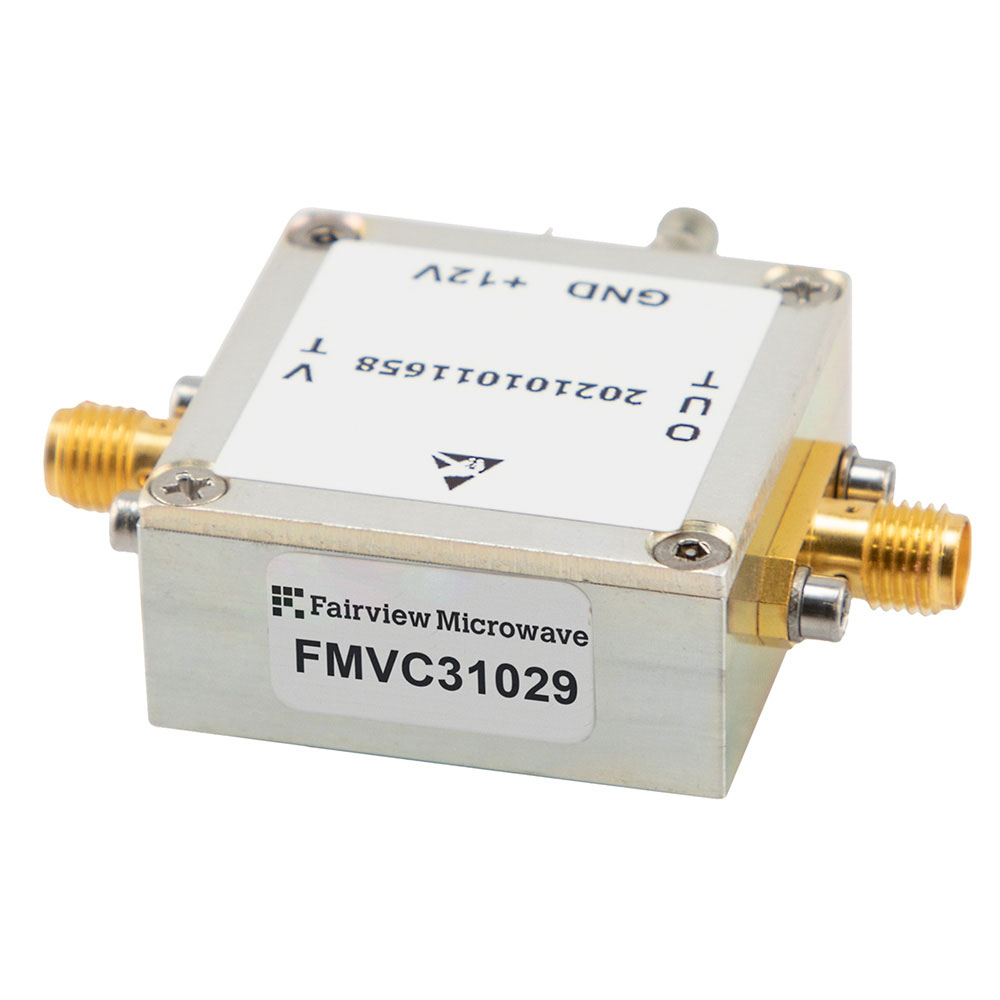

- Description：VOLT CONTROL OSC 5.22GHZ-5.42GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency Range：5.22 ~ 5.42GHz
- Frequency - Center：5.32GHz
- Voltage - Supply：12V
- Tuning Voltage (VDC)：0.5 V ~ 4.5 V
- 2nd Harmonic, Typ (dBc)：-25
- Icc Max：15mA (Typ)
- Pushing (MHz/V)：108
- Power (dBm)：-1 ±3
- Phase Noise Typ (dBc/Hz)：-83
- Operating Temperature：-30°C ~ 85°C
- Package / Case：Module, SMA Connectors
- Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
- Height：0.583" (14.81mm)
