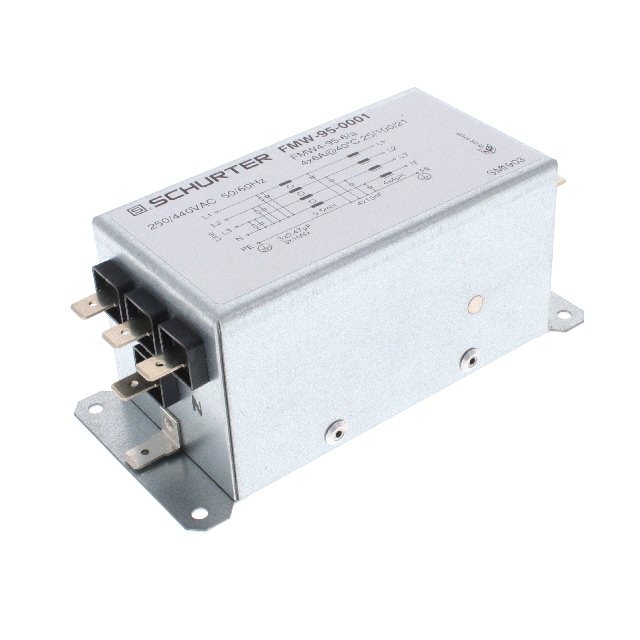

FMW-95-0001 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 250V/440VAC 6A CHASS. Review the specifications below when checking this part for your BOM.
Power Line Filter Modules specifications for FMW-95-0001
- Description：LINE FILTER 250V/440VAC 6A CHASS
- Series：FMW4-81(95)
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V, 440V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：ENEC, VDE
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：L1 - 500µH, L2 - 4µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Power Line Filter Modules datasheet and documents for FMW-95-0001
Power Line Filter Modules Overview
The FMW-95-0001 is a three-phase EMC/EMI power line filter manufactured by Schurter Inc. It features a compact two-stage design intended for systems with neutral conductors. The unit supports voltage ratings of 250 VAC and 440 VAC with a current rating of 6 A. Key electrical specifications include a leakage current of 0.07 mA and quick-connect terminals measuring 6.3 x 0.8 mm for phase, neutral, and ground connections.
Power Line Filter Modules Feature Summary
- Provides very high symmetrical and asymmetrical attenuation loss for effective noise suppression
- Utilizes a compact two-stage filter architecture designed specifically for three-phase systems
- Includes dedicated connections for the neutral conductor alongside phase lines
Power Line Filter Modules Applications
- Three-phase industrial equipment requiring EMI filtering
- Systems utilizing neutral conductors in three-phase configurations
- Applications demanding high symmetrical and asymmetrical attenuation
Power Line Filter Modules Procurement Notes
Verify that the required terminal type matches the specified 6.3 x 0.8 mm quick-connect style. Confirm the system operates within the 250 VAC to 440 VAC range and does not exceed the 6 A current rating. Ensure compatibility with three-phase architectures including neutral conductors before procurement.
Power Line Filter Modules Selection Notes
Select this component when a compact solution for three-phase noise reduction is required. It is suitable for environments needing high attenuation performance for both symmetrical and asymmetrical interference. Verify that the chassis mount configuration fits the available space and that the terminal spacing aligns with the wiring harness.
Power Line Filter Modules Part Context
This part belongs to the FMW series of power line filters from Schurter. It is categorized under EMC/EMI filters and is distinct from single-phase variants or other series within the manufacturer's portfolio. The specific model number identifies the three-phase configuration with neutral capability.
Power Line Filter Modules Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official Schurter resources for cross-reference data.
