Product Detailed Parameters
- Description：WG TERMINATION WR-15 50-75 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：50GHz ~ 75GHz
- RF Type：General Purpose
- Secondary Attributes：1W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

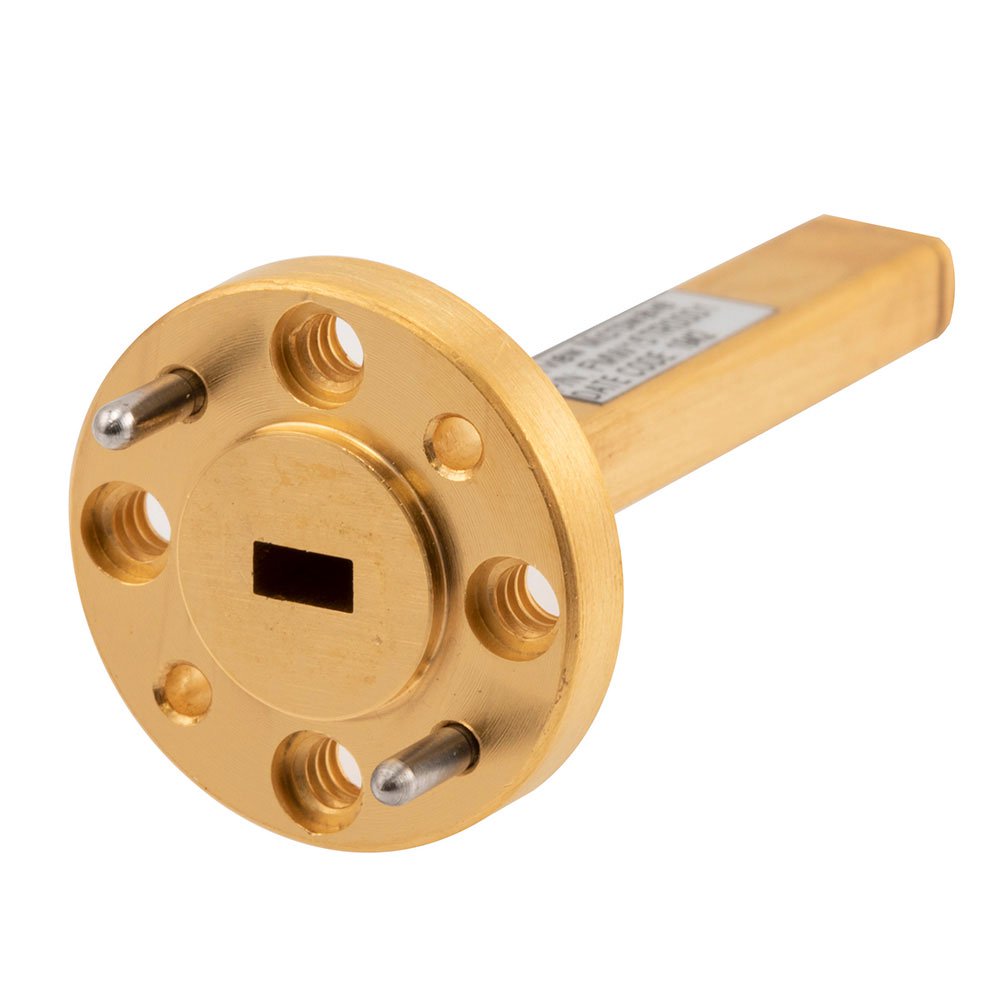

The FMW15TR0001 is an instrumentation-grade WR-15 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 50 GHz to 75 GHz and supports an average power handling capacity of 1 Watt. The component features a round flange design compliant with MIL-DTL-85 standards, ensuring mechanical compatibility with standard WR-15 waveguide interfaces. This general-purpose RF IC termination module provides reliable signal absorption for high-frequency applications.
Feature Summary
- Provides effective signal termination within the 50 GHz to 75 GHz frequency spectrum
- Features a round flange design adhering to MIL-DTL-85 specifications
- Supports 1 Watt average power handling for stable operation
Applications
- Precision measurements in laboratory environments
- Prototyping and characterization of microwave components
- Production systems requiring standardized waveguide loads
- General instrumentation applications
Procurement Notes
Verify the specific WR-15 interface requirements against your system's waveguide dimensions before procurement. Confirm that the 1 Watt average power rating aligns with your operational thermal constraints. Ensure the round flange configuration matches existing mounting hardware. Review the official datasheet for detailed mechanical drawings and electrical performance curves to guarantee integration compatibility.
Selection Notes
Select this component when a fixed load is required for the 50-75 GHz band. Consider the MIL-DTL-85 round flange form factor for standard waveguide compatibility. Evaluate the 1 Watt power limit against peak and average signal levels. Compare against other waveguide terminations if higher power or different frequency ranges are needed.
Part Context
This part belongs to Fairview Microwave's family of high-performance waveguide loads designed for millimeter-wave frequencies. It serves as a passive component for absorbing reflected signals in test setups. The product line emphasizes precision and reliability for professional RF engineering tasks.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify mechanical fit and electrical specs if sourcing alternatives from other manufacturers.
