FMW187TR1001

Overview

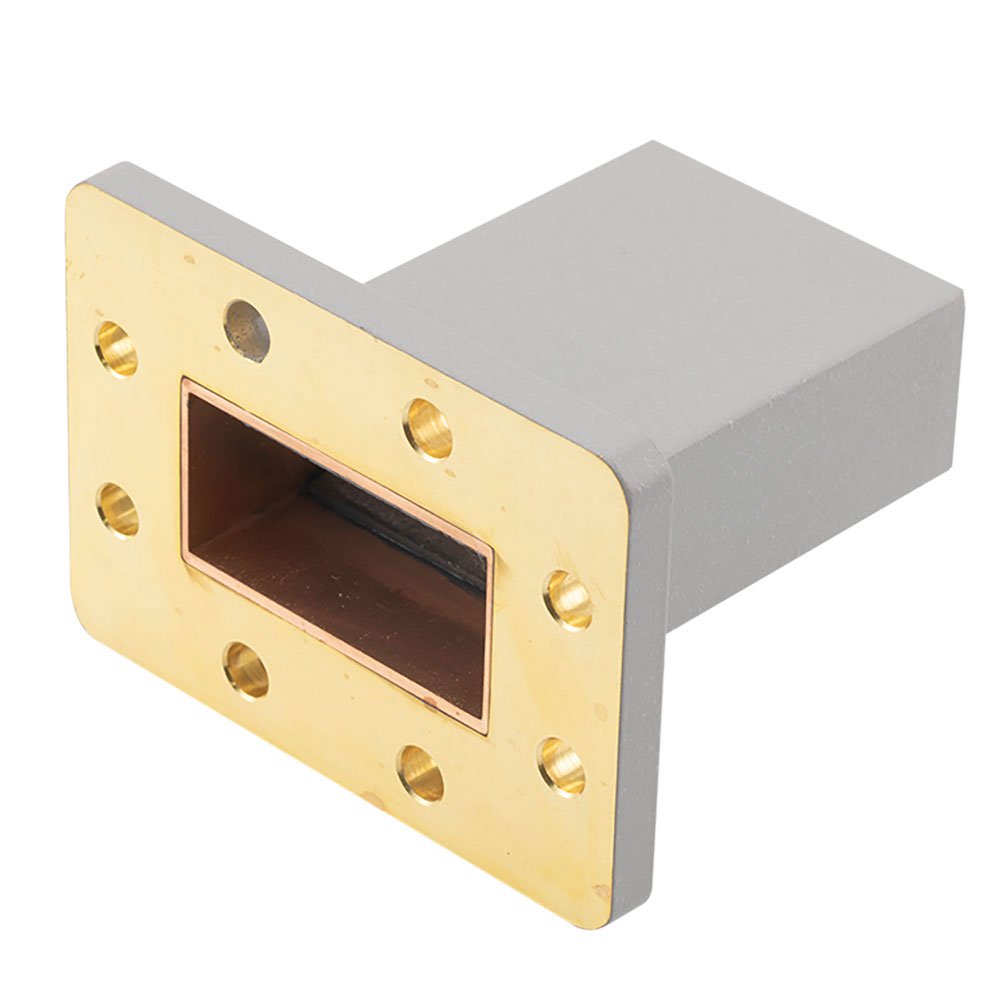

The FMW187TR1001 is a precision WR-187 waveguide termination manufactured by Fairview Microwave. It is designed to absorb RF energy within the frequency range of 4.4 GHz to 5 GHz. The component features a brass body and utilizes a CPR-187F flange configuration for secure mounting. It supports an average power handling capacity of 70 Watts, ensuring reliable performance in high-power applications. This termination provides a stable load for waveguide systems operating in the specified band.

Feature Summary

• Constructs a stable RF load using a brass body material for durability and thermal management.
• Utilizes a CPR-187F flange configuration to ensure precise alignment and secure mechanical connection.
• Designed specifically for WR-187 waveguide systems to maintain impedance consistency.

Applications

• Waveguide system testing and measurement setups
• High-power RF signal absorption and termination
• Radar and communication equipment load matching

Procurement Notes

Verify that the application environment does not exceed the 70 Watt average power rating or the 5 GHz maximum frequency limit. Confirm compatibility with the CPR-187F flange standard before integration. Ensure proper thermal dissipation conditions are met during operation to maintain component integrity and performance stability over time.

Selection Notes

Select this model when a WR-187 compatible termination is required for frequencies between 4.4 GHz and 5 GHz. Choose based on the need for a brass construction and specific CPR-187F flange interface. Consider the 70 Watt power handling capability relative to the system's output levels to ensure safe and effective operation without overheating.

Part Context

This component belongs to the RF Terminators category under RF Interconnects. It serves as a passive load device for rectangular waveguide applications. The part number indicates its specific waveguide size (WR-187) and power rating characteristics within the manufacturer's portfolio of microwave components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should verify exact dimensional and electrical specifications if considering alternative manufacturers for WR-187 waveguide terminations.
