FMW28PS1002

Overview

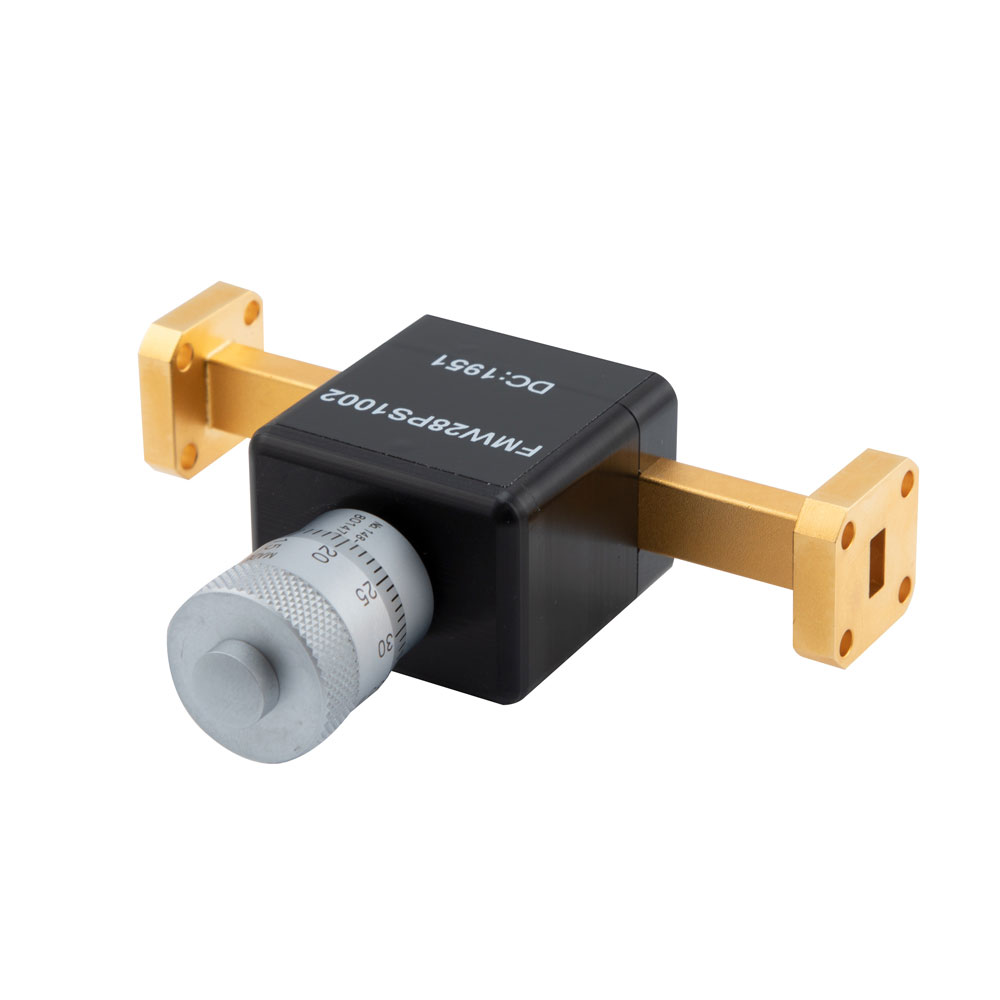

The FMW28PS1002 is a WR-28 waveguide phase shifter manufactured by Fairview Microwave, designed for operation within the 26.5 GHz to 40 GHz frequency range. This component provides a 0 to 180-degree phase shift capability and utilizes UG-599/U flanges for secure waveguide connections. Constructed as a general-purpose RF IC phase shifter, it supports applications requiring precise signal phase control in high-frequency systems.

Feature Summary

• Provides continuous 0 to 180-degree phase shift adjustment
• Operates within the WR-28 waveguide band from 26.5 GHz to 40 GHz
• Features UG-599/U square cover flanges for standardized waveguide interfacing

Applications

• High-frequency radar systems requiring phase manipulation
• Satellite communication ground stations operating in Ka-band
• Test and measurement equipment for microwave signal analysis

Procurement Notes

Verify current manufacturing status as this product may be discontinued or subject to limited availability. Confirm specific flange compatibility and dimensional tolerances against system requirements before procurement. Request updated datasheets directly from Fairview Microwave or authorized distributors to ensure accurate technical specifications and compliance with RoHS standards.

Selection Notes

Select this component when a fixed or adjustable 180-degree phase shift is required in WR-28 waveguide systems. Ensure the operating frequency aligns with the 26.5 GHz to 40 GHz range. Verify that the UG-599/U flange interface matches existing waveguide infrastructure. Consider thermal management and physical space constraints associated with waveguide components in the final design.

Part Context

This part belongs to Fairview Microwave's RF misc ICs and waveguide section portfolio. It serves as a specialized passive component for microwave signal processing. The WR-28 designation indicates its compatibility with standard rectangular waveguide dimensions for the specified frequency band, distinguishing it from coaxial alternatives.

Replacement Considerations

Check for direct substitutes within the FMW28 series. Verify if other manufacturers offer equivalent WR-28 phase shifters with compatible flange types. Ensure any replacement maintains the 26.5 GHz to 40 GHz operational range and 180-degree phase shift capability.
