FMW28TR1002

Overview

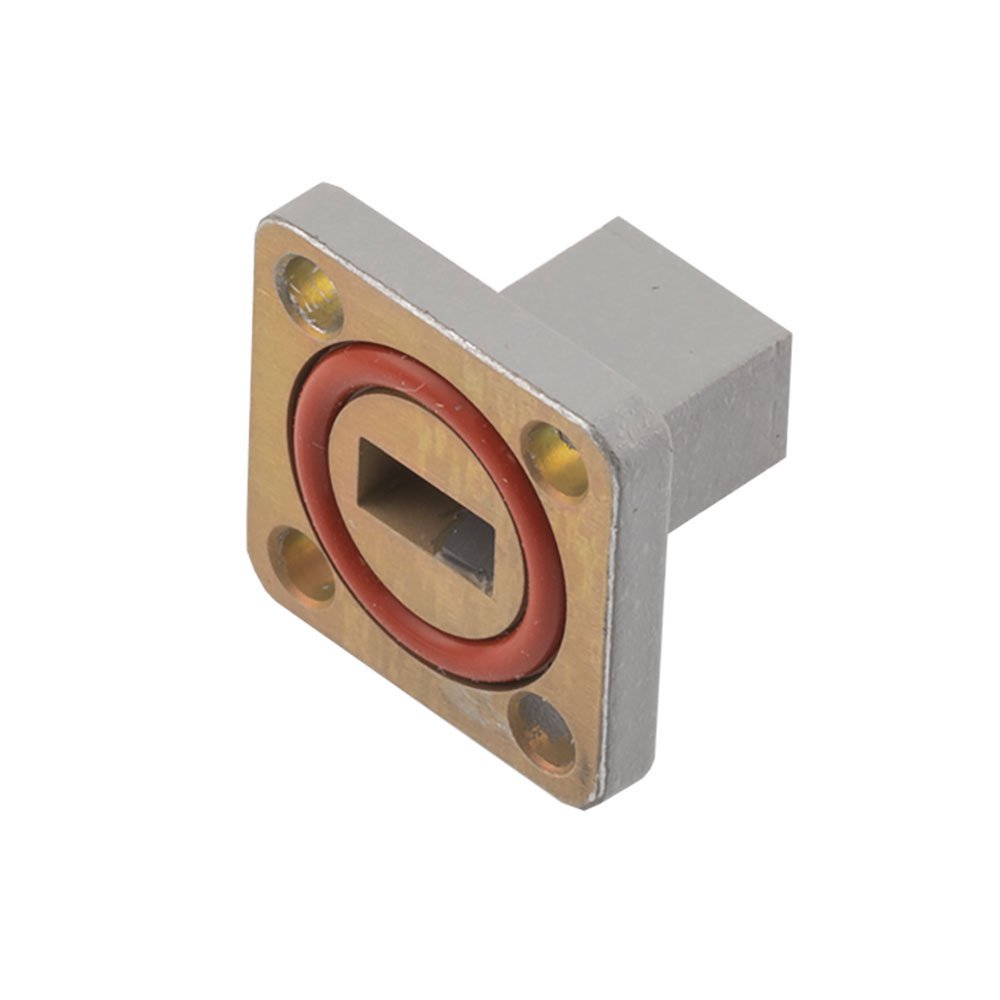

The FMW28TR1002 is a WR-28 waveguide termination manufactured by Fairview Microwave. It operates within the frequency range of 29.4 GHz to 31 GHz and is rated for a maximum power handling capacity of 2 Watts. The component features an aluminum body and utilizes a UG style flange for secure mounting. Designed as a chassis-mount module, it serves as an RF terminator for radar applications, ensuring signal absorption within the specified millimeter-wave band.

Feature Summary

• Operates in the WR-28 waveguide band from 29.4 GHz to 31 GHz
• Rated for 2 Watts maximum power handling
• Constructed with an aluminum body for durability
• Features a UG style flange for standardized mounting

Applications

• Radar systems
• Millimeter-wave test setups
• RF circuit termination

Procurement Notes

Verify the specific flange configuration and material composition against the official datasheet before procurement. Ensure the operating environment aligns with the 2 Watt power rating and the 29.4 GHz to 31 GHz frequency range. Confirm that the chassis mount design fits the intended mechanical assembly constraints.

Selection Notes

Select this component when a reliable termination is required for WR-28 waveguide applications. It is suitable for environments demanding stable performance within the 29.4 GHz to 31 GHz spectrum. Consider the aluminum construction and UG flange compatibility for integration into existing radar or test infrastructure.

Part Context

This part belongs to the RF Terminators category under Signal Conditioning. It is specifically designed for high-frequency applications requiring precise impedance matching and signal absorption. The WR-28 designation indicates its compatibility with standard waveguide dimensions for frequencies above 26.5 GHz.

Replacement Considerations

No public confirmed substitute part numbers are available.
