FMW28TR1003

Overview

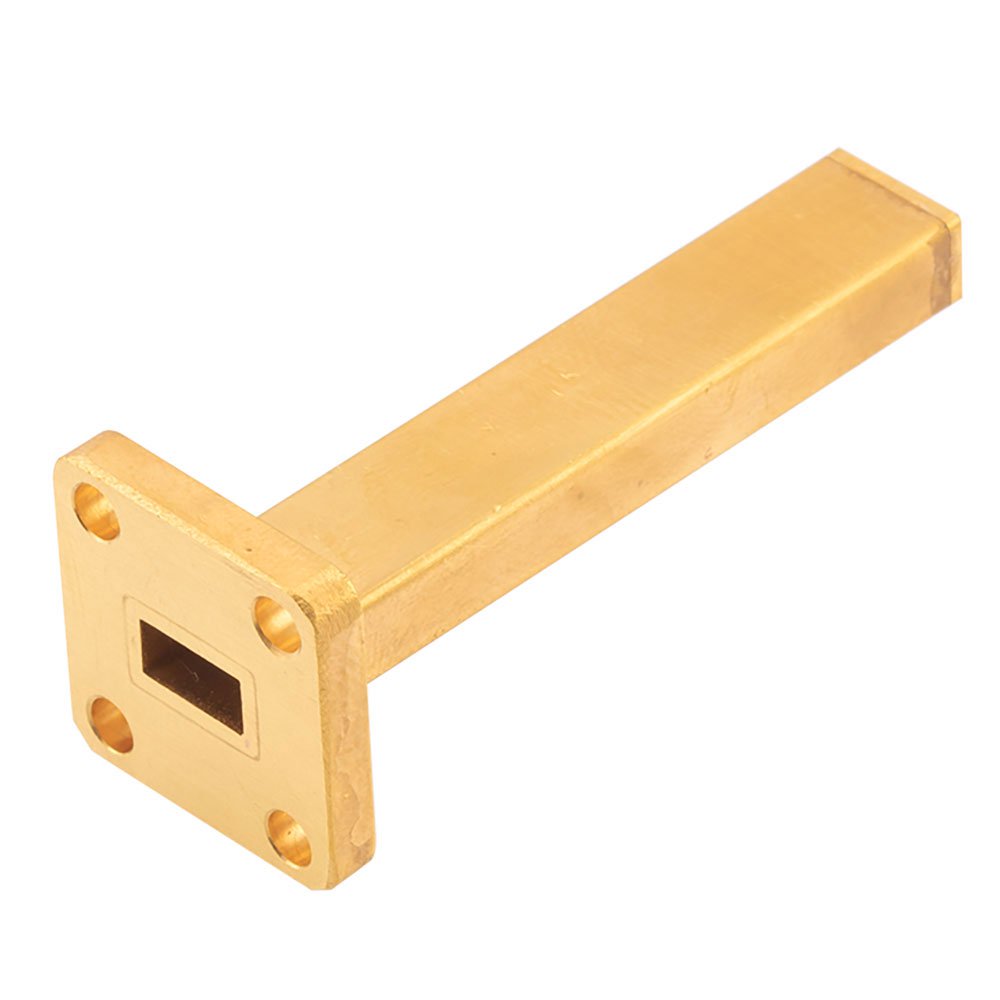

The FMW28TR1003 is a WR-28 waveguide termination manufactured by Fairview Microwave, designed for radar applications within the 26.5 GHz to 40 GHz frequency range. It features a brass construction with a UG-style flange and provides a 1 Watt power handling capacity. The component utilizes chassis mounting for secure installation in RF systems requiring precise signal absorption at millimeter-wave frequencies.

Feature Summary

• Provides reliable signal termination for WR-28 waveguide systems
• Engineered for high-frequency radar application environments
• Constructed from brass material with integrated UG-style flange

Applications

• Radar system testing and measurement setups
• Millimeter-wave communication link terminations
• Waveguide circuit load balancing

Procurement Notes

Verify current lifecycle status and availability through authorized distributors. Confirm that the UG-style flange matches existing waveguide interface requirements. Ensure operational frequency aligns with the specified 26.5 GHz to 40 GHz range for optimal performance.

Selection Notes

Select this component when a fixed load is required for WR-28 waveguide infrastructure. Consider the 1 Watt power rating against expected signal levels. Verify chassis mounting compatibility with the host equipment enclosure design.

Part Context

This part belongs to Fairview Microwave's RF terminator series, specifically tailored for waveguide applications. It complements their broader portfolio of interconnects and accessories used in high-frequency electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate equivalent WR-28 terminations only if they match the exact frequency range and flange specifications.
