Product Detailed Parameters
- Description：WG TERMINATION WR-34 19.6-21.2 G
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：19.6GHz ~ 21.2GHz
- RF Type：Radar
- Secondary Attributes：1W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

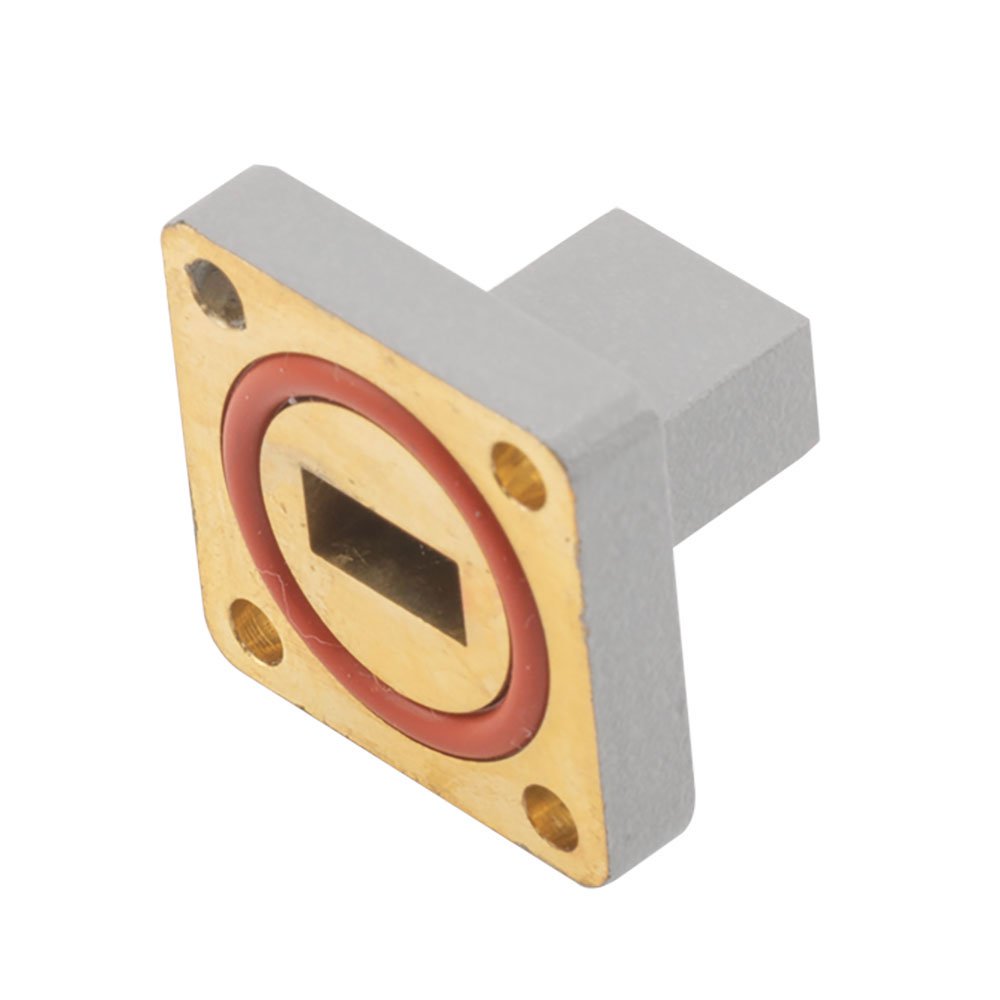

The FMW34TR1001 is a WR-34 waveguide RF termination manufactured by Fairview Microwave. It operates within a frequency range of 19.6 GHz to 21.2 GHz and handles a maximum power rating of 1 Watt. The component features a brass body and utilizes a UG-style flange for secure mounting. Designed for radar applications, it provides precise impedance matching in high-frequency environments.
Feature Summary
- Constructs a robust termination using a brass body material suitable for high-power dissipation.
- Integrates a UG-style flange interface to ensure reliable mechanical connection with standard waveguide systems.
- Provides stable performance across the specified Ka-band frequency range for signal absorption.
Applications
- Radar system load termination
- Waveguide test equipment calibration
- Microwave circuit isolation
Procurement Notes
Verify the specific UG-style flange variant required for your waveguide assembly before ordering. Confirm that the operating power does not exceed the 1 Watt limit to prevent thermal damage. Ensure the frequency range aligns with your system requirements between 19.6 GHz and 21.2 GHz. Check local distribution availability as stock levels may vary.
Selection Notes
Select this model when a fixed 50-ohm equivalent load is needed for WR-34 waveguide lines. Consider the brass construction for durability and thermal conductivity. Compare against other terminations if higher power handling or different frequency bands are required. Ensure compatibility with existing UG-flange hardware in your setup.
Part Context
This component belongs to the Fairview Microwave RF Terminators category, specifically designed for waveguide applications. It serves as a passive device to absorb microwave energy, preventing reflections in transmission lines. The product is part of a broader portfolio of RF interconnects and integrated circuits offered by the manufacturer.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific model. Users should verify dimensional compatibility and electrical specifications when considering alternative waveguide terminations from other manufacturers.
