FMW42TR1002

Overview

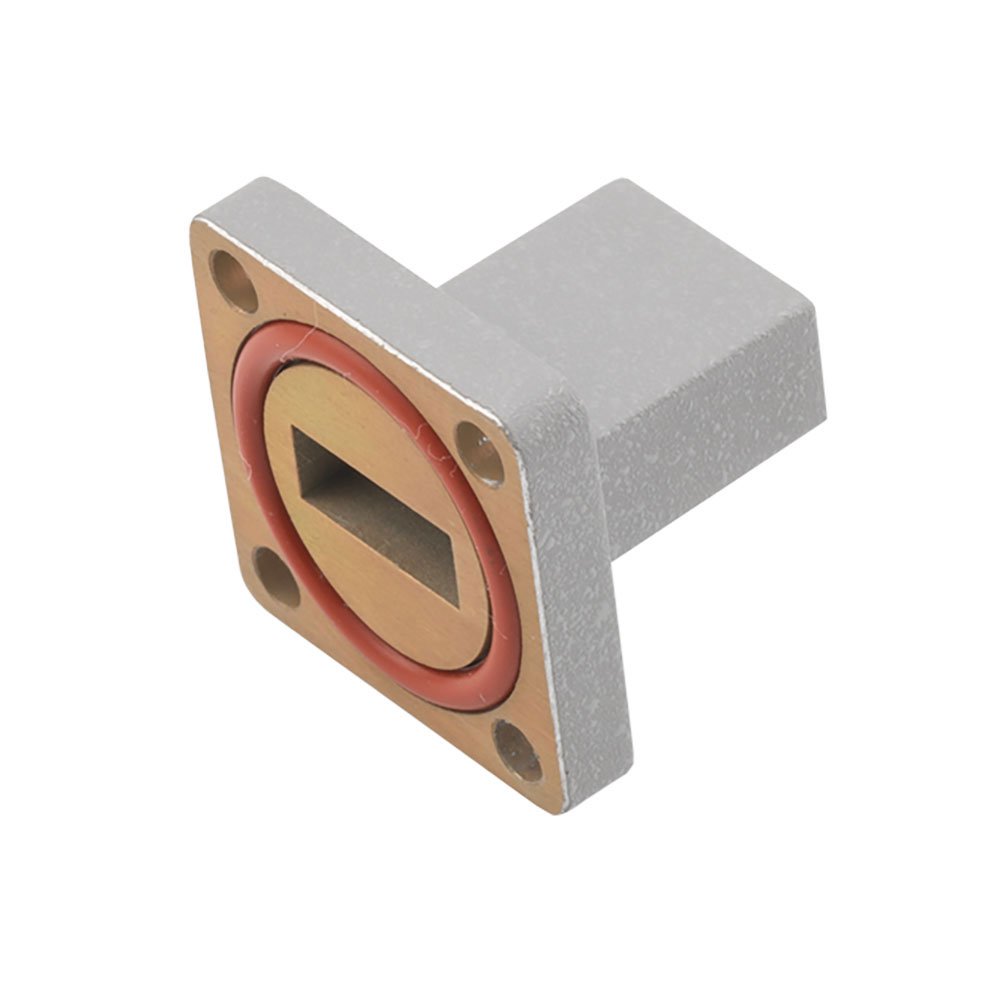

The FMW42TR1002 is an RF terminator manufactured by Fairview Microwave, designed for WR-42 waveguide applications. It operates within a frequency range of 19.6 GHz to 21.2 GHz and is rated for 1 Watt of power handling. The component features an aluminum body and utilizes a UG Style Flange for secure mounting. This termination device serves as a precision load for waveguide systems in the specified millimeter-wave band.

Feature Summary

• Provides precise impedance matching for WR-42 waveguide systems
• Rated for 1 Watt power dissipation capacity
• Constructed with durable aluminum housing material

Applications

• Waveguide test and measurement setups
• Radar system terminations
• Millimeter-wave circuit characterization

Procurement Notes

Verify the specific UG Style Flange configuration required for your installation before procurement. Confirm that the 19.6 GHz to 21.2 GHz frequency range aligns with your operational requirements. Ensure compatibility with WR-42 waveguide dimensions. Check current availability status as supply conditions may vary. Validate power rating suitability for your specific signal levels.

Selection Notes

Select this model when a fixed load is needed for WR-42 waveguide environments. Consider the 1 Watt power limit against expected signal strengths. The aluminum construction offers thermal stability. The UG Style Flange ensures standard mechanical interface compatibility. Verify frequency coverage matches application needs between 19.6 GHz and 21.2 GHz.

Part Context

This component belongs to Fairview Microwave's line of RF terminators. It complements other waveguide accessories like bends and pressurizing sections. The part supports high-frequency testing infrastructure. It fits into broader RF interconnect ecosystems. The design focuses on reliable performance in millimeter-wave bands.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
