FMW62TR1001

Overview

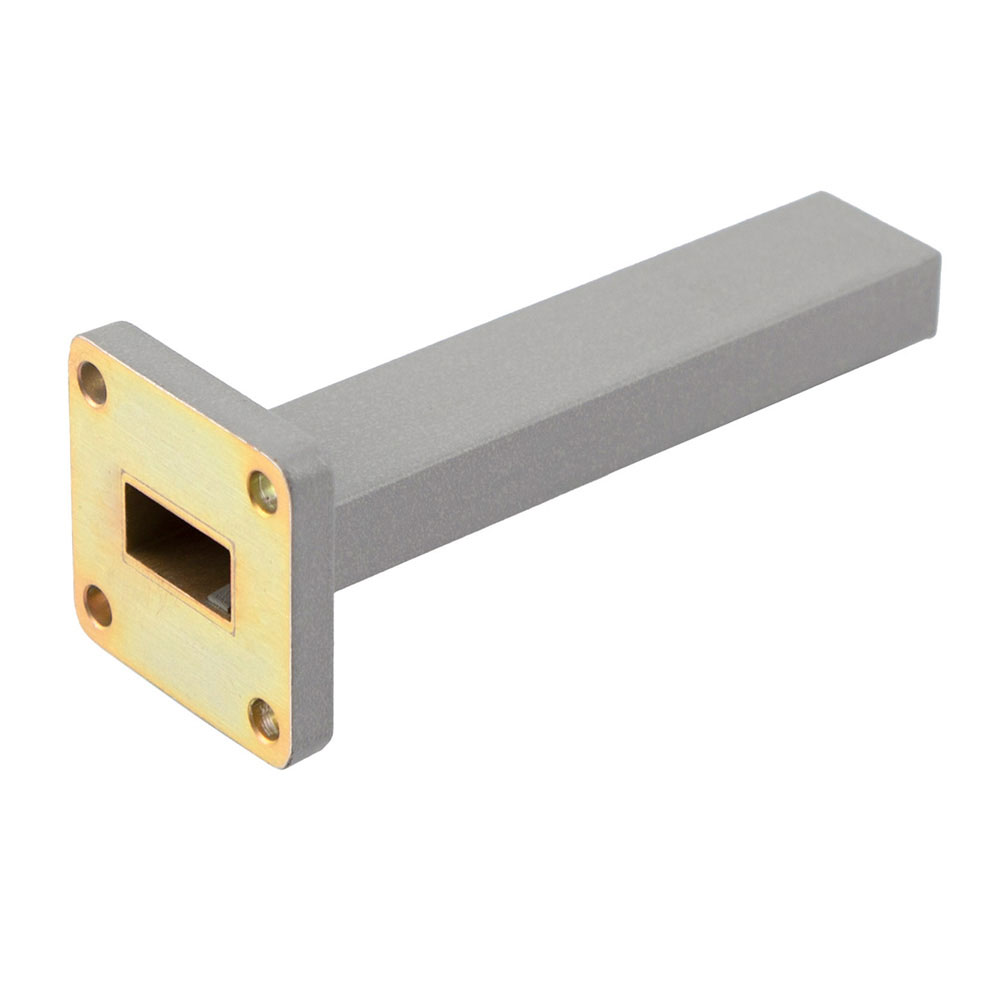

The FMW62TR1001 is a precision WR-62 waveguide RF termination manufactured by Fairview Microwave. It operates within a frequency range of 11.9 GHz to 18 GHz and handles a maximum power rating of 2 Watts. The component features an aluminum body and utilizes a UG-style flange for secure connection. Designed for high-frequency applications, it provides reliable signal absorption in microwave systems.

Feature Summary

• Precision WR-62 waveguide design for standardized interface compatibility
• Aluminum construction ensuring durability and thermal stability
• UG-style flange configuration for robust mechanical mounting

Applications

• Microwave test and measurement setups
• Waveguide system load matching
• Signal absorption in high-frequency circuits

Procurement Notes

Verify the specific UG-style flange variant required for your WR-62 application before ordering. Confirm that the 2-watt power rating aligns with your system's operational limits. Ensure the 11.9 GHz to 18 GHz frequency range covers your intended use case. Check local availability as distribution may be restricted in certain regions.

Selection Notes

Select this termination when a fixed, non-adjustable load is required for WR-62 waveguide lines. Consider the aluminum material for standard environmental conditions. Evaluate the 2-watt power handling against peak signal levels. Ensure the UG flange matches existing connector hardware in the assembly.

Part Context

This component belongs to the RF Terminators category under Fairview Microwave's interconnect solutions. It serves as a passive device designed to absorb electromagnetic energy without reflection. The product supports microwave engineering tasks requiring precise impedance matching and signal termination in guided wave structures.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
