Product Detailed Parameters
- Description：WG TERMINATION WR-62 14.5-17.8 G
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：14.5GHz ~ 17.8GHz
- RF Type：Radar
- Secondary Attributes：1W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

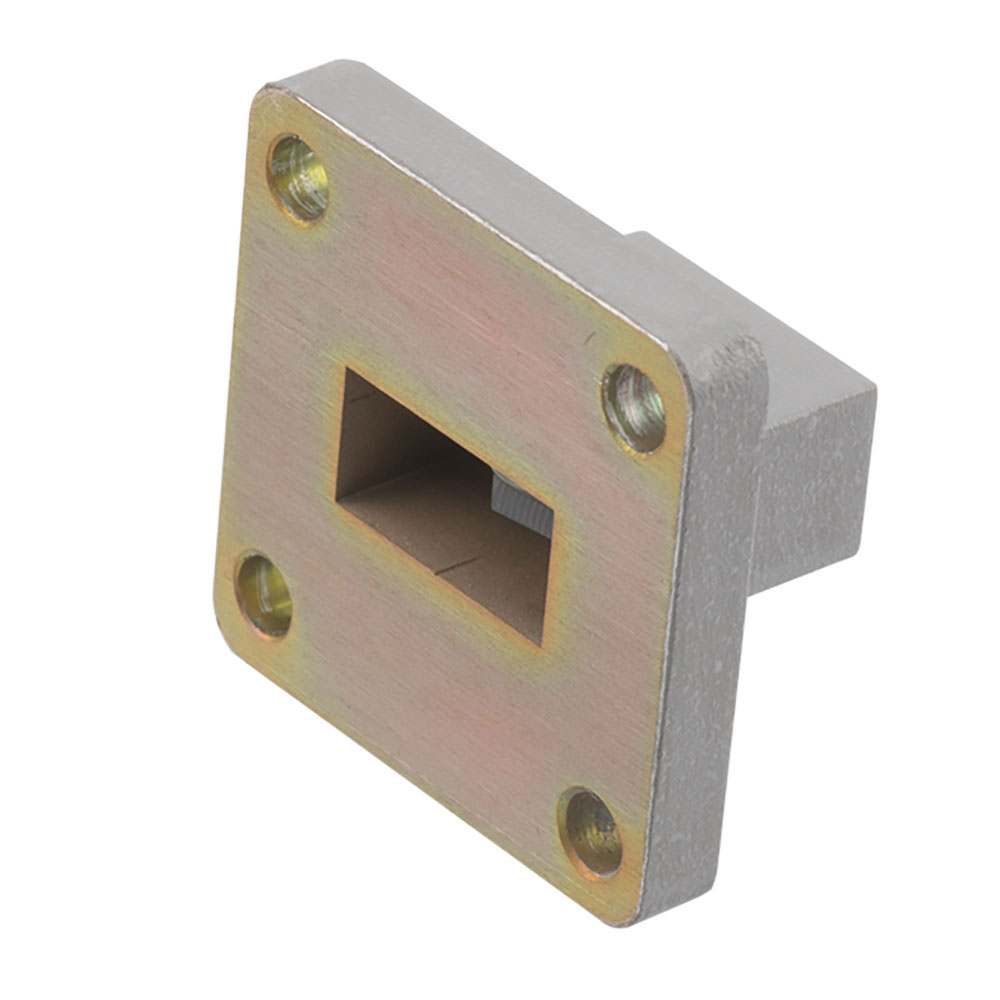

The FMW62TR1003 is a WR-62 waveguide termination manufactured by Fairview Microwave. It is designed for radar applications and provides a matched load within the frequency range of 14.5 GHz to 17.8 GHz. The component handles a power rating of 1 Watt. This termination serves as an essential RF component for absorbing signals in waveguide systems, ensuring proper impedance matching and minimizing reflections within the specified operational bandwidth.
Feature Summary
- Provides a matched load for WR-62 waveguide systems
- Designed specifically for radar application environments
- Operates effectively within the 14.5 GHz to 17.8 GHz frequency spectrum
Applications
- Radar system signal absorption
- Waveguide test setups requiring matched loads
- RF measurement equipment terminations
Procurement Notes
Verify the specific part number FMW62TR1003 against official Fairview Microwave documentation to confirm current availability status. Check for any superseded models or alternative series that may offer updated specifications. Ensure compatibility with WR-62 waveguide interfaces before procurement. Review datasheets for precise power handling and frequency limits relevant to your specific deployment requirements.
Selection Notes
Select this component when a 1 Watt rated termination is required for WR-62 waveguide applications. Confirm that the operating frequency falls strictly within the 14.5 GHz to 17.8 GHz range. Consider environmental factors such as temperature stability if used in extreme conditions. Verify physical interface compatibility with existing waveguide flanges and connectors in the system architecture.
Part Context
This component belongs to the Fairview Microwave RF miscellaneous ICs and modules category. It is classified under RF connector accessories and tools, specifically functioning as a waveguide termination. The product line focuses on providing specialized interconnect solutions for high-frequency microwave and millimeter-wave applications, supporting various industry standards and custom requirements.
Replacement Considerations
No public confirmed substitute part numbers are available for the FMW62TR1003. Users should consult Fairview Microwave directly for potential alternatives or updated product lines that meet similar WR-62 termination specifications.
