FMW90TR1002

Overview

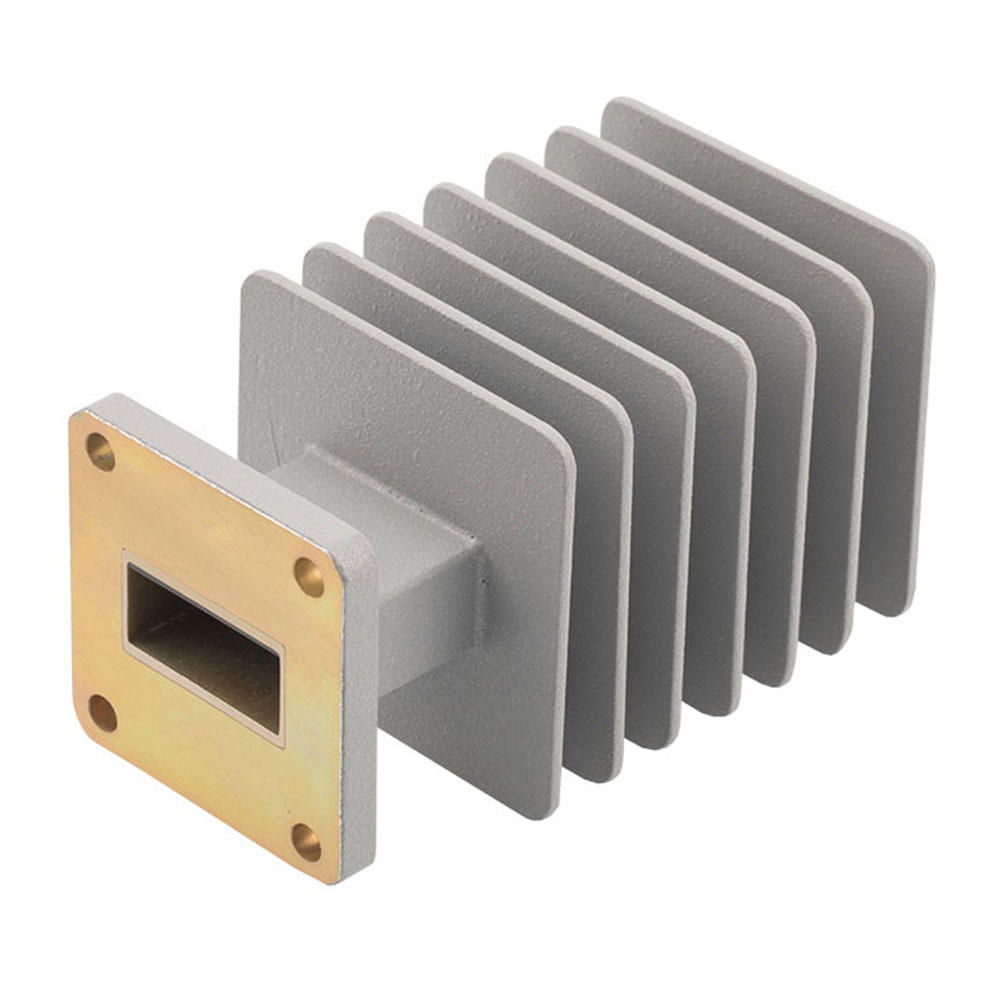

The FMW90TR1002 is a waveguide termination manufactured by Fairview Microwave, designed for WR-90 waveguide systems. It operates within a frequency range of 8.2 GHz to 12.5 GHz and supports an average power handling capacity of 50 Watts. The component features an aluminum construction with a UG-style flange interface, ensuring compatibility with standard waveguide configurations in high-frequency applications.

Feature Summary

• Provides effective signal absorption in WR-90 waveguide environments
• Constructed from durable aluminum material for thermal stability
• Utilizes a UG-style flange for secure mechanical mounting

Applications

• Radar system load termination
• Microwave measurement setup calibration
• Waveguide circuit testing and characterization

Procurement Notes

Verify the specific UG-style flange configuration matches your existing waveguide hardware before ordering. Confirm that the 50-watt average power rating aligns with your operational requirements. Ensure the frequency range covers your intended application spectrum. Check for any specialized packaging or handling instructions provided by the manufacturer to prevent damage during transit.

Selection Notes

Select this component when a reliable load is needed for WR-90 systems operating between 8.2 and 12.5 GHz. Consider the aluminum build for robustness in industrial settings. Evaluate the 50-watt power limit against peak and average signal levels. Compare physical dimensions and flange types with other available terminations to ensure seamless integration into your current waveguide infrastructure.

Part Context

This termination belongs to Fairview Microwave's RF terminator series, specifically tailored for rectangular waveguide applications. It serves as a critical passive component for absorbing reflected energy, thereby protecting sensitive upstream equipment. The product line emphasizes durability and precise impedance matching for consistent performance across defined microwave bands.
