FMWAN042-10KM

Antennas RF Overview

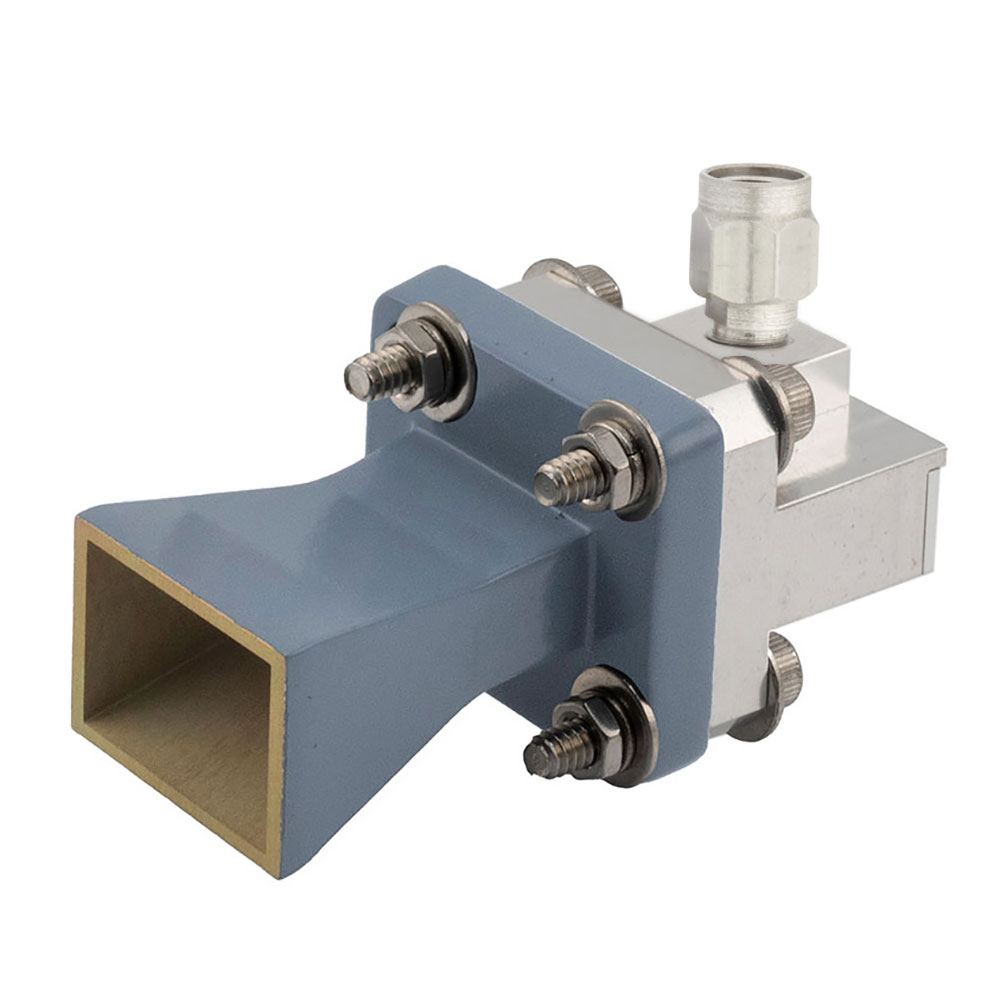

The FMWAN042-10KM is a WR-42 waveguide horn antenna manufactured by Fairview Microwave. It operates within the frequency range of 18,000 MHz to 26,500 MHz. The component features a nominal gain of 10 dB and a 3 dB beamwidth of 52.1 degrees. It utilizes a UG-597/U flange for mechanical connection. This unit is classified as an active product designed for high-frequency signal transmission applications.

Antennas RF Feature Summary

• Provides directional radiation characteristics suitable for specific beamwidth requirements
• Utilizes standard WR-42 waveguide dimensions for compatibility
• Incorporates a UG-597/U flange interface for secure mounting

Antennas RF Applications

• High-frequency test and measurement setups
• Microwave communication link implementations
• Radar system antenna arrays

Antennas RF Procurement Notes

Verify the exact suffix designation against the manufacturer's current documentation to ensure the correct variant is ordered. Confirm that the UG-597/U flange specification matches the receiving equipment interface requirements. Check for any recent updates to the datasheet regarding mechanical tolerances or material specifications before finalizing procurement.

Antennas RF Selection Notes

Select this model when a 10 dBi gain and 52.1-degree beamwidth are required within the 18 GHz to 26.5 GHz band. Ensure the application environment supports WR-42 waveguide standards. Compare performance metrics against alternative antennas if tighter beamwidth control or higher gain is necessary for the specific deployment scenario.

Antennas RF Part Context

This component belongs to the Fairview Microwave line of RF and wireless antennas. It serves as a passive radiating element within microwave interconnect systems. The part complements other waveguide components by providing defined radiation patterns in the K-band frequency spectrum.

Antennas RF Replacement Considerations

FMWAN042-10 is a related variant offering similar operational parameters.
