FMWAN042-15SF

Antennas RF Overview

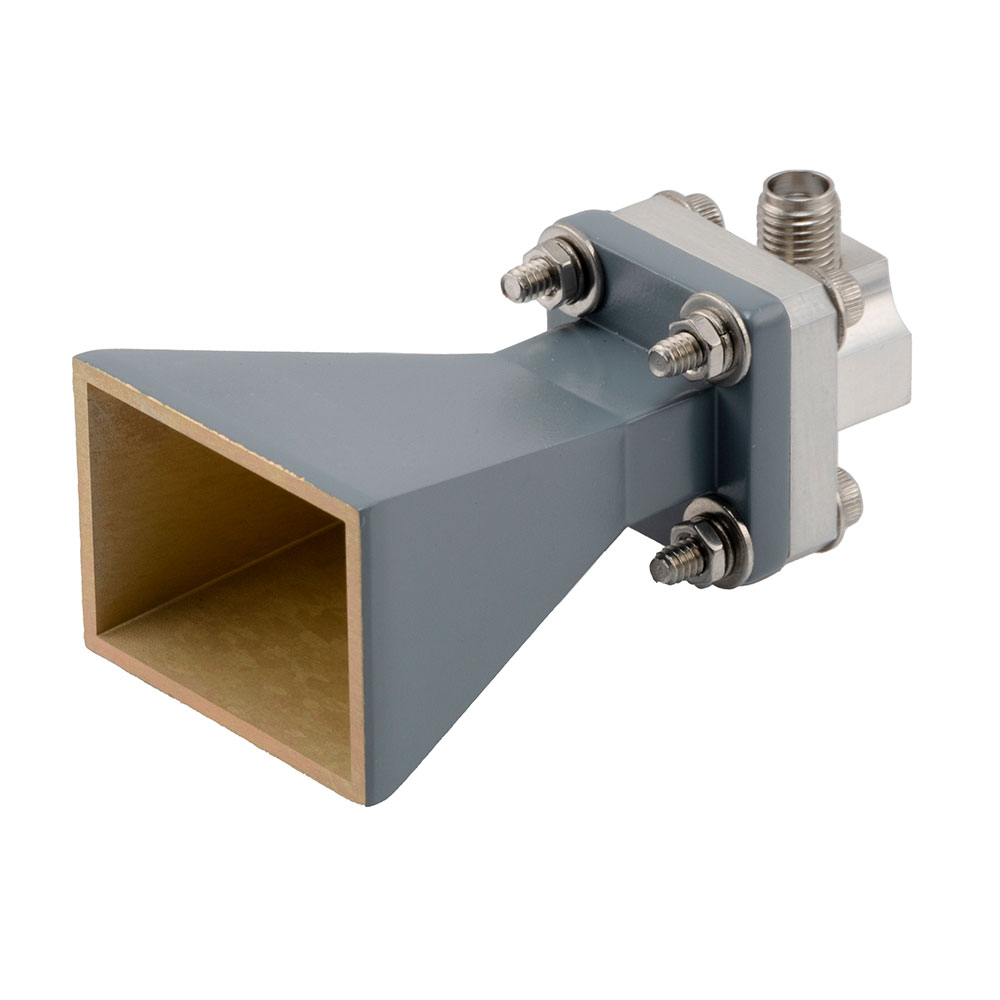

The FMWAN042-15SF is a WR-42 standard gain horn antenna manufactured by Fairview Microwave. It operates within the frequency range of 18 GHz to 26.5 GHz and provides a nominal gain of 15 dBi. The component features an SMA female connector for termination, facilitating integration into waveguide systems. Designed for high-power handling and low loss, this antenna ensures high directivity suitable for demanding RF applications.

Antennas RF Feature Summary

• High directivity and low signal loss characteristics
• Robust construction supporting high-power handling capabilities
• Standardized WR-42 waveguide interface design

Antennas RF Applications

• Microwave measurement systems
• Wireless communication test setups
• Radar system components

Antennas RF Procurement Notes

Verify specific datasheet revisions and connector tolerances before procurement. Confirm that the SMA female interface aligns with existing cable assemblies. Ensure environmental ratings meet operational requirements. Check manufacturer documentation for any recent updates regarding material specifications or performance curves.

Antennas RF Selection Notes

Select this model when a fixed 15 dBi gain is required in the 18-26.5 GHz band. Consider the SMA female termination for compatibility with standard coaxial interfaces. Evaluate space constraints as horn antennas have physical dimensions larger than integrated solutions. Verify power handling needs against application loads.

Antennas RF Part Context

This component belongs to the WR-42 waveguide antenna family from Fairview Microwave. These antennas are engineered for millimeter-wave frequencies, offering reliable performance in precision RF environments. The series supports various gain options and connector styles to suit diverse system architectures.

Antennas RF Replacement Considerations

Consult official Fairview Microwave documentation for verified substitute part numbers. Generic waveguide horns may not match the specific 15 dBi gain or SMA interface requirements. Cross-reference technical parameters strictly to ensure functional equivalence.
