FMWAN1005

Antennas RF Overview

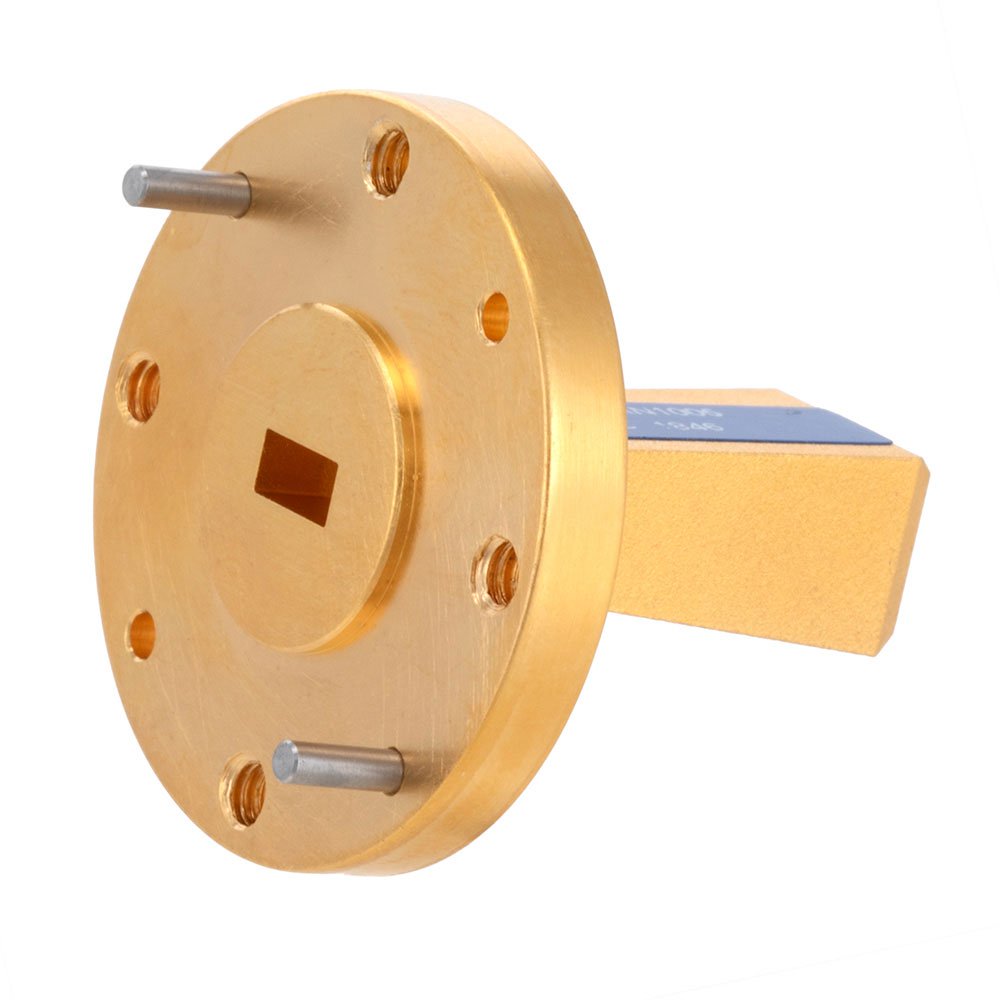

The FMWAN1005 is a standard gain horn waveguide antenna manufactured by Fairview Microwave. It operates within the WR-19 waveguide frequency range of 40 GHz to 60 GHz. The component features a nominal gain of 10 dBi and utilizes a UG-383/U-MOD round cover flange for mechanical connection. Designed as an outdoor antenna, it provides directional radiation characteristics suitable for high-frequency microwave applications.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-19 waveguide dimensions
• Operates across the 40 GHz to 60 GHz frequency spectrum
• Incorporates UG-383/U-MOD round cover flange interface

Antennas RF Applications

• Microwave measurement systems requiring standard gain references
• Point-to-point communication links in the Ka-band
• Radar test setups utilizing WR-19 waveguide components

Antennas RF Procurement Notes

Verify the specific flange configuration matches system requirements before integration. Confirm that the operating environment supports the intended outdoor usage specifications. Ensure compatibility with WR-19 waveguide interfaces during installation planning.

Antennas RF Selection Notes

Select this model when a 10 dBi gain level is required for the 40-60 GHz band. Consider the UG-383/U-MOD flange type for mating connections. Evaluate physical size constraints associated with horn antennas compared to other types.

Antennas RF Part Context

This component belongs to the Fairview Microwave antenna product line, specifically categorized under outdoor antennas and horn antennas. It serves as a passive RF component designed for precise signal transmission and reception in high-frequency wireless environments.

Antennas RF Replacement Considerations

FMWAN1008 offers a higher 25 dBi gain option within the same 40-60 GHz frequency range and WR-19 waveguide specification.
