FMWAN1024

$751.34

Description：WG ANTENNA WR-8 90-140 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:24f8f0cb4900 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN1024 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-8 90-140 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN1024

Description：WG ANTENNA WR-8 90-140 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：115GHz
Frequency Range：90GHz ~ 140GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.15
Return Loss：-
Gain：25dBi
Features：-
Termination：Screw-Mount
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：0.838" (21.29mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN1024

FMWAN1024

Antennas RF Overview

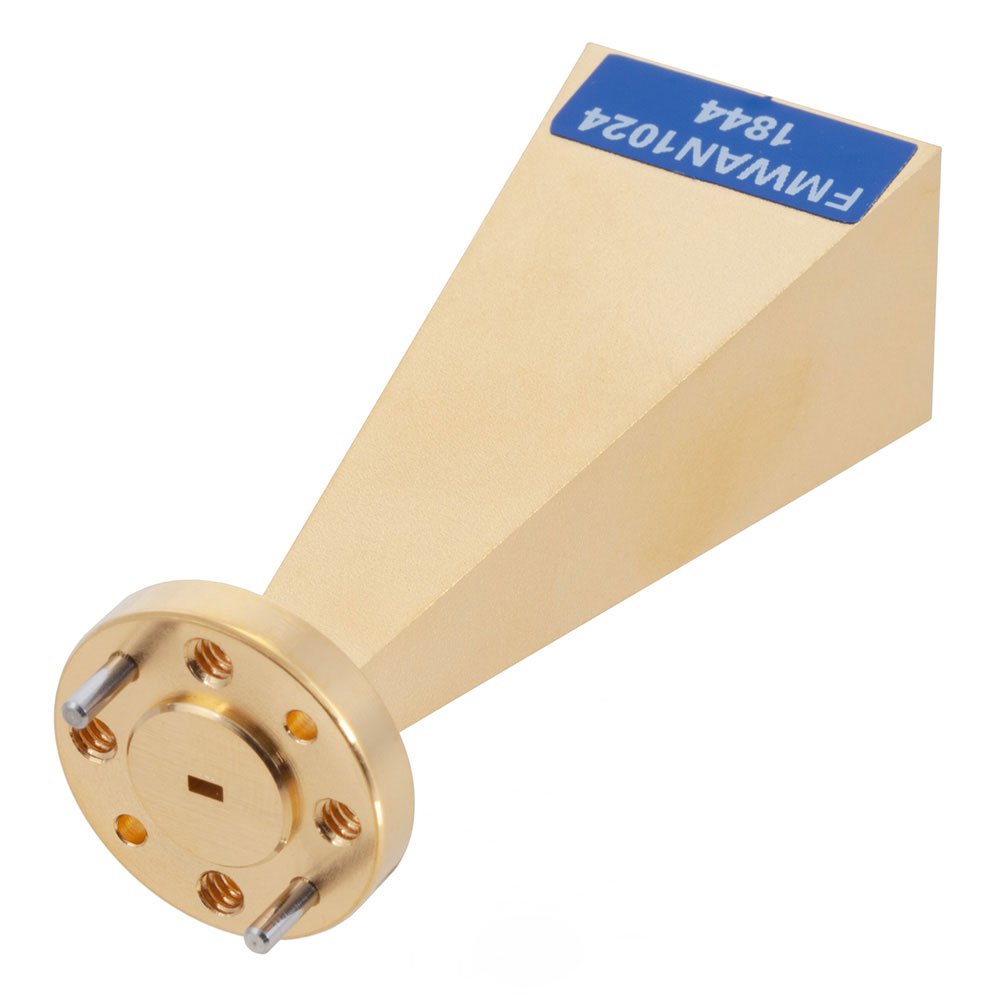

The FMWAN1024 is a standard gain horn antenna manufactured by Fairview Microwave, designed for high-frequency applications. It operates within the frequency range of 90 GHz to 140 GHz and features a WR-8 waveguide interface. The component provides a nominal gain of 25 dBi. Construction includes a gold-plated brass body and a precision tolerance UG-387/U-Mod round cover flange. This pyramidal horn antenna is engineered for general-purpose use in microwave systems requiring precise directional radiation patterns.

Antennas RF Feature Summary

Pyramidal horn design with gold-plated brass construction
WR-8 waveguide interface with UG-387/U-Mod round cover flange
Nominal 25 dBi gain across operating bandwidth

Antennas RF Applications

Microwave measurement systems
Test and calibration setups
General-purpose RF antenna applications

Antennas RF Procurement Notes

Verify the specific datasheet version and physical dimensions against system requirements before procurement. Ensure compatibility with WR-8 waveguide components and UG-387/U-Mod flanges. Confirm that the operating environment supports the specified frequency range and gain characteristics. Check for any specific handling instructions related to the gold-plated surface finish.

Antennas RF Selection Notes

Select this model when a standard gain horn antenna is required for the 90 GHz to 140 GHz band. The WR-8 interface dictates compatibility with existing waveguide infrastructure. Consider the 25 dBi nominal gain for link budget calculations. Verify that the physical size and mounting requirements align with the installation space.

Antennas RF Part Context

This component belongs to the Fairview Microwave line of RF antennas, specifically focusing on waveguide-mounted solutions. It serves as a passive radiating element for transmitting or receiving signals in the millimeter-wave spectrum. The product is part of a broader portfolio of microwave interconnects and antennas.
