FMWAN1028

$776.39

Description：WG ANTENNA WR-6 110-170 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:ace41b4d54f5 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMWAN1028 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-6 110-170 GHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMWAN1028

Description：WG ANTENNA WR-6 110-170 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：General ISM
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：140GHz
Frequency Range：110GHz ~ 170GHz
Antenna Type：Horn
Number of Bands：1
VSWR：1.15
Return Loss：-
Gain：25dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Waveguide Mount
Height (Max)：0.714" (18.13mm)
Applications：General Purpose
Power - Max：-

Antennas RF datasheet and documents for FMWAN1028

FMWAN1028

Antennas RF Overview

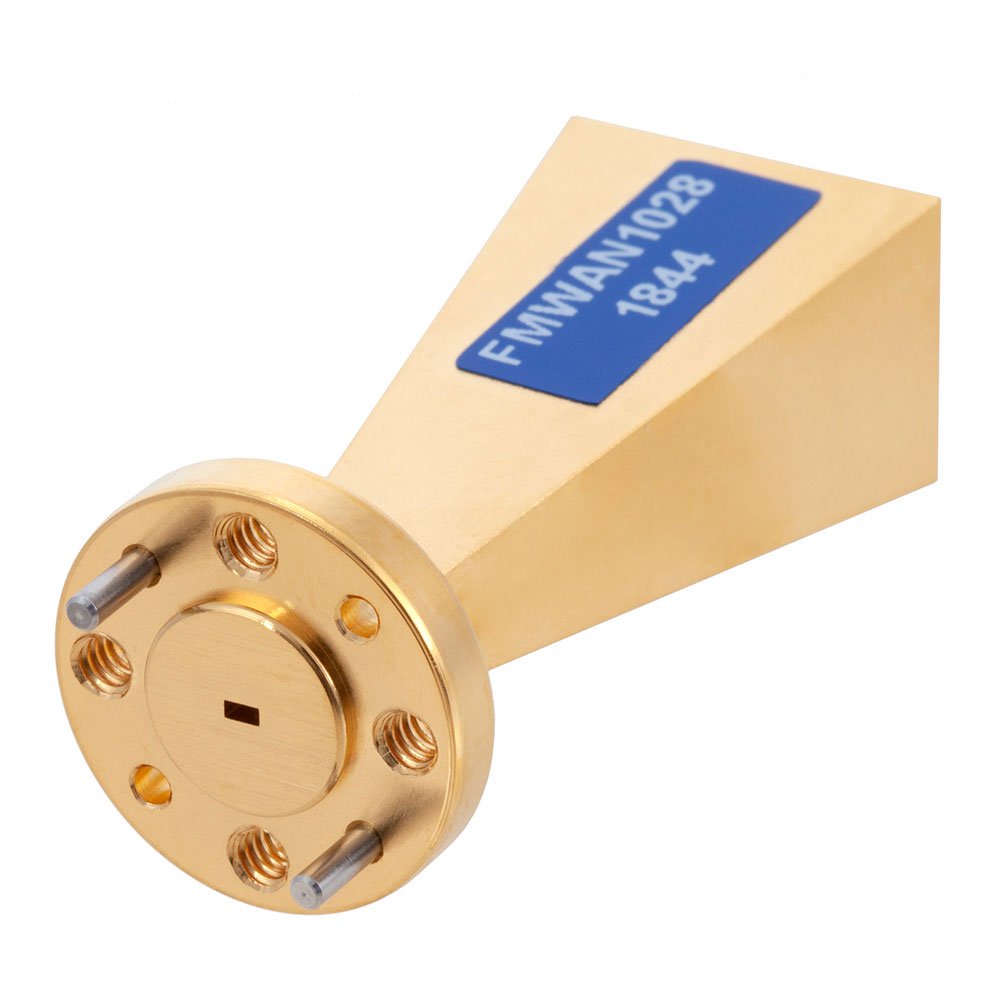

The FMWAN1028 is a standard gain horn antenna manufactured by Fairview Microwave, designed for operation within the WR-6 waveguide band. It covers a frequency range from 110 GHz to 170 GHz and features a nominal gain of 25 dBi. The unit utilizes a UG-387/U-Mod round cover flange for secure mounting and connection. Packaged individually in a bag, this component serves as a high-frequency passive device for millimeter-wave signal transmission and reception applications.

Antennas RF Feature Summary

Standard gain horn design optimized for high-frequency performance
Operates within the WR-6 waveguide frequency band
Incorporates a UG-387/U-Mod round cover flange interface

Antennas RF Applications

Millimeter-wave communication systems
Radar test and measurement setups
Satellite ground station links

Antennas RF Procurement Notes

Verify the specific flange configuration matches system requirements before ordering. Confirm that the operating environment supports the WR-6 waveguide dimensions. Ensure compatibility with existing feed horns or receiver interfaces. Check for any specialized handling requirements due to the precision nature of millimeter-wave components.

Antennas RF Selection Notes

Select this model when a fixed 25 dBi gain is required for the 110-170 GHz range. Consider the physical constraints of the UG-387/U-Mod flange during mechanical integration. Evaluate if the standard gain profile meets link budget calculations compared to higher-gain alternatives.

Antennas RF Part Context

This component belongs to Fairview Microwave's portfolio of RF interconnects and antennas. It complements other waveguide accessories and adapters in their catalog, providing essential radiating elements for complete millimeter-wave system architectures requiring precise frequency coverage.
