FMWAN1038 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-15 58-68 GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FMWAN1038
- Description：WG ANTENNA WR-15 58-68 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：63GHz
- Frequency Range：58GHz ~ 68GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.15
- Return Loss：-
- Gain：15dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：0.490" (12.45mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for FMWAN1038
Antennas RF Overview

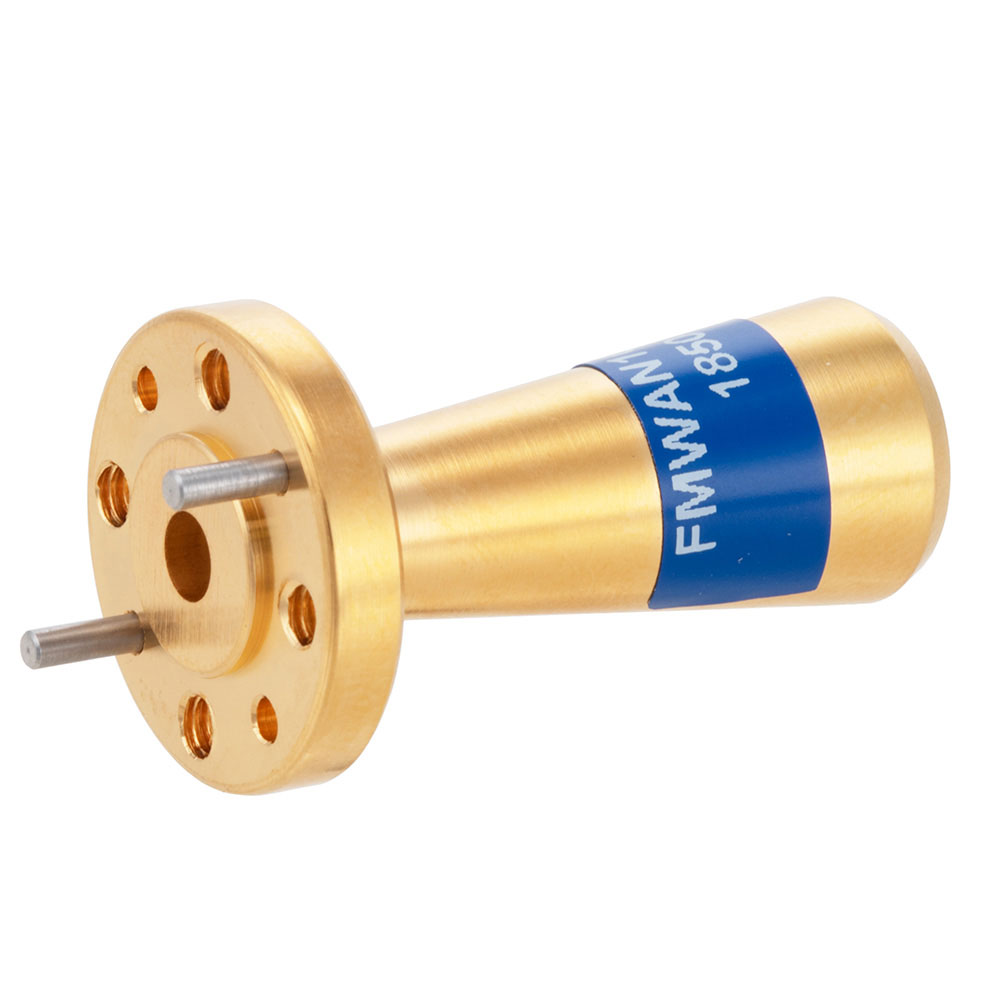

The FMWAN1038 is a conical gain horn waveguide antenna manufactured by Fairview Microwave. It operates within the frequency range of 58 GHz to 68 GHz and features a WR-15 waveguide interface. The component utilizes a UG-385/U round cover flange for mechanical connection. It provides a nominal gain of 15 dB. The antenna is designed for outdoor applications and is packaged individually in a bag.
Antennas RF Feature Summary
- Conical horn design optimized for high-frequency waveguide operation
- Integrated UG-385/U round cover flange for secure mounting
- Suitable for demanding outdoor environmental conditions
Antennas RF Applications
- Millimeter-wave communication systems
- Test and measurement instrumentation
- Radar research and development
Antennas RF Procurement Notes
Verify the specific datasheet version and physical dimensions prior to integration. Confirm that the UG-385/U flange interface aligns with existing waveguide infrastructure. Ensure the operating environment meets the specified requirements for outdoor antennas. Check for any regional distribution restrictions or supply limitations associated with this part number before finalizing procurement plans.
Antennas RF Selection Notes
Select this model when a 15 dB gain is required within the 58 GHz to 68 GHz band. The WR-15 interface dictates compatibility with standard waveguide components in this size class. Consider the conical horn geometry for its radiation pattern characteristics. Evaluate the UG-385/U flange against available mounting hardware constraints in the target assembly.
Antennas RF Part Context
This component belongs to the Fairview Microwave line of outdoor antennas, specifically categorized under horn antennas. It serves as a passive RF transducer converting guided wave energy into free-space radiation. The product falls under the broader antennas subcategory within the manufacturer's portfolio, targeting specialized millimeter-wave frequencies.
Antennas RF Replacement Considerations
FMWAN1039 offers a similar WR-15 form factor but provides 20 dBi nominal gain instead of 15 dB. Both units share the same 58 GHz to 68 GHz frequency range and UG-385/U flange interface. Verify if the increased gain profile suits the specific link budget requirements.
