FMWAN1053 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is WG ANTENNA WR-10 77-87 GHZ. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for FMWAN1053
- Description：WG ANTENNA WR-10 77-87 GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：82GHz
- Frequency Range：77GHz ~ 87GHz
- Antenna Type：Horn
- Number of Bands：1
- VSWR：1.15
- Return Loss：-
- Gain：10dBi
- Features：-
- Termination：Screw-Mount
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Waveguide Mount
- Height (Max)：1.000" (25.40mm)
- Applications：General Purpose
- Power - Max：-
Antennas RF datasheet and documents for FMWAN1053
Antennas RF Overview

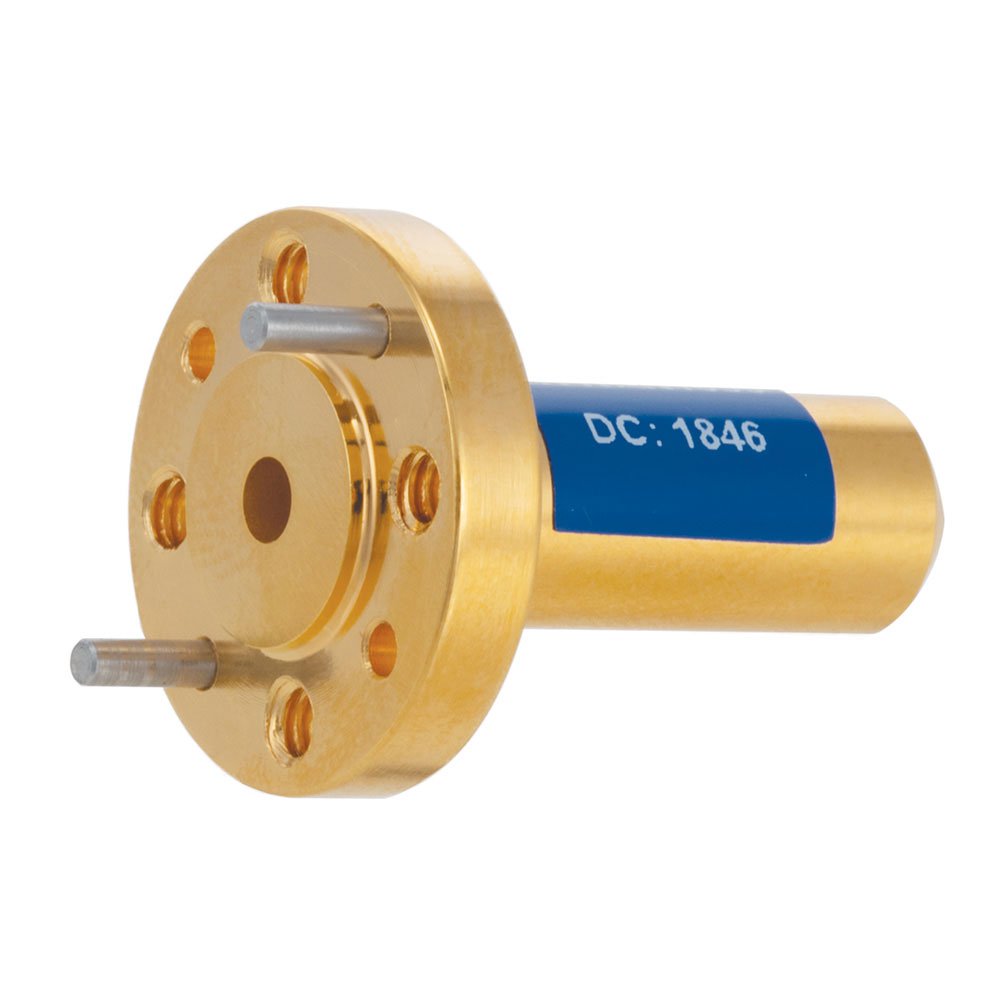

The FMWAN1053 is a conical gain horn waveguide antenna manufactured by Fairview Microwave. It operates within the frequency range of 77 GHz to 87 GHz and features a WR-10 waveguide interface with a UG-387/U round cover flange. The component provides a nominal gain of 10 dBi, with an E-plane beamwidth of 53 degrees and an H-plane beamwidth of 58 degrees. Designed for outdoor applications, it utilizes a horn mechanical form factor.
Antennas RF Feature Summary
- Conical horn design optimized for high-frequency operation
- WR-10 waveguide interface with standard flange compatibility
- Suitable for outdoor environmental conditions
Antennas RF Applications
- Millimeter-wave communication systems
- Radar test and measurement setups
- Satellite ground station links
Antennas RF Procurement Notes
Verify specific flange compatibility and mounting requirements before integration. Confirm that the operating environment meets the outdoor rating specifications. Ensure the host system supports the WR-10 waveguide interface dimensions. Check for any regional shipping restrictions or supply limitations associated with this specific part number from the manufacturer.
Antennas RF Selection Notes
Select this model when a 10 dBi gain is required in the 77-87 GHz band. The WR-10 interface dictates compatibility with other waveguide components. Consider the physical weight and size constraints for the installation site. Verify that the beamwidth characteristics align with the system's coverage or directivity needs.
Antennas RF Part Context
This antenna belongs to Fairview Microwave's line of millimeter-wave passive components. It complements their RF cable assemblies and adapters by providing radiating elements for high-frequency signal transmission. The product series focuses on reliable performance in specialized RF testing and communication environments.
