FMWAN1058

Antennas RF Overview

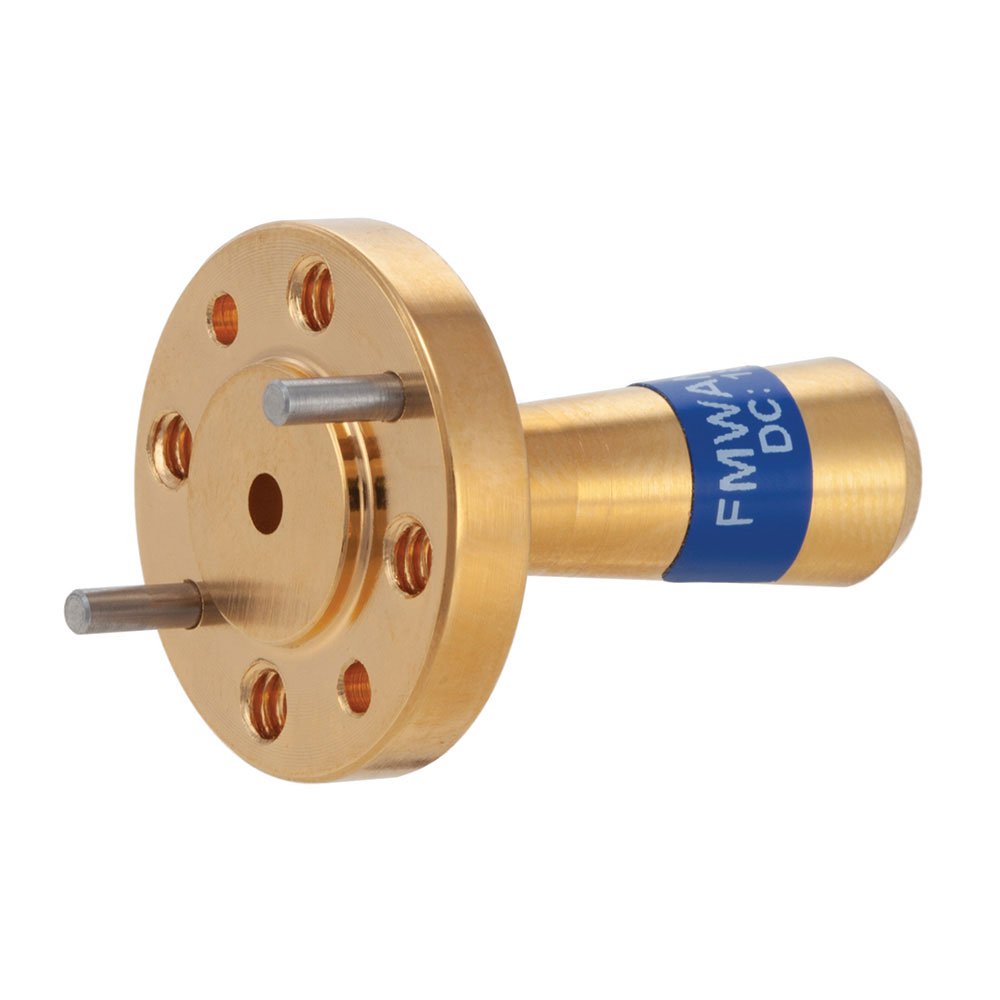

The FMWAN1058 is a conical gain horn waveguide antenna manufactured by Fairview Microwave. It operates within the SHF frequency range, specifically covering 77 GHz to 87 GHz. The component features a nominal gain of 20 dBi and utilizes a WR-10 waveguide interface. Mechanical mounting is provided via a UG-387/U round cover flange. This antenna is designed for high-frequency applications requiring precise directional signal transmission or reception in millimeter-wave bands.

Antennas RF Feature Summary

• Conical horn geometry optimized for wideband performance
• WR-10 waveguide interface standard
• UG-387/U round cover flange mounting style

Antennas RF Applications

• Millimeter-wave radar systems
• Satellite communication links
• Test and measurement instrumentation

Antennas RF Procurement Notes

Verify part status carefully as this model is listed as obsolete in distributor databases. Confirm availability through official Fairview Microwave channels directly. Ensure compatibility with existing WR-10 waveguide infrastructure before procurement. Check for updated replacement models if long-term supply continuity is required for production environments.

Antennas RF Selection Notes

Select this component when operating between 77 GHz and 87 GHz is mandatory. The 20 dBi gain specification suits applications needing moderate directivity. Verify that the UG-387/U flange matches the mechanical constraints of the installation site. Consider the obsolete status when planning lifecycle management for the equipment.

Antennas RF Part Context

This unit belongs to Fairview Microwave's RF antenna portfolio, specifically within their waveguide horn category. It serves as a specialized passive component for high-frequency signal handling. The design focuses on maintaining impedance matching and radiation patterns within the specified millimeter-wave band without active electronic components.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, users should consult Fairview Microwave technical support for current equivalent models or next-generation replacements compatible with WR-10 interfaces.
