FMWAN112-20ELSF

Antennas RF Overview

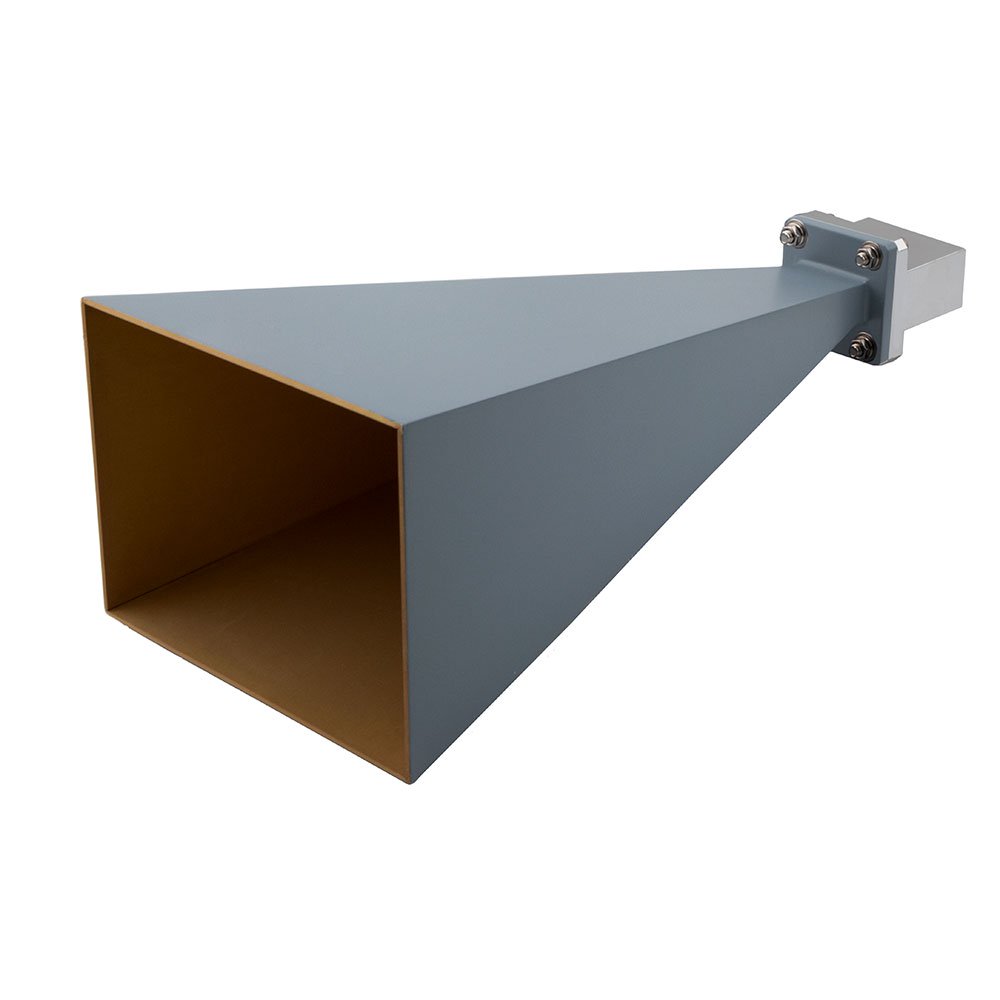

The FMWAN112-20ELSF is a WR-112 standard gain horn antenna manufactured by Fairview Microwave. It provides a nominal gain of 20 dBi and operates within the frequency range of 6.57 GHz to 9.99 GHz. The component features an end-launch SMA female connector for signal interfacing. Constructed for high-performance RF applications, it supports waveguide dimensions specific to the WR-112 standard.

Antennas RF Feature Summary

• Standard gain horn design optimized for consistent radiation patterns
• End-launch SMA female connector configuration for direct cable attachment
• WR-112 waveguide compatibility ensuring precise dimensional standards

Antennas RF Applications

• Microwave test and measurement setups
• Point-to-point communication links in Ku-band
• Radar system calibration and testing

Antennas RF Procurement Notes

Verify the SMA female connector orientation and WR-112 flange compatibility before integration. Confirm that the operating environment falls within the specified 6.57 GHz to 9.99 GHz range. Ensure mating cables support the required frequency spectrum without excessive loss. Check mechanical mounting requirements for the horn structure.

Antennas RF Selection Notes

Select this model when a fixed-gain solution is preferred over adjustable antennas. The SMA interface simplifies connection with standard coaxial test equipment. Consider the physical size constraints of the installation site due to the horn geometry. Evaluate if the 20 dBi gain meets the link budget requirements for the intended distance.

Antennas RF Part Context

This component belongs to the Fairview Microwave WR-112 series of waveguide antennas. It complements other RF interconnects and accessories designed for the Ku-band spectrum. The product line focuses on precision components for laboratory and industrial microwave environments.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available.
