FMWAN159-10NF

Antennas RF Overview

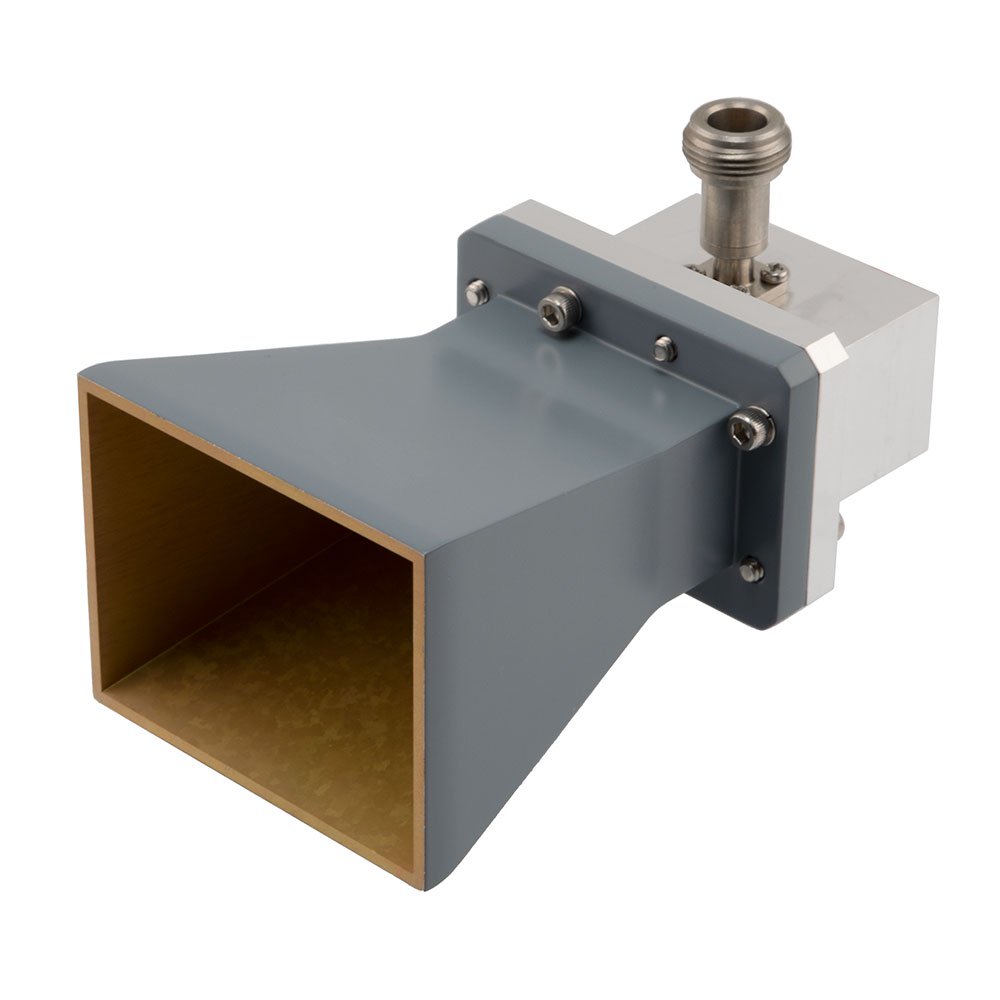

The FMWAN159-10NF is a standard gain horn antenna manufactured by Fairview Microwave, designed for WR-159 waveguide applications. It operates within a frequency range of 4.64 GHz to 7.05 GHz and provides a nominal gain of 10 dBi. The component features an N Female connector interface, facilitating integration into RF systems requiring this specific connection type. Constructed for reliable performance in the specified microwave band, it serves as a general-purpose solution for signal transmission and reception tasks.

Antennas RF Feature Summary

• Standard gain horn design optimized for WR-159 waveguide compatibility
• Integrated N Female connector for direct system interfacing
• Nominal 10 dBi gain specification for effective signal handling

Antennas RF Applications

• General purpose RF signal transmission
• Microwave communication link testing
• Waveguide system integration

Antennas RF Procurement Notes

Verify the specific connector gender and waveguide flange requirements against the target system interface before procurement. Confirm that the operating frequency range aligns with the intended application bandwidth. Ensure mechanical mounting constraints are compatible with the horn antenna dimensions. Review manufacturer documentation for detailed environmental specifications and power handling limits relevant to the deployment scenario.

Antennas RF Selection Notes

Select this model when a standard gain horn is required for WR-159 waveguide systems. The N Female connector choice dictates compatibility with existing coaxial infrastructure. Consider the 10 dBi gain level relative to link budget requirements. Evaluate physical size and weight constraints if space is limited. Compare against higher or lower gain alternatives if specific directivity or coverage patterns differ from standard horn characteristics.

Antennas RF Part Context

This component belongs to the Fairview Microwave RF antenna portfolio, specifically within the standard gain horn category. It complements other waveguide components by providing a defined radiation pattern and impedance matching interface. The product line focuses on reliable microwave interconnects and antennas for industrial and scientific applications.
