FMWAN284-10

Antennas RF Overview

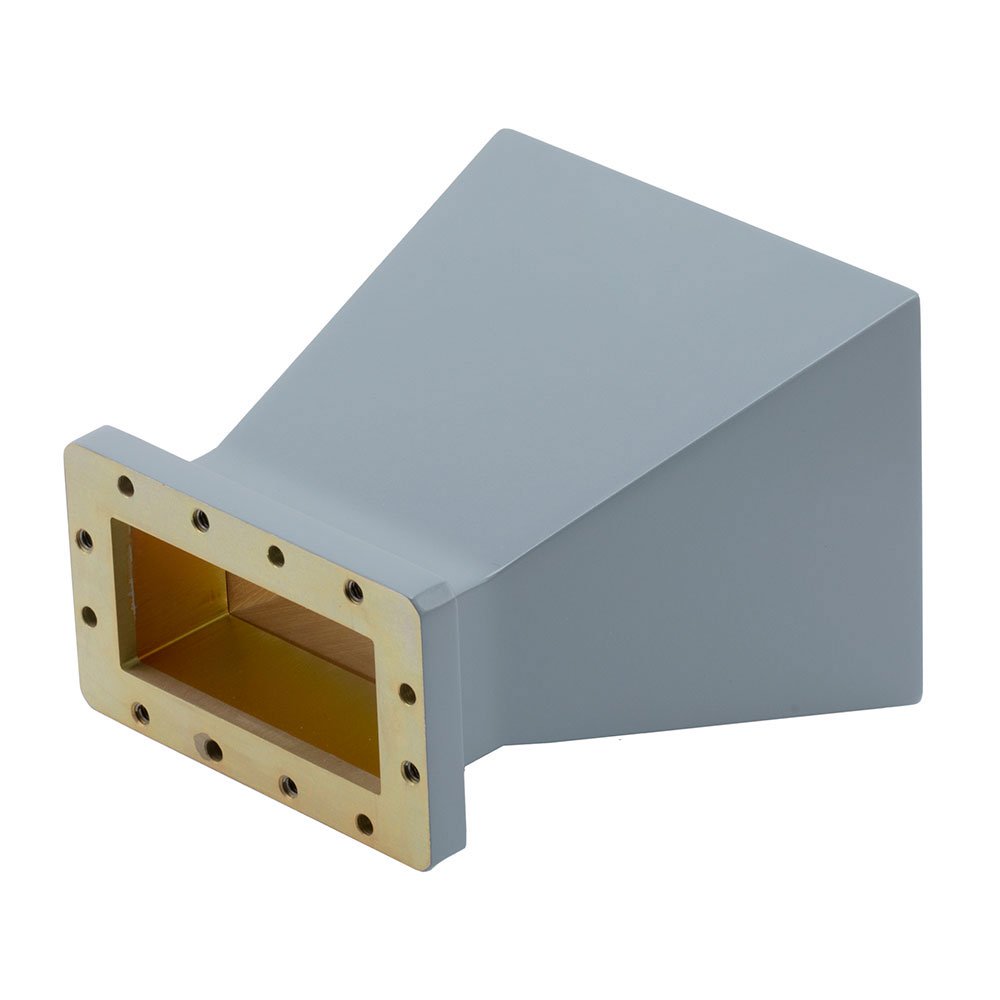

The FMWAN284-10 is a WR-284 standard gain horn antenna manufactured by Fairview Microwave. It operates within the frequency range of 2.6 GHz to 3.95 GHz, providing a nominal gain of 10 dBi. The component features an N female connector for interfacing and utilizes waveguide mount installation style. Constructed for high-frequency applications, it supports signal transmission in the E-band spectrum with a 50 Ohm impedance characteristic typical of such waveguide systems.

Antennas RF Feature Summary

• Standard gain horn design optimized for directional radiation patterns
• Integrated N female connector for coaxial interface compatibility
• Waveguide mount configuration ensuring secure mechanical alignment

Antennas RF Applications

• E-band wireless communication links
• Microwave test and measurement setups
• Radar system feed horns

Antennas RF Procurement Notes

Verify part number accuracy against datasheet specifications before ordering. Confirm frequency range and connector type match system requirements. Check RoHS compliance status if environmental regulations apply. Ensure waveguide flange dimensions align with existing infrastructure. Validate supplier authorization for genuine components.

Antennas RF Selection Notes

Select this model when a 10 dBi gain is required within the 2.6–3.95 GHz band. Choose based on the necessity for an N female connector interface. Consider waveguide mounting constraints during system integration. Evaluate beamwidth requirements against application needs. Compare with higher gain variants like the FMWAN284-15NF if increased directivity is necessary.

Antennas RF Part Context

This component belongs to Fairview Microwave's WR-284 horn antenna series. It complements other waveguide accessories such as adapters and sections designed for the same frequency band. The product line focuses on precision RF components for high-frequency engineering applications requiring reliable waveguide-to-coaxial transitions.
