FMWAT1007-3

Overview

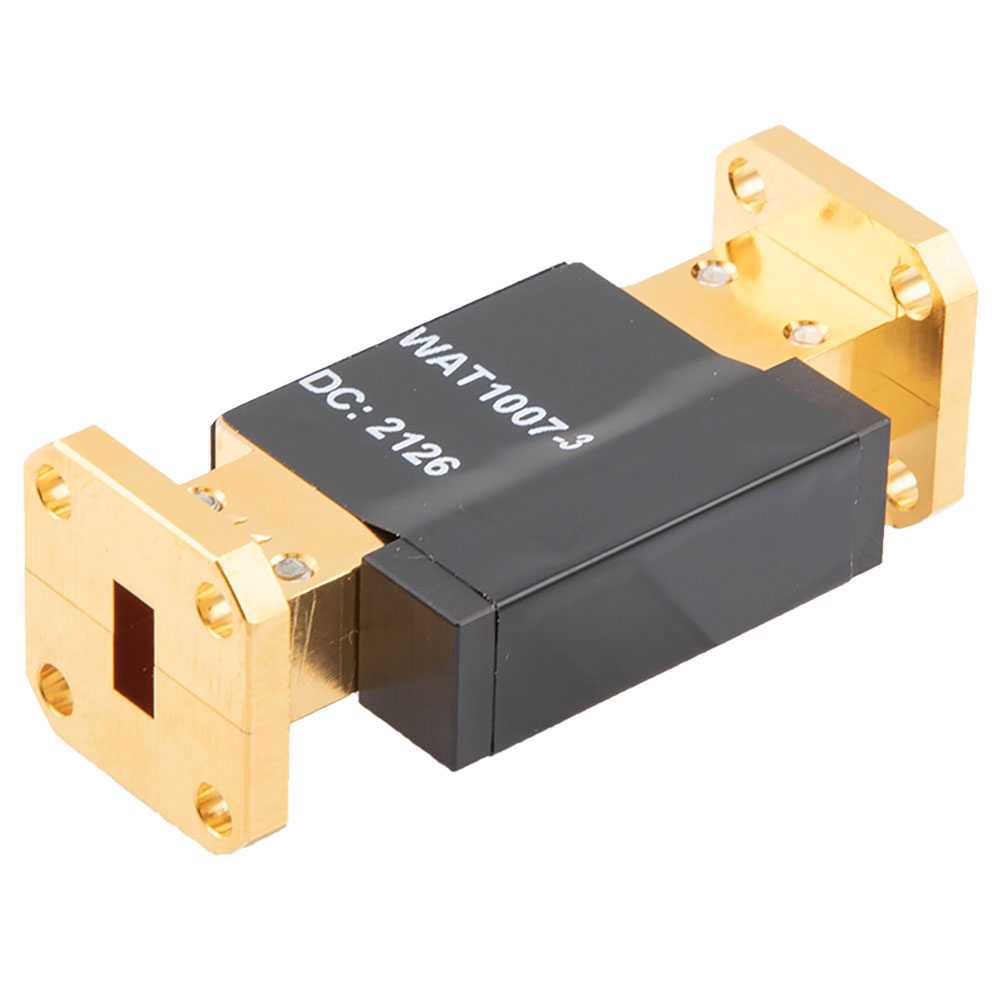

The FMWAT1007-3 is a fixed waveguide attenuator manufactured by Fairview Microwave, designed for WR-28 waveguide systems. It provides a fixed attenuation value of 3 dB and operates within a frequency range of 26.5 GHz to 40 GHz. The device features a UG-599-U round cover flange interface and supports a maximum power handling capacity of 5 watts. This component is engineered for high-frequency applications requiring precise signal reduction within the specified waveguide band.

Feature Summary

• Fixed 3 dB attenuation performance
• WR-28 waveguide compatibility
• UG-599-U round cover flange interface

Applications

• High-frequency signal testing setups
• Microwave communication systems
• Radar system calibration

Procurement Notes

Verify the specific model suffix and flange type against project requirements. Confirm that the operating frequency range aligns with system specifications. Ensure power handling capabilities meet application demands. Check for availability through authorized distributors.

Selection Notes

Select this component when a fixed 3 dB attenuation is required in WR-28 waveguide environments. Consider the 26.5 GHz to 40 GHz operational bandwidth. Evaluate the UG-599-U flange compatibility with existing hardware. Assess the 5-watt power limit for safety margins.

Part Context

This attenuator belongs to Fairview Microwave's waveguide device portfolio. It serves as a passive component for signal management in microwave frequencies. The design focuses on reliability and precision within standard waveguide dimensions.

Replacement Considerations

No public substitute part numbers are confirmed.
