FMWAT1007-30

Overview

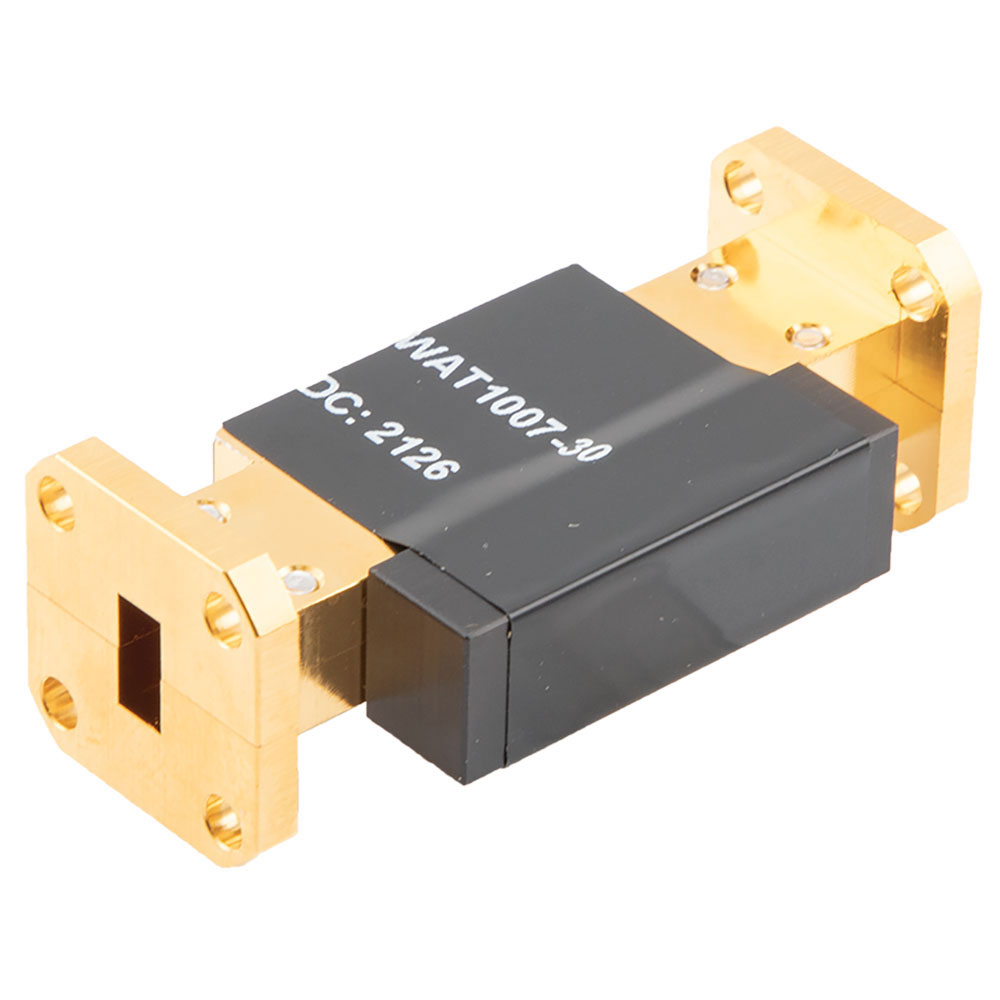

The FMWAT1007-30 is a fixed waveguide attenuator manufactured by Fairview Microwave, designed for WR-28 waveguide applications. It operates within the Ka-band frequency range of 26.5 GHz to 40 GHz. The component provides a fixed attenuation value of 30 dB. It supports an average power handling capacity of 5 watts. The device utilizes an offset flange configuration for connection.

Feature Summary

• Provides precise fixed signal attenuation for high-frequency RF systems
• Engineered specifically for WR-28 waveguide interface compatibility
• Supports operation across the full Ka-band spectrum

Applications

• Ka-band test and measurement setups
• Waveguide signal level adjustment
• RF system power reduction

Procurement Notes

Verify that the WR-28 waveguide interface matches your system requirements. Confirm the 30 dB attenuation value aligns with design specifications. Ensure the 5-watt average power rating meets operational needs. Check for the specific offset flange configuration required for installation.

Selection Notes

Select this model when a fixed 30 dB reduction is required in the 26.5 to 40 GHz range. Consider the WR-28 form factor for integration. Evaluate the 5-watt power limit against maximum expected signal levels. Compare with adjustable alternatives if variable attenuation is needed.

Part Context

This component belongs to the Fairview Microwave waveguide attenuator series. It serves as a passive RF element for signal management. The product targets applications requiring stable attenuation in millimeter-wave frequencies. It complements other waveguide components in complete RF chains.

Replacement Considerations

No public confirmed substitute part numbers are available.
