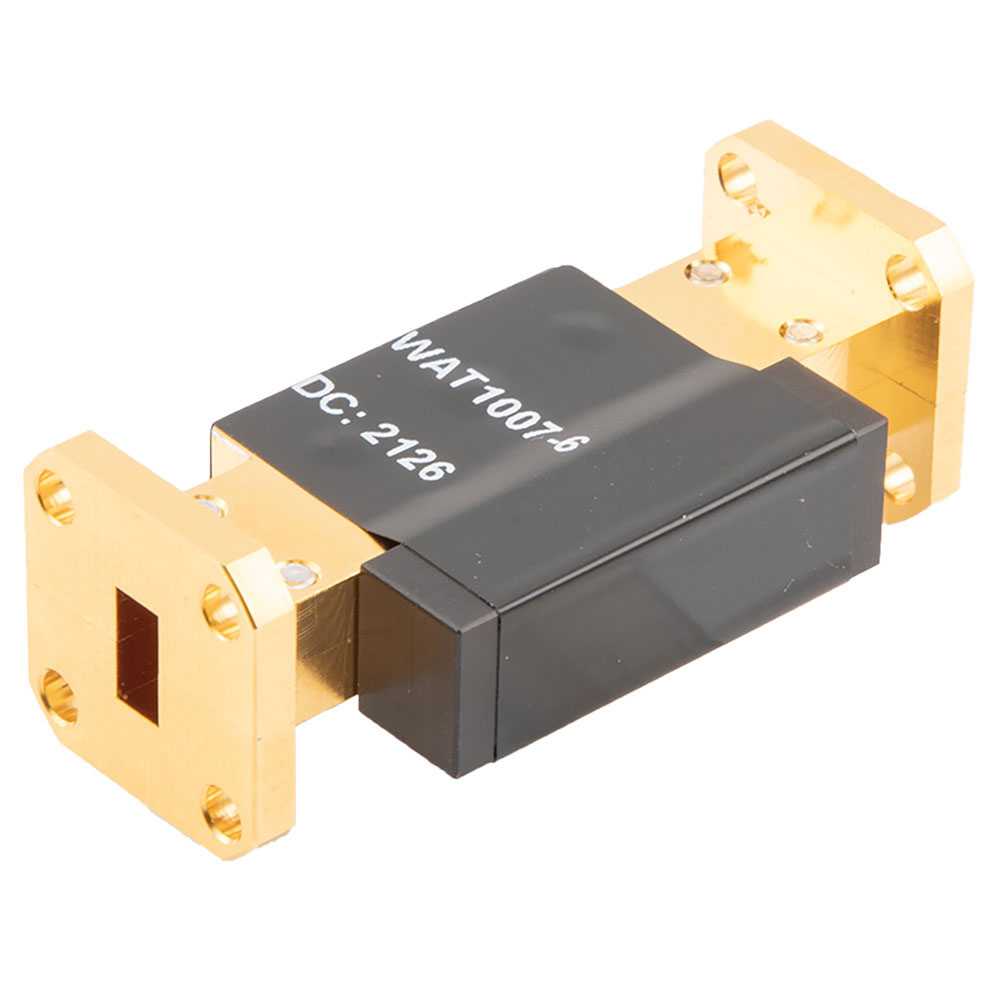

FMWAT1007-6

$980.56

Description：WG FIXED ATTN WR-28 26.5-40 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:5cd60fee0aec Category: Attenuators Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：WG FIXED ATTN WR-28 26.5-40 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Attenuation Value：6dB
Frequency Range：26.5 GHz ~ 40 GHz
Power (Watts)：5W
Impedance：-
Grade：-
Qualification：-
Package / Case：Module

Download product information

FMWAT1007-6

Overview

The FMWAT1007-6 is a fixed waveguide attenuator manufactured by Fairview Microwave. It operates within the WR-28 waveguide frequency range, providing a precise attenuation value of 6 dB. The device is designed for high-power applications with an average power handling capacity of 5 watts. It features a robust construction utilizing the standard Ug-599/U cover flange interface to ensure secure and reliable connections in RF test setups. This component serves as a passive element for signal level reduction in microwave systems.

Feature Summary

Provides fixed 6 dB attenuation in WR-28 waveguide band
Handles up to 5 watts of average RF power
Utilizes standard Ug-599/U cover flange for mounting

Applications

Microwave signal level control
RF test and measurement equipment
Waveguide system calibration

Procurement Notes

Verify the specific model suffix matches the required attenuation value and waveguide size. Confirm that the Ug-599/U flange compatibility aligns with existing system hardware. Ensure the 5-watt average power rating meets the operational requirements of the intended application environment before finalizing procurement.

Selection Notes

Select this component when a fixed 6 dB loss is required in the WR-28 band. Consider the 5-watt power limit against peak and average signal levels. Evaluate the physical dimensions and flange type for integration into the specific waveguide assembly or test fixture layout.

Part Context

This part belongs to the FMWAT1007 series of waveguide attenuators from Fairview Microwave. The series includes variants with different attenuation values such as 3 dB and 10 dB, all sharing the same WR-28 form factor and power handling characteristics. These components are standardized for use in general microwave engineering applications requiring precise signal attenuation.

Replacement Considerations

Direct substitutes include other FMWAT1007 series models like FMWAT1007-3 or FMWAT1007-10 if different attenuation values are needed. Cross-brand replacements must match the WR-28 waveguide size, Ug-599/U flange interface, and 5-watt power rating.
