FMWGA3203

$3,747.95

Description：WG LOW NOISE AMP WR-19 40-60 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:c9b8f67d36df Category: RF Amplifiers Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：WG LOW NOISE AMP WR-19 40-60 GHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency：40GHz ~ 60GHz
P1dB：14.5dBm
Gain：36dB
Noise Figure：4.6dB
RF Type：General Purpose
Voltage - Supply：6V ~ 12V
Current - Supply：85mA
Test Frequency：-
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FMWGA3203

Overview

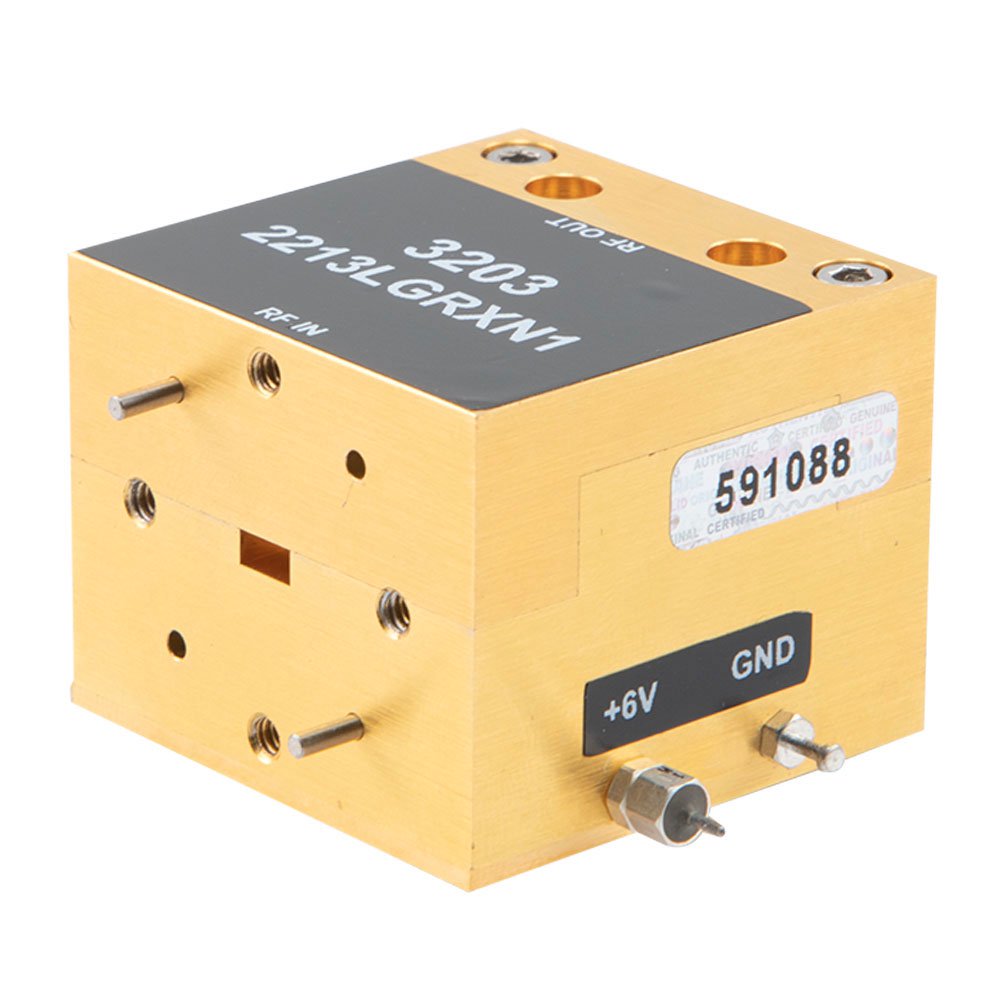

The FMWGA3203 is a WR-19 waveguide low noise amplifier designed for the U Band, operating within a frequency range of 40 GHz to 60 GHz. It features a gain of 38 dB and a P1dB compression point of 9.5 dBm. The device utilizes a UG-383/U-M flange interface and requires an operating supply voltage between 6 V and 12 V with a current draw of 85 mA.

Feature Summary

Operates as a low noise amplifier in the U Band frequency spectrum
Utilizes WR-19 waveguide architecture for signal processing
Incorporates standard UG-383/U-M flange mounting configuration

Applications

U Band radar systems
Satellite communication ground stations
Electronic warfare signal analysis

Procurement Notes

Verify the specific datasheet revision and flange tolerance requirements against system mechanical constraints. Confirm that the power supply specifications align with the operational environment's electrical standards before integration into the final assembly design.

Selection Notes

Select this component when high-frequency amplification in the U Band is required. Ensure the system can accommodate the specific waveguide dimensions and flange type. Compare performance metrics against alternative models like FMWGA3202 or FMWGA3205 if different frequency bands are needed.

Part Context

This model belongs to Fairview Microwave's line of waveguide RF amplifiers. It complements other products such as the FMWGA3202 (Q Band) and FMWGA3205 by providing specialized coverage in the adjacent U Band spectrum for comprehensive millimeter-wave solution portfolios.

Replacement Considerations

FMWGA3202 operates in the Q Band (33-50 GHz). FMWGA3205 operates in the Q Band (33-50 GHz). Direct substitution is not possible due to differing frequency ranges.
