FMWGA3217

Overview

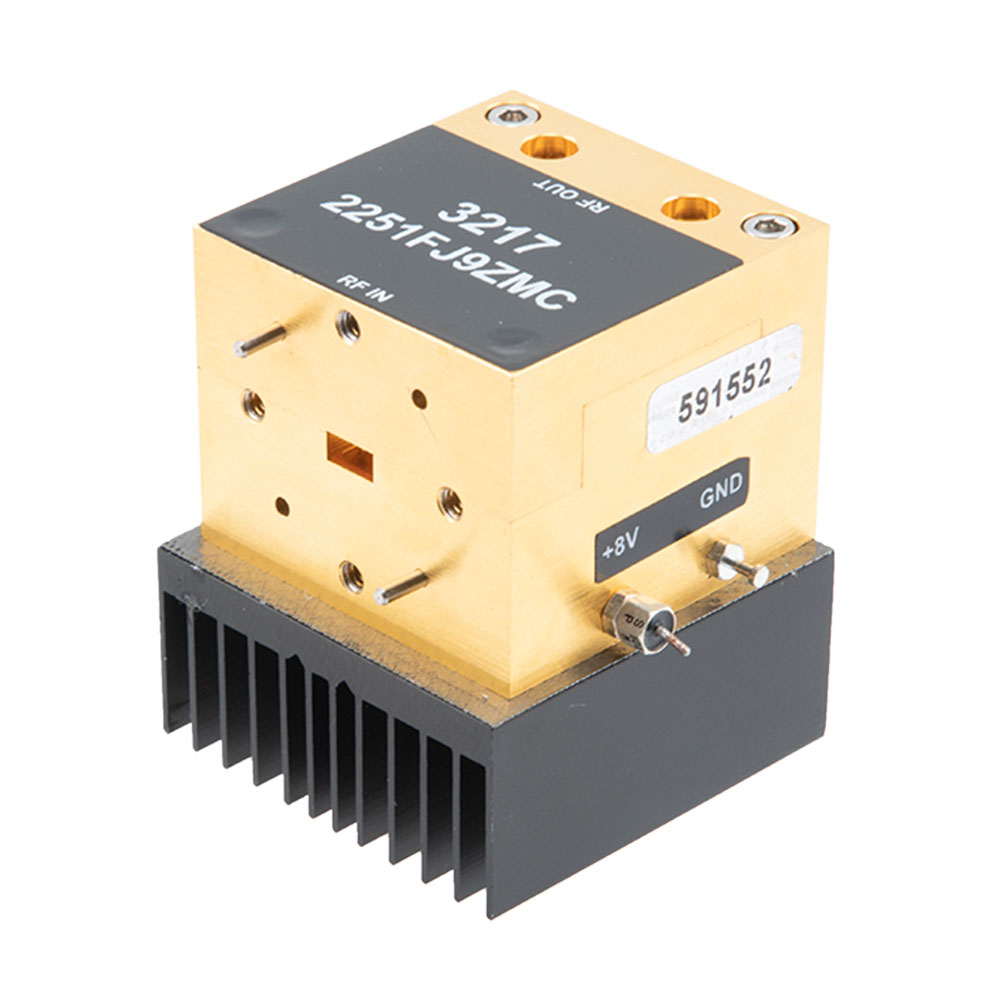

The FMWGA3217 is a WR-22 waveguide power amplifier designed for the Q band, operating within a frequency range of 33 GHz to 50 GHz. It provides a nominal gain of 45 dB with a saturated output power (Psat) of 20 dBm and a 1 dB compression point (P1dB) of 18 dBm. The device requires a DC supply voltage between 5 V and 10 V, drawing a current of 220 mA. It features a UG-383/U flange interface and is packaged individually in a bag.

Feature Summary

• Utilizes WR-22 waveguide structure for high-frequency signal amplification
• Provides high gain performance suitable for millimeter-wave applications
• Features standardized UG-383/U flange for mechanical integration

Applications

• Millimeter-wave communication systems
• Test and measurement equipment requiring Q-band signals
• Radar system components

Procurement Notes

Verify the specific datasheet version and electrical test reports before procurement. Confirm that the UG-383/U flange dimensions match your waveguide assembly requirements. Ensure your power supply meets the 5 V to 10 V voltage range and can provide at least 220 mA continuous current. Check regional availability as distribution may be restricted in certain areas.

Selection Notes

Select this component when a fixed-gain, high-power solution is needed for the 33 GHz to 50 GHz spectrum. Consider the physical size and weight constraints associated with waveguide packaging compared to coaxial alternatives. Evaluate thermal management needs given the 220 mA current draw and RF output power levels. Ensure compatibility with existing WR-22 waveguide infrastructure.

Part Context

This part belongs to Fairview Microwave's portfolio of RF amplifiers and wireless integrated circuits. It is categorized under power amplifiers within the broader radio frequency interconnects and components market. The product represents specialized hardware for high-frequency signal generation and conditioning tasks.

Replacement Considerations

No public substitute part numbers are documented for this specific model. Waveguide amplifiers often require custom matching; verify if alternative manufacturers offer equivalent WR-22 Q-band specifications before considering substitution.
