FMWGA3219

Overview

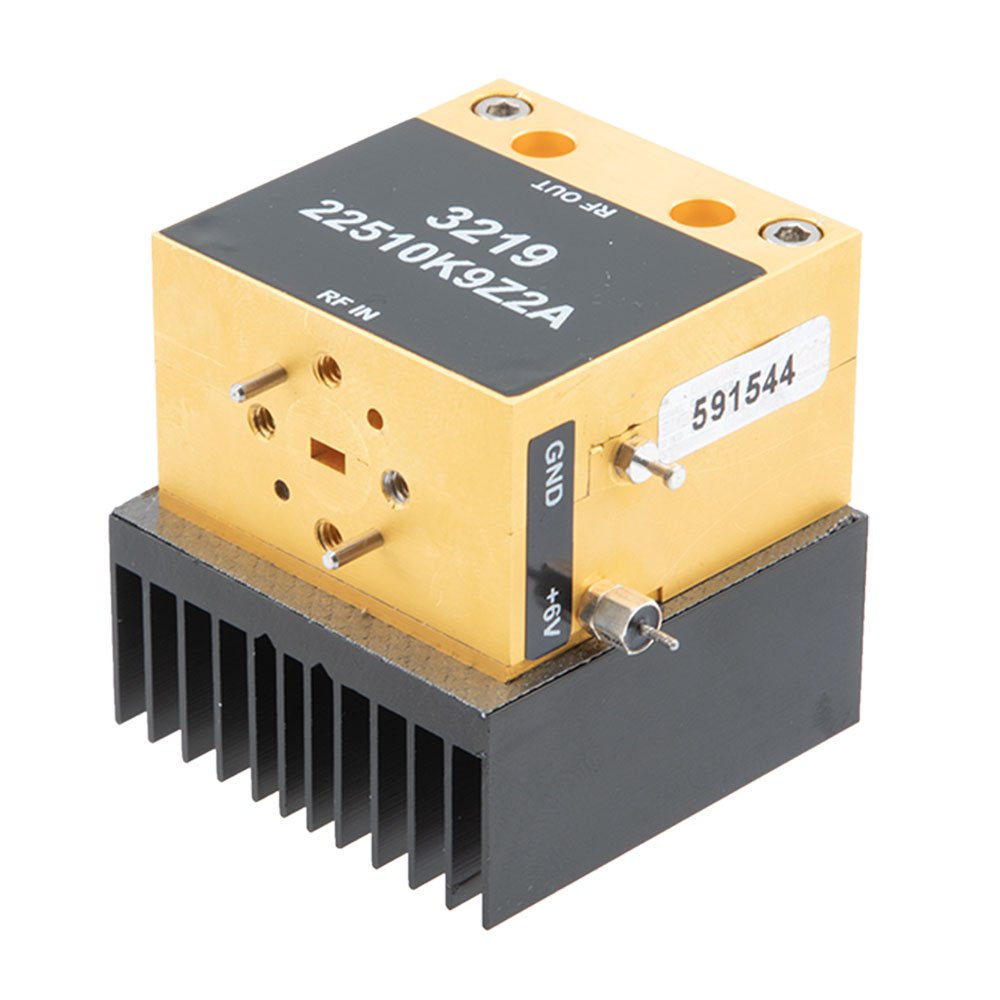

The FMWGA3219 is a Q-band RF power amplifier manufactured by Fairview Microwave. It operates within a frequency range of 50 GHz to 75 GHz, providing a small signal gain of 34 dB. The device delivers an output power between 22 dBm and 24 dBm. It utilizes UG-383/U flanges for waveguide interfacing. This component is designed for high-frequency applications requiring stable amplification in the millimeter-wave spectrum.

Feature Summary

• Operates in the Q-band frequency spectrum from 50 GHz to 75 GHz
• Provides consistent 34 dB small signal gain across the operating band
• Features UG-383/U waveguide flange interfaces for secure mounting
• Delivers output power ranging from 22 dBm to 24 dBm

Applications

• Millimeter-wave radar systems
• High-frequency communication links
• Test and measurement instrumentation
• Satellite ground station equipment

Procurement Notes

Verify the specific model suffix and flange type against system requirements before ordering. Confirm that the receiving equipment supports the UG-383/U interface standard. Ensure environmental conditions match the operational specifications. Check current availability status as supply levels may fluctuate. Validate compatibility with existing waveguide components.

Selection Notes

Select this amplifier when operation within the 50 GHz to 75 GHz range is required. Consider the 34 dB gain specification for signal chain design. Evaluate the 22 to 24 dBm output power capability against load requirements. Ensure mechanical integration with UG-383/U flanges is feasible. Compare performance metrics against alternative Q-band solutions.

Part Context

Fairview Microwave produces specialized RF modules for demanding high-frequency environments. The FMWGA3219 belongs to their line of waveguide-based amplifiers. These components address needs in sectors requiring reliable millimeter-wave signal processing. The product represents a solution for integrating active amplification into rigid waveguide systems.

Replacement Considerations

Direct substitutes are not explicitly listed in public documentation. Verify functional equivalence regarding frequency range, gain, and output power. Check mechanical compatibility with UG-383/U flanges. Assess thermal management requirements for alternative devices.
