FMWGN1010

Overview

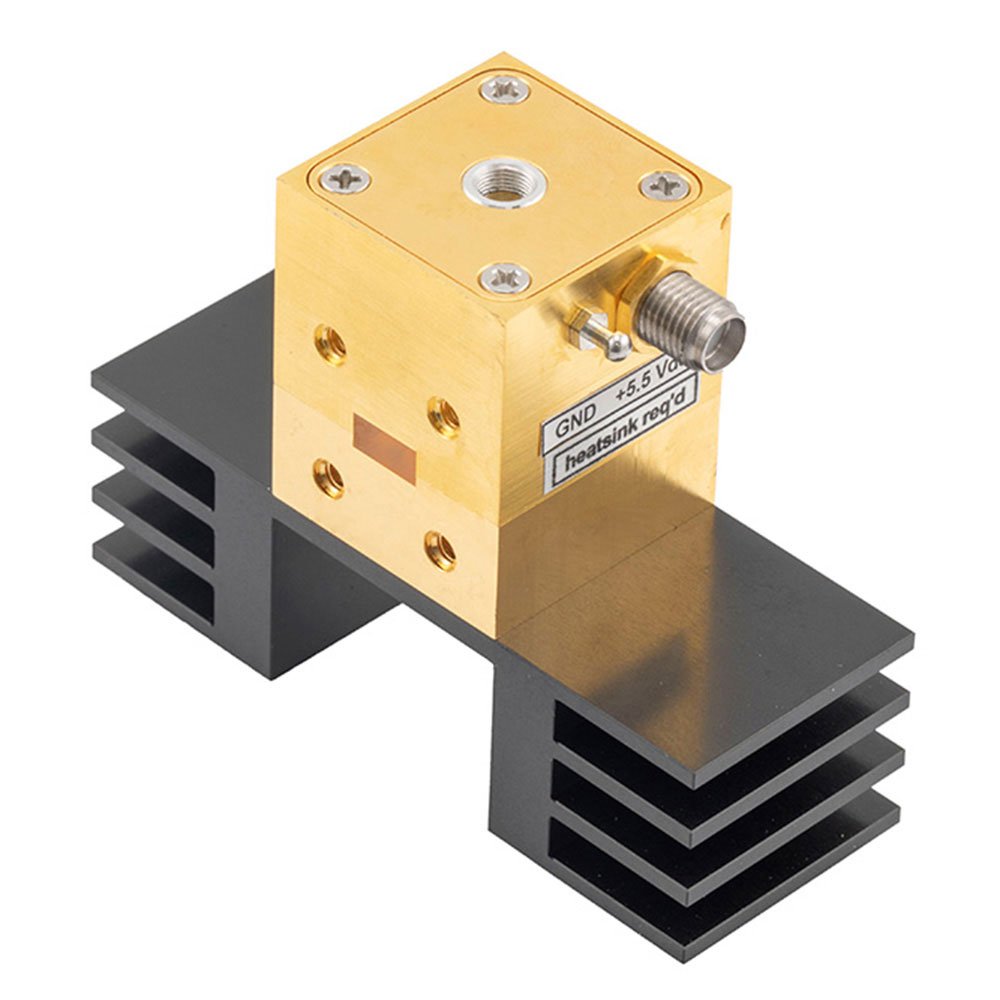

The FMWGN1010 is a professional Gunn oscillator manufactured by Fairview Microwave, designed for Ka-band applications. It operates at a center frequency of 35 GHz with a tuning range of 3 GHz. The device features -95 dBc/Hz phase noise and utilizes a WR-28 waveguide interface. Key electrical specifications include a maximum supply voltage of 5 V and a frequency stability of -0.4 MHz/°C. Physical dimensions are 25.4 mm in length, 25.4 mm in width, and 31.75 mm in height.

Feature Summary

• Utilizes WR-28 waveguide architecture for high-frequency signal generation
• Provides stable oscillation with specified phase noise characteristics
• Engineered for operation within defined thermal stability limits

Applications

• Ka-band communication systems
• Microwave test and measurement equipment
• Signal source generation modules

Procurement Notes

Verify component authenticity through official manufacturer channels or authorized distributors. Confirm that the received unit matches the specific model number FMWGN1010 and includes relevant documentation such as datasheets and calibration certificates if applicable. Ensure handling procedures comply with electrostatic discharge precautions typical for sensitive RF components. Review current availability status directly with suppliers as distribution may vary by region.

Selection Notes

Select this component when a fixed-frequency Gunn oscillator is required for Ka-band operations around 35 GHz. Consider the WR-28 waveguide interface compatibility with existing system architecture. Evaluate the -95 dBc/Hz phase noise specification against system sensitivity requirements. Verify that the 5 V supply constraint aligns with available power resources and that the physical footprint fits within the designated enclosure space.

Part Context

Fairview Microwave specializes in providing high-quality RF, microwave, and millimeter-wave components. The FMWGN1010 belongs to their portfolio of professional oscillators, specifically utilizing Gunn diode technology. This product line supports various industrial and scientific applications requiring reliable high-frequency signal generation without the complexity of more advanced synthesizer architectures.

Replacement Considerations

No public confirmed substitute part numbers are documented for this specific component.
