FMWGN1012

Overview

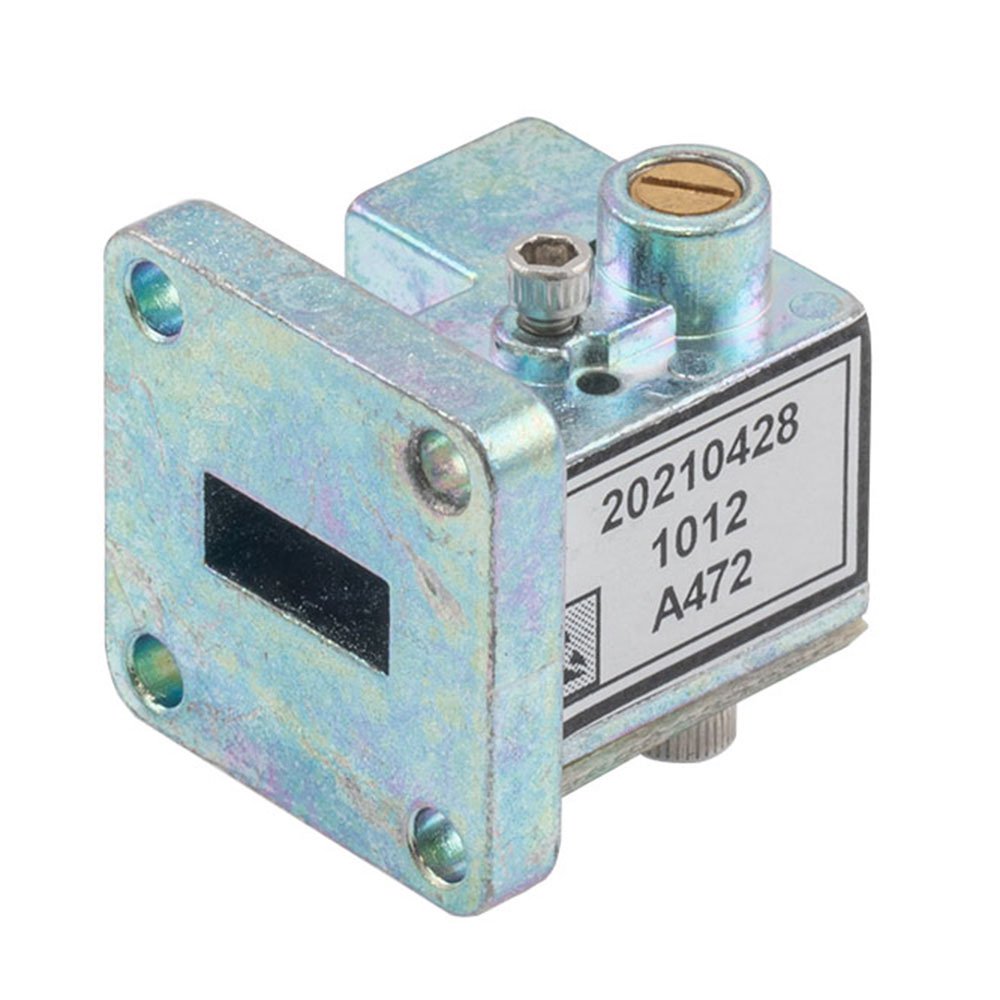

The FMWGN1012 is a Gunn oscillator manufactured by Fairview Microwave, designed for Ka-band applications. It operates at a center frequency of 24.125 GHz with a tuning range of 3 GHz. The device features a WR-28 waveguide interface and utilizes the UG-599/U connector standard. It includes an integrated heatsink for thermal management. Key electrical specifications include a maximum supply voltage of 6 V and a frequency stability of -0.8 MHz/°C. The unit supports operation within a temperature range of -40°C to +50°C.

Feature Summary

• Utilizes Gunn diode technology for high-frequency signal generation
• Incorporates WR-28 waveguide interface for low-loss transmission
• Features integrated heatsink for efficient thermal dissipation
• Provides stable oscillation with specified frequency tolerance

Applications

• Ka-band radar systems
• Microwave communication links
• Test and measurement instrumentation
• Electronic warfare equipment

Procurement Notes

Verify component authenticity through authorized Fairview Microwave distributors or certified partners. Request official datasheets and test reports to confirm performance parameters match application requirements. Ensure proper handling procedures are followed due to sensitive RF components. Check for specific packaging requirements to prevent damage during transit. Confirm regulatory compliance documentation is available for integration into final products.

Selection Notes

Select this model when a fixed-frequency Gunn oscillator in the Ka-band is required. Consider the WR-28 waveguide interface compatibility with existing system architecture. Evaluate the -0.8 MHz/°C frequency stability against environmental conditions. Verify that the 6 V maximum supply voltage aligns with available power rails. Assess the thermal requirements based on the integrated heatsink design.

Part Context

This component belongs to the Fairview Microwave professional oscillator series, specifically utilizing Gunn diode technology. It is categorized under RF oscillators and modules. The product line focuses on high-frequency performance with waveguide interfaces. It serves as a core signal source for microwave systems requiring precise frequency generation.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMWGN1012. Direct replacement requires matching the WR-28 waveguide interface, 24.125 GHz center frequency, and UG-599/U connector type. Any alternative must meet identical frequency stability and thermal specifications.
