FMWRD750TR1000

Overview

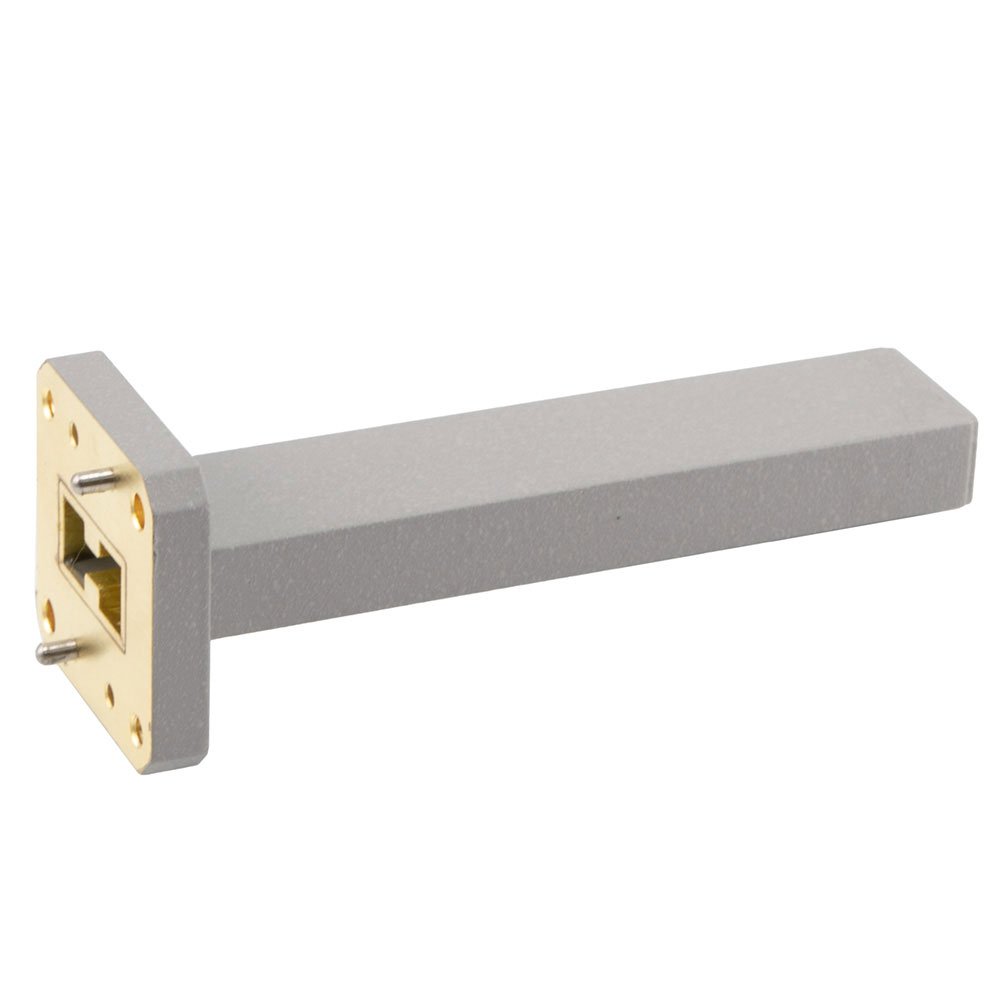

The FMWRD750TR1000 is a double ridge waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 7.5 GHz to 18 GHz and supports an average power handling capacity of 1 Watt. The component features a brass body material and utilizes UG-style flanges for secure mounting. Designed for general-purpose RF applications, this termination provides reliable signal absorption in microwave systems.

Feature Summary

• Double ridge waveguide design for extended bandwidth operation
• Brass construction for durability and thermal stability
• UG-style flange interface for standardized mounting

Applications

• Microwave system testing and measurement
• Signal source isolation
• Waveguide circuit load termination

Procurement Notes

Verify the specific flange type and mating connector requirements against your system specifications before procurement. Confirm that the 1-watt average power rating aligns with your operational thermal limits. Ensure compatibility with standard UG-series waveguide interfaces to guarantee proper mechanical fit and electrical performance.

Selection Notes

Select this termination when a broadband solution covering 7.5 to 18 GHz is required. Consider the brass material properties for environmental resistance. Evaluate the physical dimensions and weight constraints relative to your assembly space. Compare against other waveguide terminations if higher power handling or different frequency ranges are necessary.

Part Context

This component belongs to Fairview Microwave's line of RF terminators designed for waveguide applications. It serves as a passive device to absorb electromagnetic energy, preventing reflections in high-frequency circuits. The product is part of a broader portfolio supporting microwave and millimeter-wave interconnect solutions.
