Product Detailed Parameters
- Description：WAVEGUIDE SEC WR-51 15GHZ-22GHZ
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：-
- Frequency：-
- RF Type：-
- Secondary Attributes：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

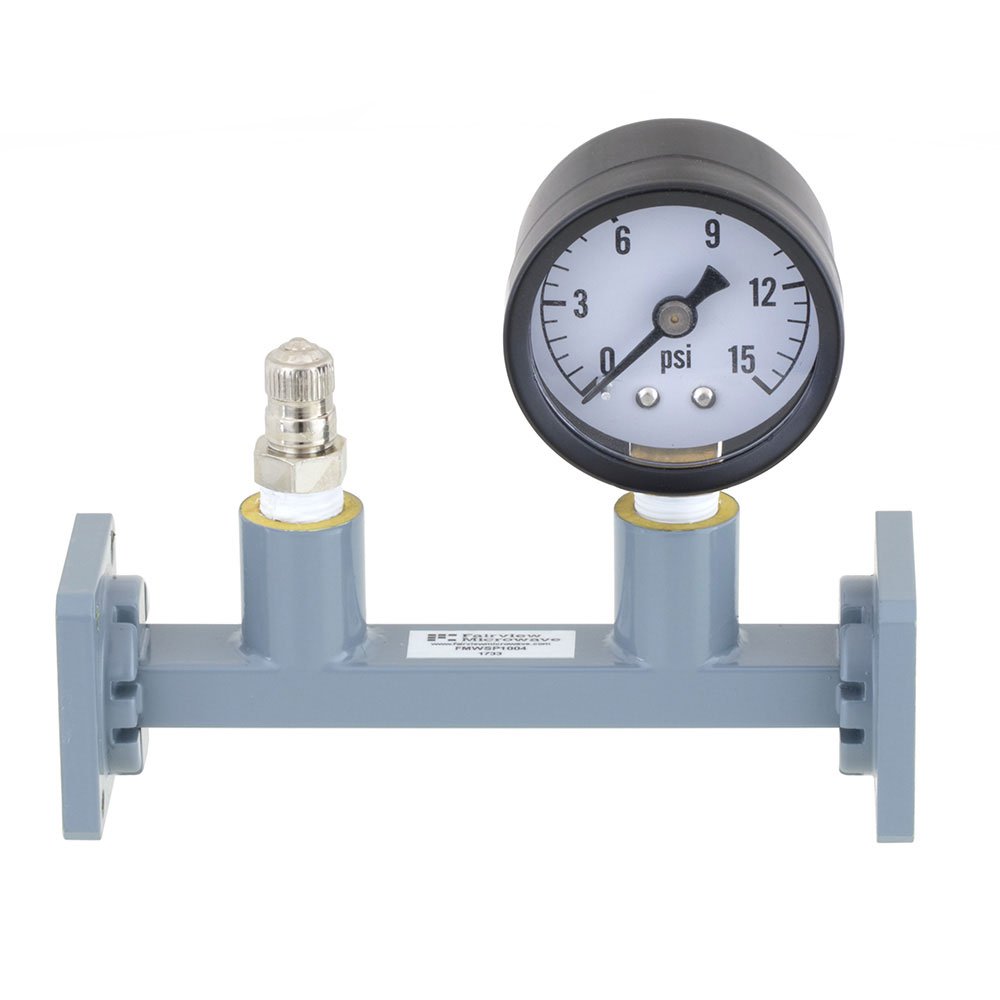

The FMWSP1004 is a WR-51 waveguide section manufactured by Fairview Microwave. It operates within the frequency range of 15 GHz to 22 GHz. The component is designed for integration into microwave transmission systems requiring specific waveguide dimensions and electrical characteristics. This part serves as a passive structural element for signal propagation in high-frequency applications.
Feature Summary
- Constructs a standardized WR-51 waveguide segment for precise dimensional compliance
- Supports signal transmission across the 15 GHz to 22 GHz operational band
- Designed for integration into rigid waveguide circuit assemblies
Applications
- Microwave test and measurement setups
- Radar system waveguide networks
- Satellite communication ground stations
Procurement Notes
Verify the exact physical length and flange specifications against the official datasheet before procurement, as waveguide sections are dimensionally critical. Confirm that the WR-51 standard matches your existing system interface requirements. Check for surface finish specifications if low insertion loss is required for your specific application environment.
Selection Notes
Select this component when a fixed-length WR-51 waveguide transition or extension is required between 15 GHz and 22 GHz. Ensure compatibility with adjacent waveguide components regarding flange types and internal dimensions. Consider thermal expansion properties if the assembly operates under varying temperature conditions.
Part Context
This component belongs to Fairview Microwave's waveguide interconnect portfolio. It complements other passive RF components such as isolators, terminations, and adapters. The product line focuses on providing reliable, precision-engineered solutions for high-frequency microwave engineering challenges.
Replacement Considerations
No public substitute part numbers are documented for this obsolete item. Users must verify mechanical fit and electrical performance with alternative WR-51 waveguide sections from other manufacturers if sourcing directly from Fairview Microwave is not possible.
