FMWTR1002

Overview

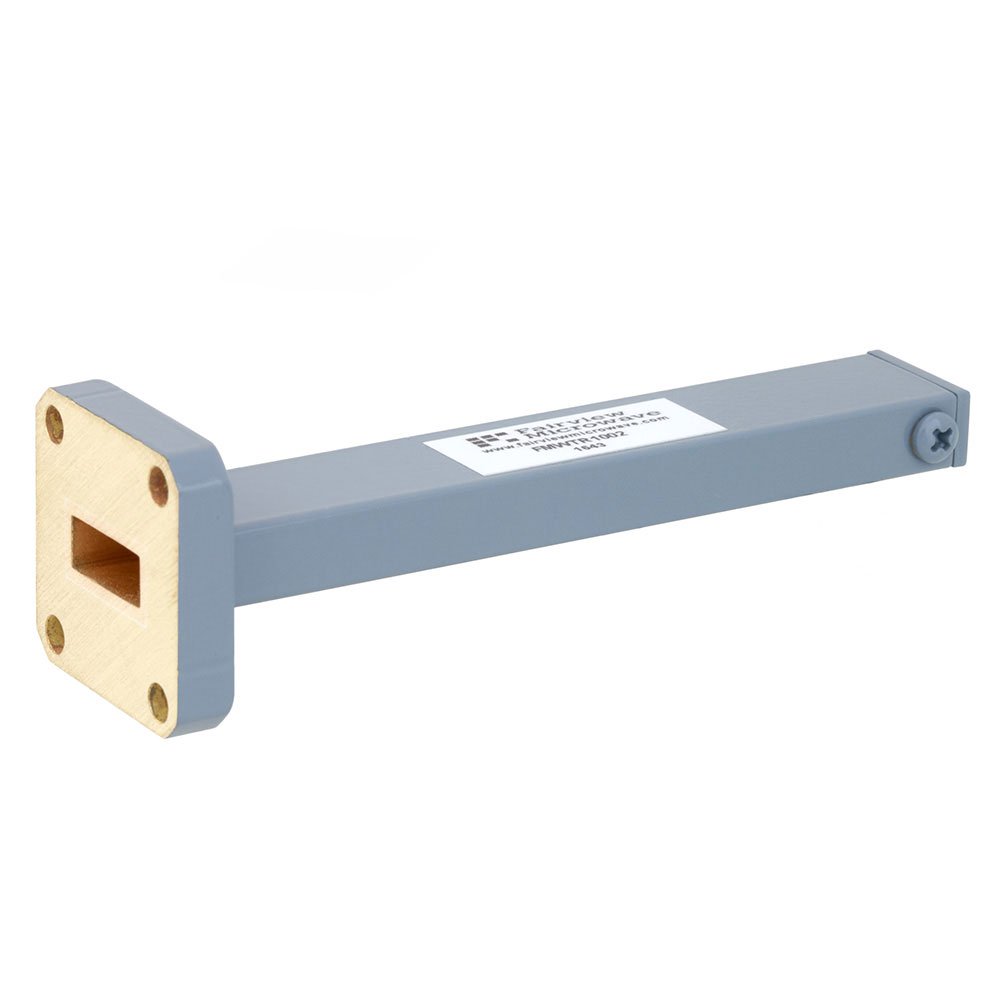

The FMWTR1002 is a WR-42 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 18 GHz to 26.5 GHz and supports an average power rating of 1 Watt. The component is designed for commercial grade applications and utilizes a module package configuration. This termination serves as a signal conditioning element, providing impedance matching and absorption for microwave signals in the specified band.

Feature Summary

• Provides precise signal termination for WR-42 waveguide systems
• Operates effectively across the 18 GHz to 26.5 GHz frequency spectrum
• Engineered for commercial grade reliability and performance

Applications

• Microwave test and measurement setups
• Radar system development and testing
• Communication link termination

Procurement Notes

Verify current availability status as the product may be listed as obsolete or discontinued. Confirm specific flange types and mounting requirements with the manufacturer prior to ordering. Ensure that the application environment remains within the specified commercial grade temperature limits and power ratings to maintain component integrity.

Selection Notes

Select this component when a reliable termination solution is required for WR-42 waveguide interfaces. Consider the 18-26.5 GHz operational bandwidth and 1 Watt power handling capacity against system requirements. Evaluate compatibility with existing waveguide hardware and ensure the module form factor fits the intended assembly constraints.

Part Context

Fairview Microwave specializes in RF, microwave, and millimeter-wave components. The FMWTR1002 belongs to their signal conditioning portfolio, specifically addressing waveguide termination needs. This part complements other interconnects and passive components offered by the manufacturer for high-frequency electronic systems.

Replacement Considerations

Check for direct substitutes from Fairview Microwave or other suppliers offering WR-42 compatible terminations. Verify that alternative parts match the 18-26.5 GHz frequency range and 1 Watt power rating. Ensure mechanical interface compatibility with existing waveguide assemblies before substitution.
