FMWTR1003

Overview

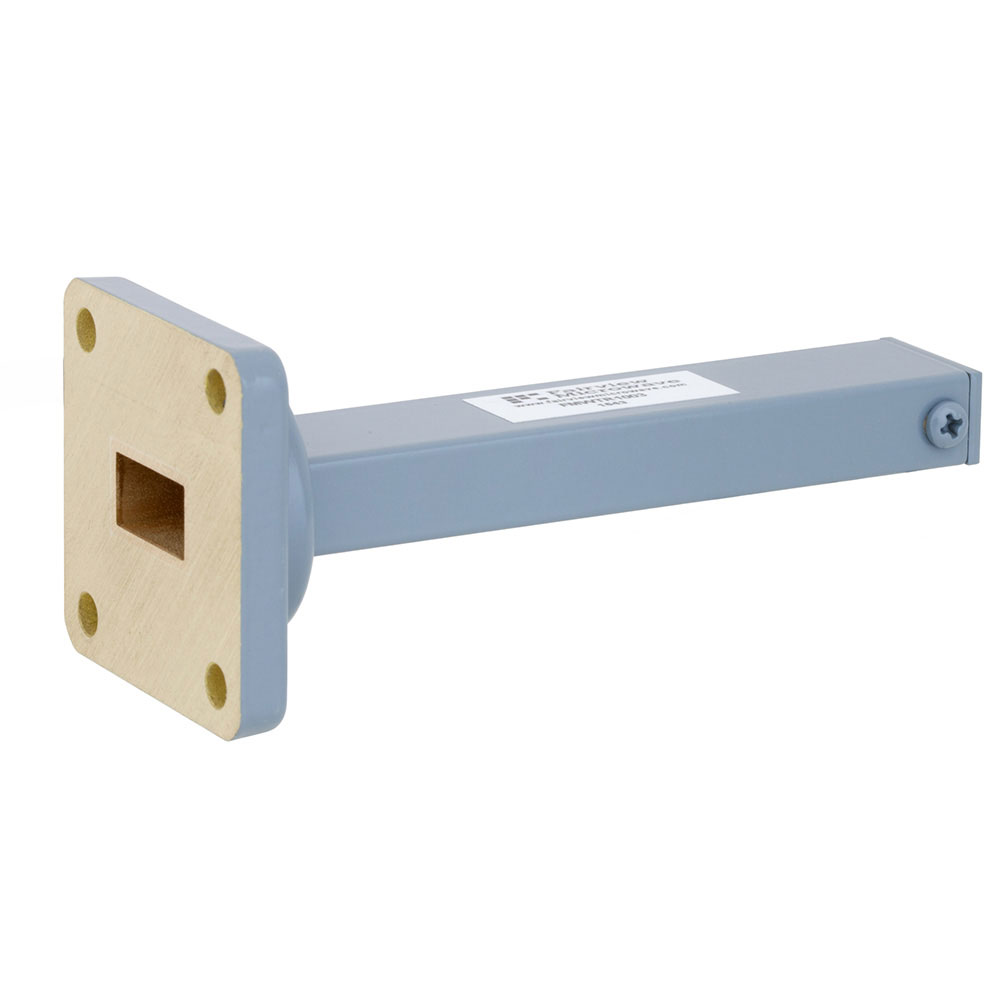

The FMWTR1003 is an RF IC termination module manufactured by Fairview Microwave, designed for radar applications. It operates within a frequency range of 15 GHz to 22 GHz and supports a power handling capacity of 1 Watt. This component serves as a specialized termination solution for high-frequency systems requiring precise impedance matching and signal absorption within the specified microwave band.

Feature Summary

• Provides reliable signal termination for radar systems
• Operates effectively within the 15 GHz to 22 GHz frequency spectrum
• Engineered for high-power handling up to 1 Watt

Applications

• Radar system terminations
• Microwave circuit testing
• High-frequency signal absorption

Procurement Notes

Verify the specific datasheet for the FMWTR1003 to confirm current availability status and detailed electrical specifications. Ensure compatibility with existing system requirements regarding frequency range and power handling before procurement. Contact authorized distributors for accurate supply chain information and lead times.

Selection Notes

Select this module when a termination is required for radar applications operating between 15 GHz and 22 GHz. Consider the 1 Watt power rating to ensure it meets the system's maximum power demands. Verify interface compatibility and thermal management needs for the intended installation environment.

Part Context

Fairview Microwave specializes in providing a wide range of RF, microwave, and mmWave components. The FMWTR1003 falls under their category of RF miscellaneous ICs and modules, specifically designed for termination functions in high-frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available for the FMWTR1003. Users should consult official documentation or contact the manufacturer directly for potential alternatives or cross-reference information.
