FMWTR1004

Overview

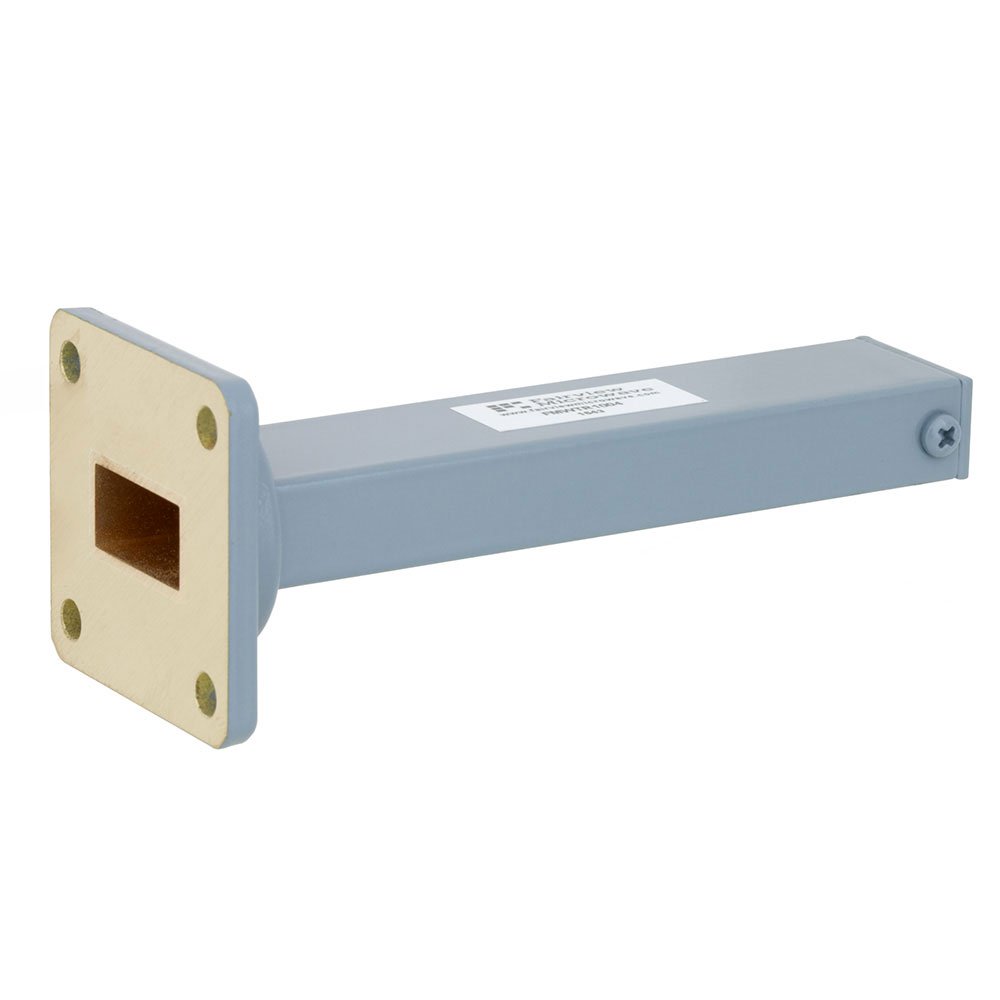

The FMWTR1004 is a waveguide termination manufactured by Fairview Microwave. It operates within the frequency range of 12.4 GHz to 18 GHz. The component supports an average power handling capacity of 1.5 Watts. This device is designed for use in microwave and RF applications requiring signal absorption.

Feature Summary

• Provides effective signal termination within the specified microwave frequency band
• Supports continuous average power handling for stable operation
• Constructed as a dedicated waveguide component

Applications

• Microwave system load testing
• Signal absorption in waveguide networks
• RF measurement setups

Procurement Notes

Verify the specific frequency range and power rating against your system requirements before ordering. Confirm that the waveguide interface matches your existing infrastructure. Check current availability status with authorized distributors, as supply levels may vary. Ensure proper handling procedures are followed during installation to maintain component integrity.

Selection Notes

Select this component when a fixed load is required for the 12.4 to 18 GHz band. Consider the 1.5 Watt average power limit for thermal management. Evaluate compatibility with standard waveguide dimensions. Compare with other terminations if higher power or different frequency ranges are needed.

Part Context

Fairview Microwave provides a wide range of RF and microwave components. The FMWTR1004 belongs to their waveguide termination series. These components are used to absorb electromagnetic energy in waveguide systems. The manufacturer focuses on high-quality passive components for various communication and test applications.
