FMWTR1006

Overview

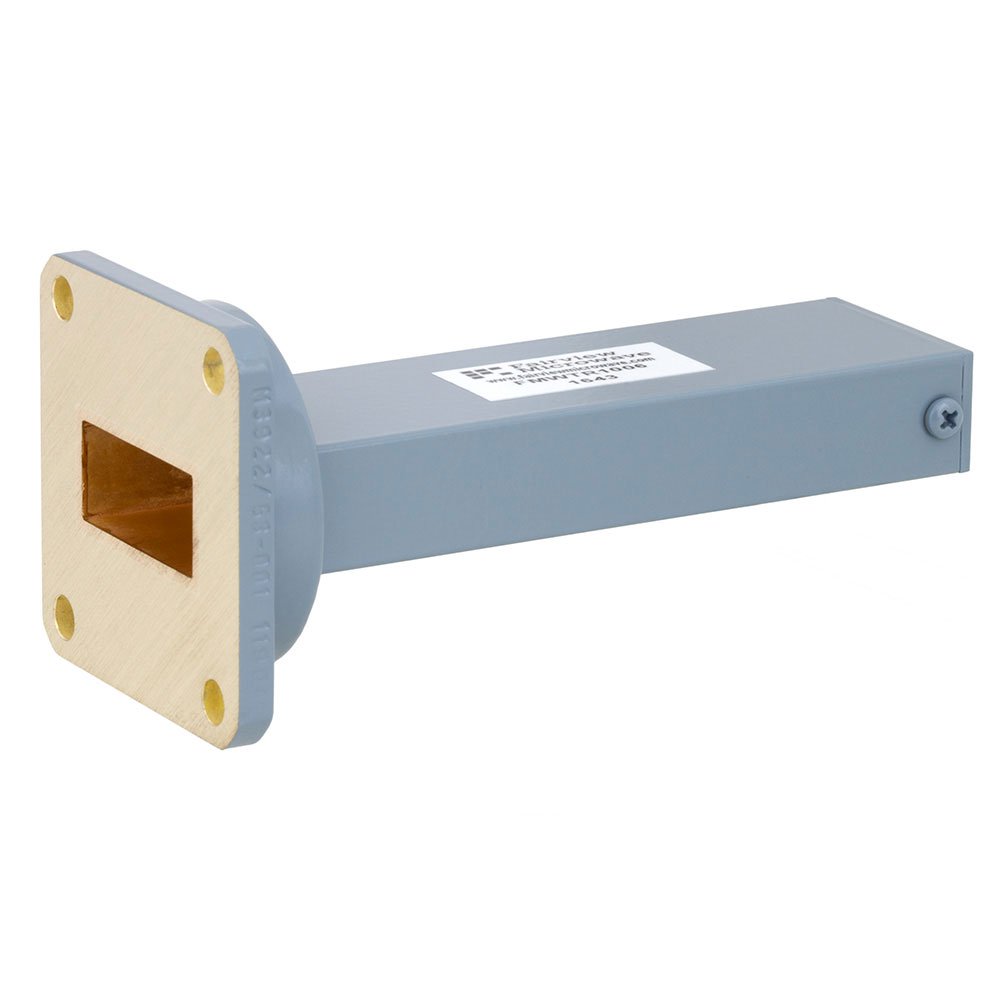

The FMWTR1006 is a commercial-grade RF terminator designed for WR-90 waveguide applications. It operates within a frequency range of 8.2 GHz to 12.4 GHz and supports a power rating of 4 Watts. The device features a brass body construction, ensuring durability in standard microwave environments. This termination load is engineered to absorb RF energy effectively, providing impedance matching and signal reflection reduction for waveguide systems operating in the specified Ku-band frequencies.

Feature Summary

• Designed specifically for WR-90 waveguide interfaces
• Utilizes brass body material for structural integrity
• Provides reliable RF energy absorption at 4 Watts

Applications

• Waveguide system load testing
• Signal reflection reduction in Ku-band circuits
• RF measurement equipment terminations

Procurement Notes

Verify that the application environment remains within the 8.2 GHz to 12.4 GHz operational limits and does not exceed the 4 Watt power rating. Confirm compatibility with WR-90 waveguide dimensions and flange standards before integration. Ensure handling procedures protect the precision internal components from physical damage during installation.

Selection Notes

Select this component when a fixed load is required for WR-90 waveguide lines. It is suitable for commercial-grade applications where moderate power dissipation is necessary. Consider thermal management requirements if continuous operation near the maximum power rating is expected. Verify that the brass construction meets the environmental conditions of the intended deployment.

Part Context

Fairview Microwave manufactures specialized RF interconnects and passive components for microwave engineering. The FMWTR1006 belongs to their line of waveguide terminators, which are essential for maintaining signal integrity in high-frequency transmission systems. These components support engineers in designing stable microwave networks by providing controlled impedance loads.
