FMWTR1008

Overview

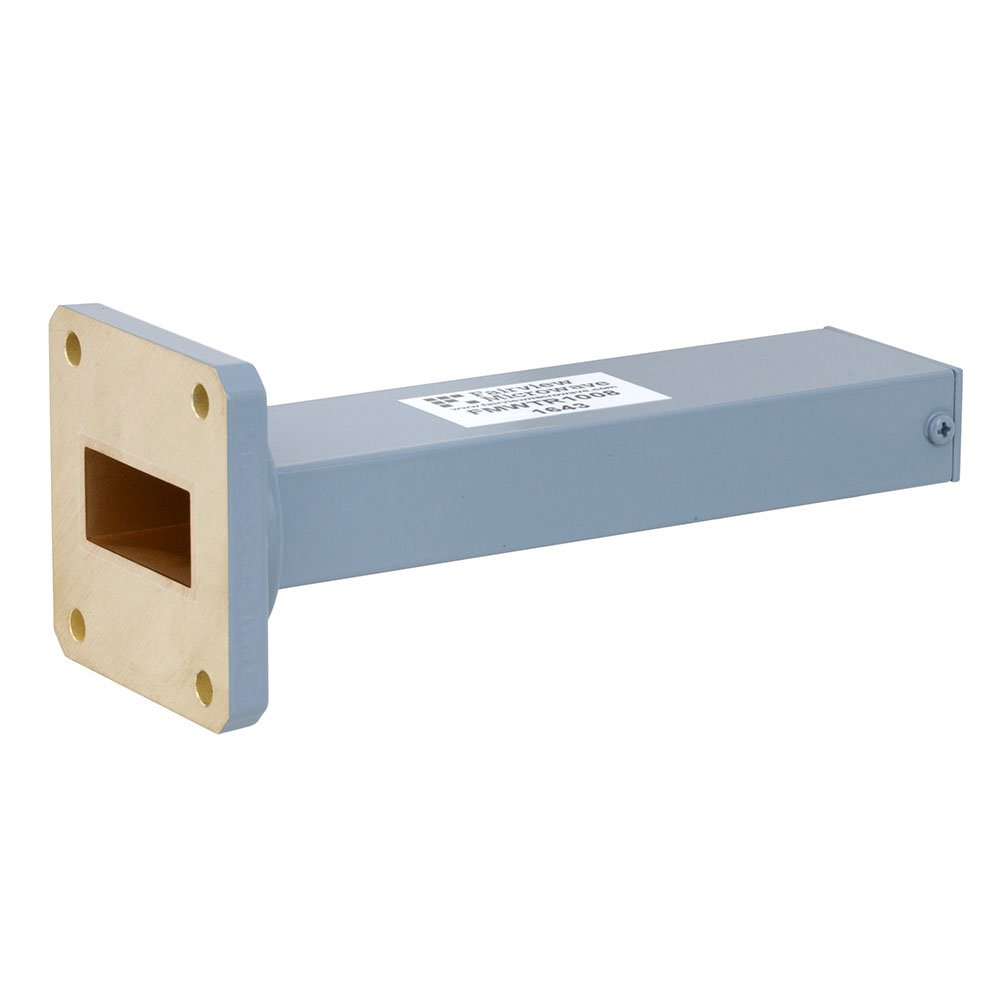

The FMWTR1008 is a commercial-grade WR-112 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 7.05 GHz to 10 GHz and supports an average power handling capacity of 5 Watts. This component is designed for use in microwave systems requiring reliable signal absorption.

Feature Summary

• Commercial-grade construction suitable for general RF applications
• WR-112 waveguide interface standard
• Operates from 7.05 GHz to 10 GHz
• Handles 5 Watts average power

Applications

• Microwave system testing
• Signal absorption
• Waveguide circuit termination

Procurement Notes

Verify the specific WR-112 flange configuration required for your installation before ordering. Confirm that the 5-watt average power rating aligns with your system's thermal management capabilities. Ensure the 7.05 GHz to 10 GHz frequency range covers your operational spectrum. Check for any specific mounting hardware requirements associated with the waveguide interface.

Selection Notes

Select this model when a commercial-grade solution is sufficient for frequencies between 7.05 GHz and 10 GHz. Consider the 5-watt power limit against peak and average system loads. Evaluate if the WR-112 size fits your physical constraints. Compare against higher-power or military-grade alternatives if environmental conditions exceed commercial specifications.

Part Context

Fairview Microwave provides a range of RF interconnect components, including adapters, cables, and terminations. The FMWTR1008 belongs to their waveguide termination series, supporting high-frequency applications. These products are intended for integration into larger microwave and radar systems requiring precise impedance matching and signal control.

Replacement Considerations

Public confirmed substitute part numbers: None.
